Speed Control Deactivator Switch - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR CARS, INC.

Remove the driver side instrument panel lower panel.
Reposition the driver seat to its maximum rearward position.

Courtesy of JAGUAR CARS, INC.

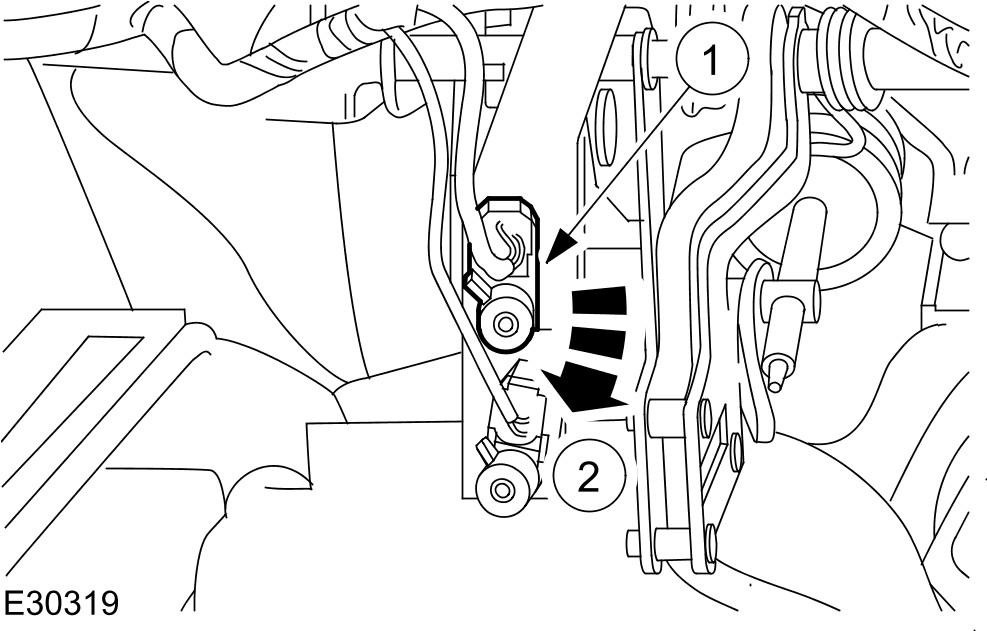

Remove the speed control deactivator switch.
1. Disconnect the speed control deactivator switch electrical connector.
2. Remove the speed control deactivator switch.
