Adaptive speed control

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

On vehicles for certain markets, an adaptive speed control system is installed as an option. In addition to the normal vehicle speed control functions, this system enables a preset distance to be maintained behind a moving vehicle immediately ahead, without driver intervention.

Automatic Switch Off - Vehicles with Adaptive Speed Control

The adaptive speed control will disengage, but not clear the memory when:

the CANCEL button is activated.
the brake pedal is applied.
the vehicle speed falls below 26Km/h (16mph).
neutral, park or reverse gear positions are selected.
traction control is activated.

The adaptive speed control will disengage, and clear the memory when:

the ignition switch is set to position '0'.

maximum vehicle speed is reached.
the park brake is applied.
a fault occurs in the adaptive speed control system.

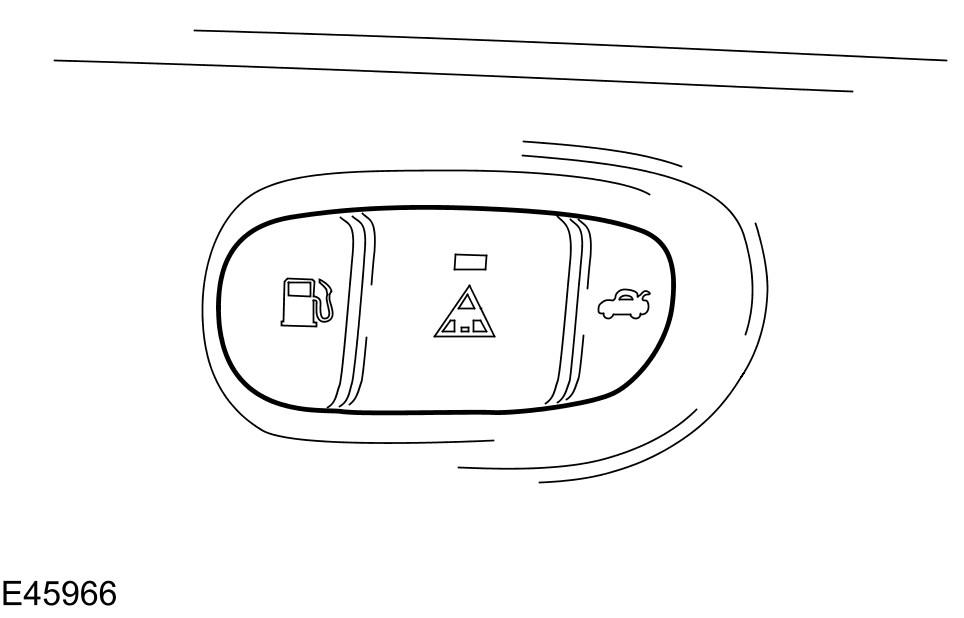

Fig 1: Forward Alert Switch - Vehicles with Adaptive Speed Control

Courtesy of JAGUAR CARS, INC.

Forward Alert

The forward alert system is switched on and off by the forward alert switch. The forward alert system additionally provides warnings while the adaptive speed control is not activated.

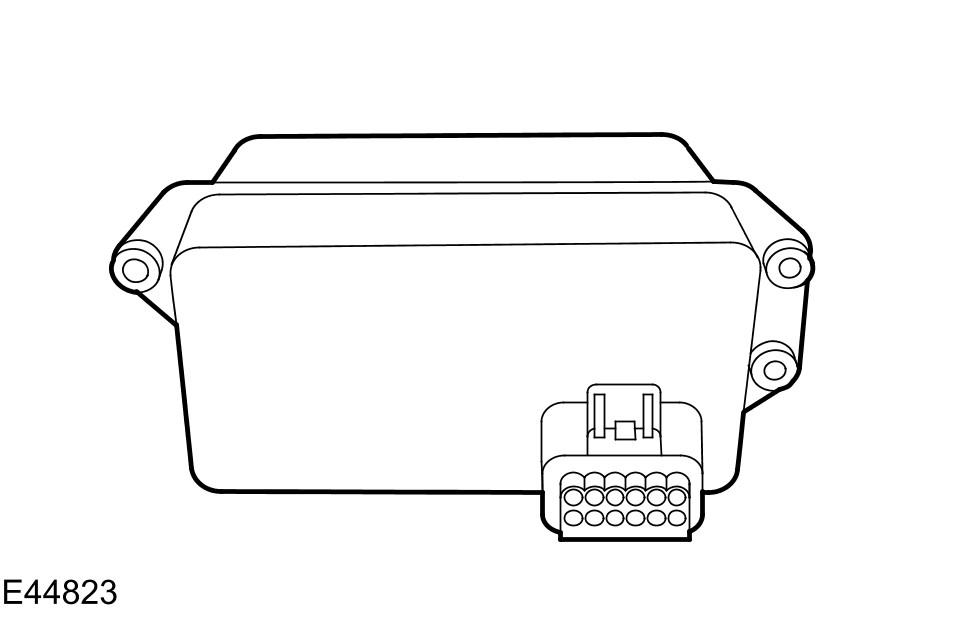

Fig 2: Speed Control Module

Courtesy of JAGUAR CARS, INC.

The adaptive speed control module incorporates a radar sensor and yaw rate sensor to provide system control functions.

Adaptive Speed Control Failure

If a fault occurs during any adaptive speed control operation the adaptive speed control system will be deactivated and will remain in this state until the fault is rectified. The message center will display 'CRUISE NOT AVAILABLE'.
