Vehicles built 02/2004 onwards
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of JAGUAR CARS, INC.

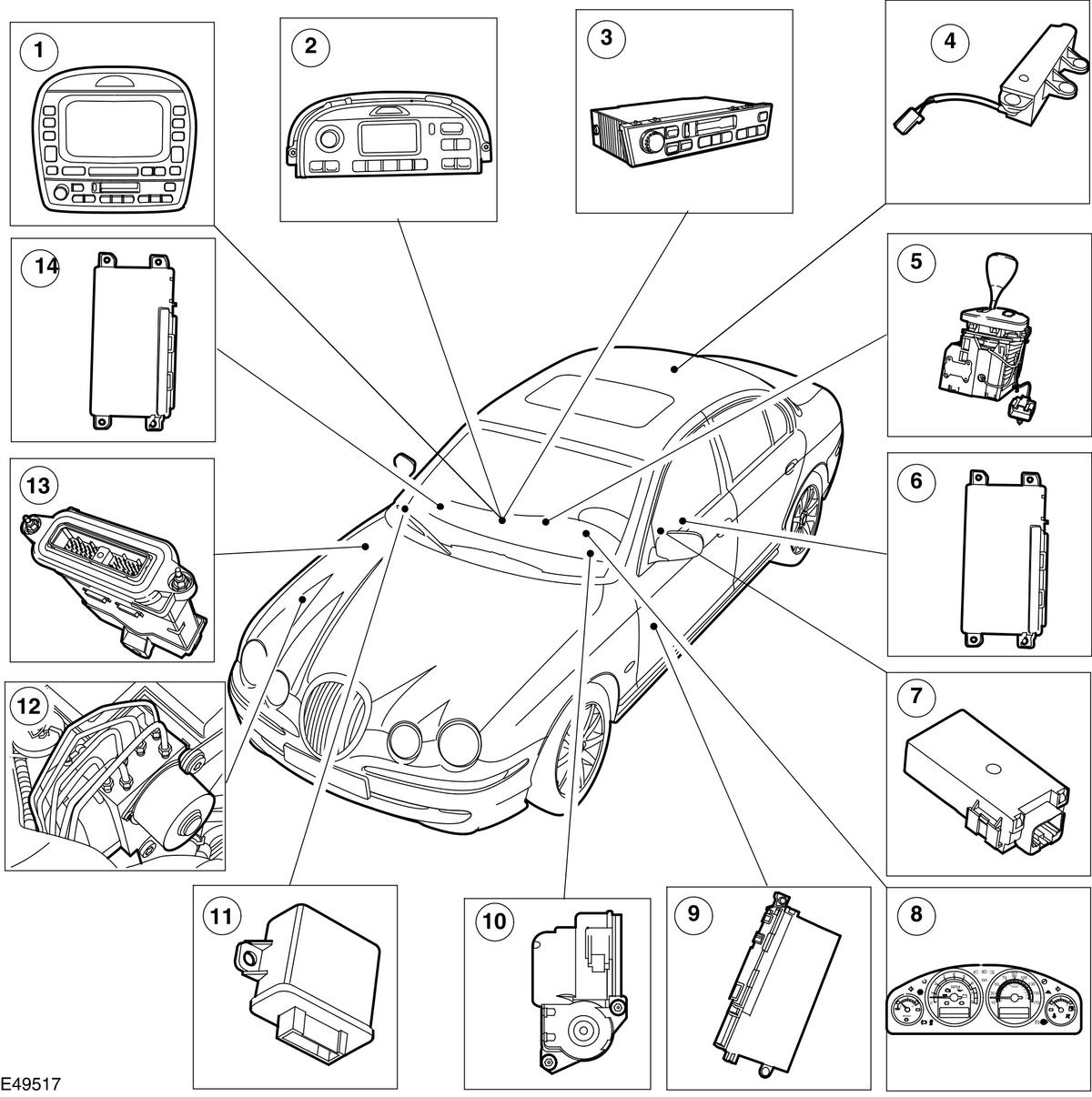

| Item Number |
Description |
| 1 |
Climate control module (vehicles fitted with telematics) |
| 2 |
Climate control assembly |
| 3 |
Audio unit |
| 4 |
Rooker |
| 5 |
Transmission selector lever |
| 6 |
Driver seat module (DSM) |
| 7 |
Heated seat module (HSM) |
| 8 |
Instrument cluster |
| 9 |
Drivers door module (DDM) |
| 10 |
Steering column lock actuator (SCLA) |
| 11 |
High intensity discharge module (HID) |
| 12 |
Anti-lock brake (ABS) control module |
| 13 |
Engine control module (ECM) |
| 14 |
Remote climate control module (RCCM) |
Courtesy of JAGUAR CARS, INC.

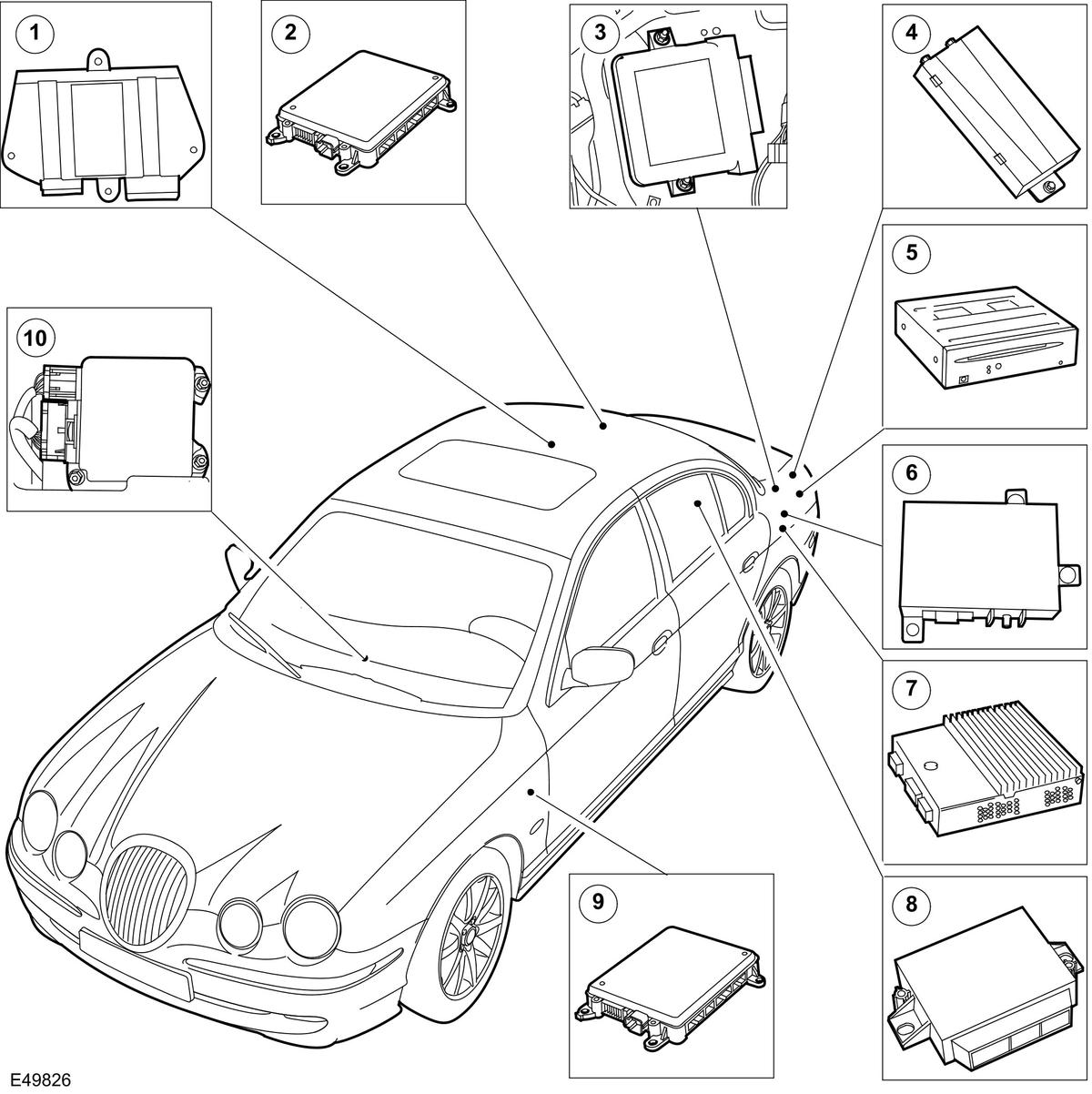

| Item Number |
Description |
| 1 |
Electronic parking brake module |
| 2 |
Rear electronic module (REM) |
| 3 |
Adaptive damping module |
| 4 |
Voice activated control module |
| 5 |
Compact disc changer |
| 6 |
Vehicle emergency monitor system (VEMS) module |
| 7 |
Amplifier |
| 8 |
Parking aid module |
| 9 |
Front electronic module (FEM) |
| 10 |
Restraints control module (RCM) |
