Transmission System Mechanical

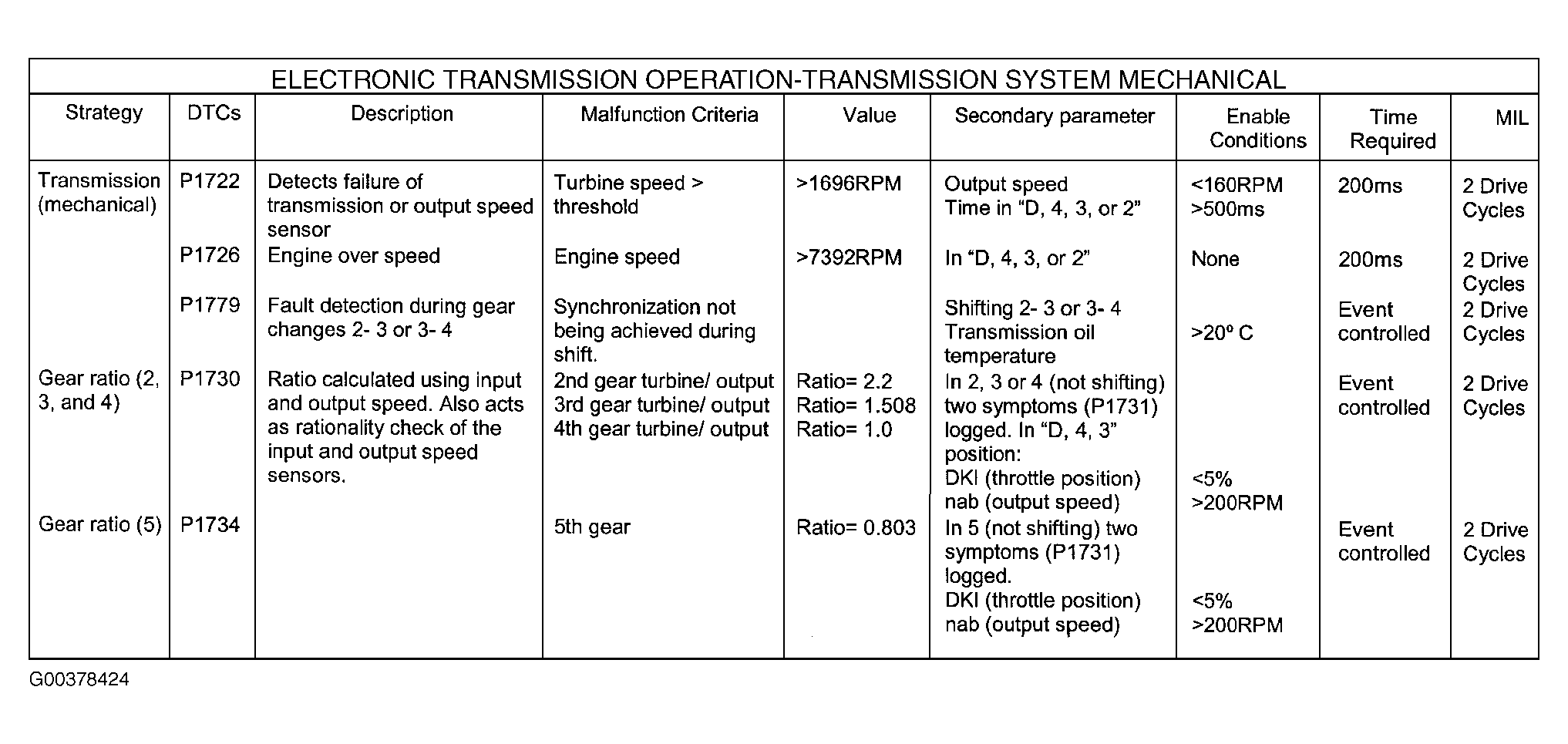

Fig 1: Transmission System Mechanical Table (1 Of 2)
Courtesy of JAGUAR CARS, INC.

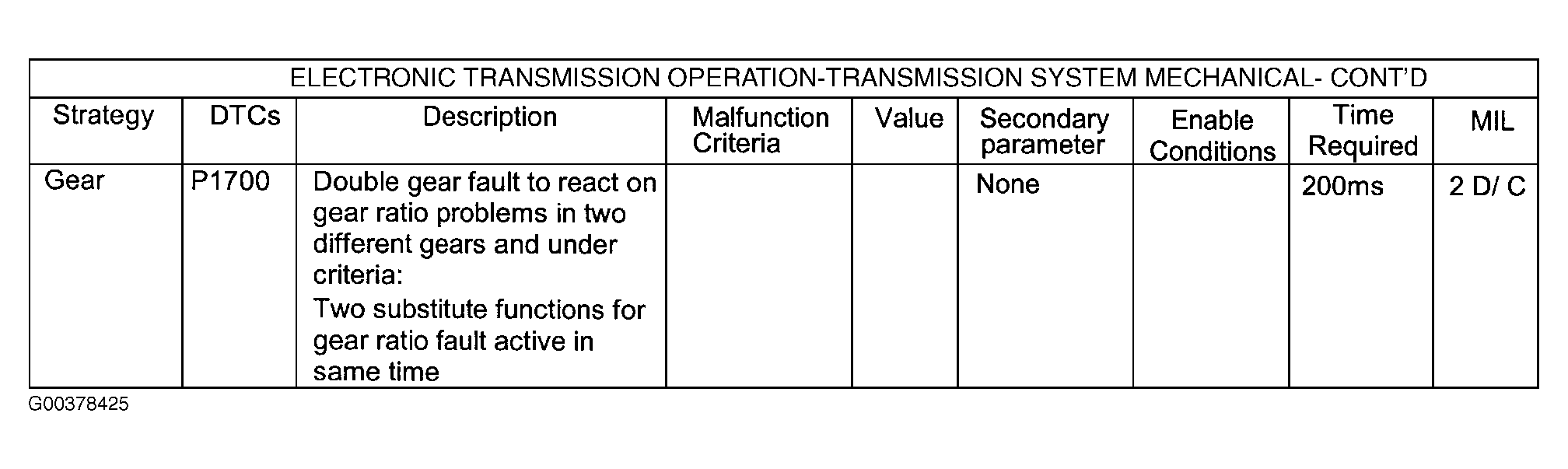

Fig 2: Transmission System Mechanical Table (2 Of 2)
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
