Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Diagnosis & Testing
>>
On-Board Diagnostics
>>
Pressure Regulator Solenoid Table
Pressure Regulator Solenoid Table

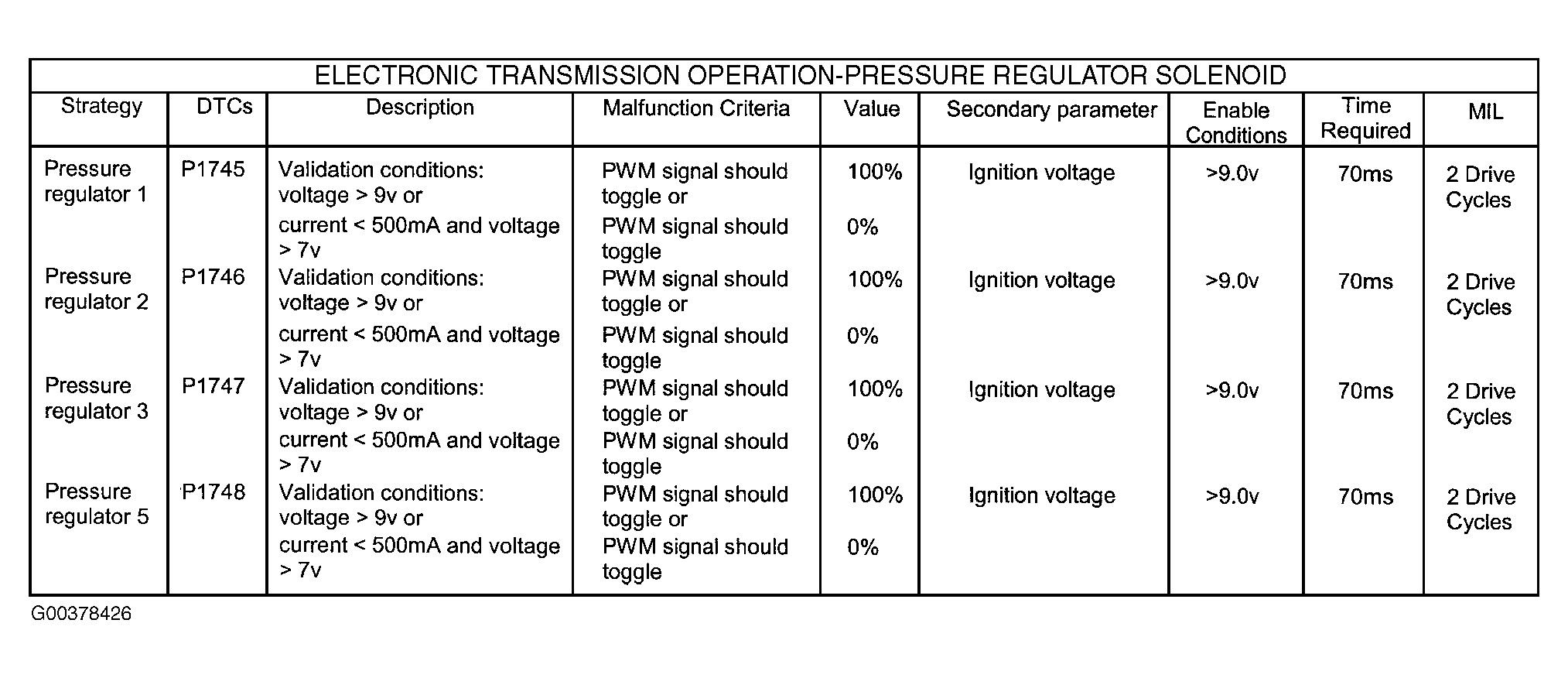

Fig 1: Pressure Regulator Solenoid Table
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
