Handling Lubricating Oil

WARNING: This page is about a different car, the 2002 Jaguar XKR and 2002 Jaguar XK8. However, it is still accessible from the selected car via links, so may be relevant.

Avoid breathing lubricant mist; it can cause irritation to the respiratory system.

Always use fresh oil from a sealed container and do not leave oil exposed to the atmosphere for any reason other than to fill or empty a system. PAG oil is very hygroscopic (absorbs water) and will rapidly become contaminated by atmospheric moisture.

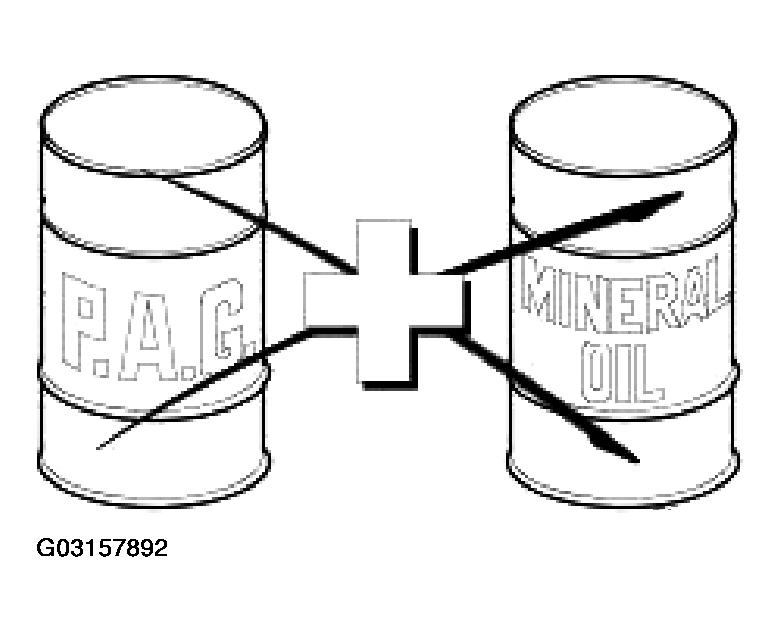

Fig 1: Precaution For Handling Lubricating Oil
G03157892Courtesy of JAGUAR CARS, INC.

PAG oil is NOT compatible with previously used mineral based oils and must NEVER be mixed. Do not re-use oil when it has been separated from refrigerant, following a recovery cycle. Dispose of used oil safely.
