Seat Control Switch: Removal
- Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
- Remove front seat for access. Refer to FRONT SEAT .
- Place seat inverted on clean working surface for access to underside.

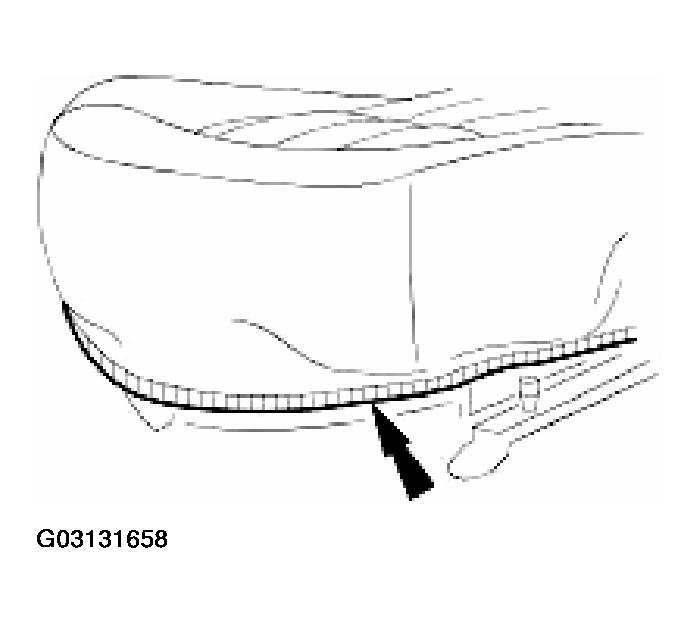

- Release cushion cover retaining strip from edge of seat frame.

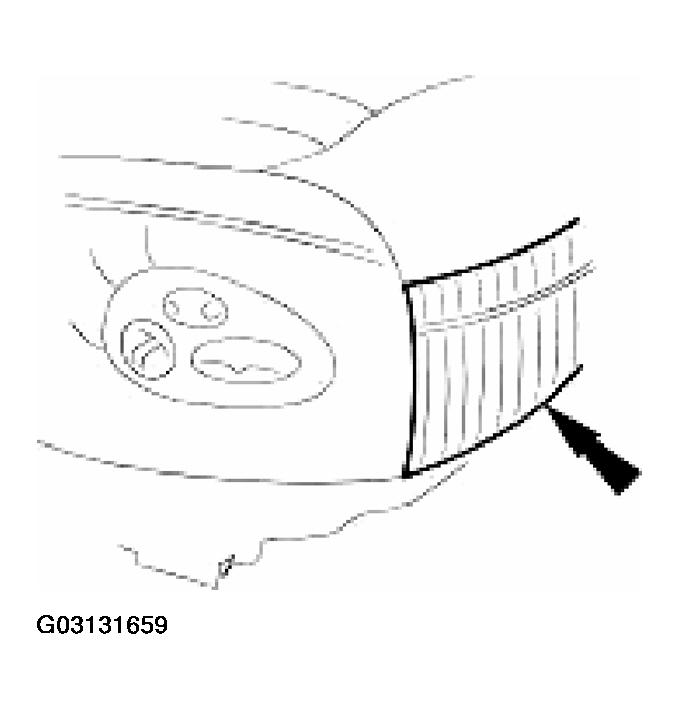

- Release cushion cover front elastic retaining straps from seat frame.
- Position cushion cover sides for access to cushion pad, raise pad to access back of switch pack and disconnect harness multiplug.

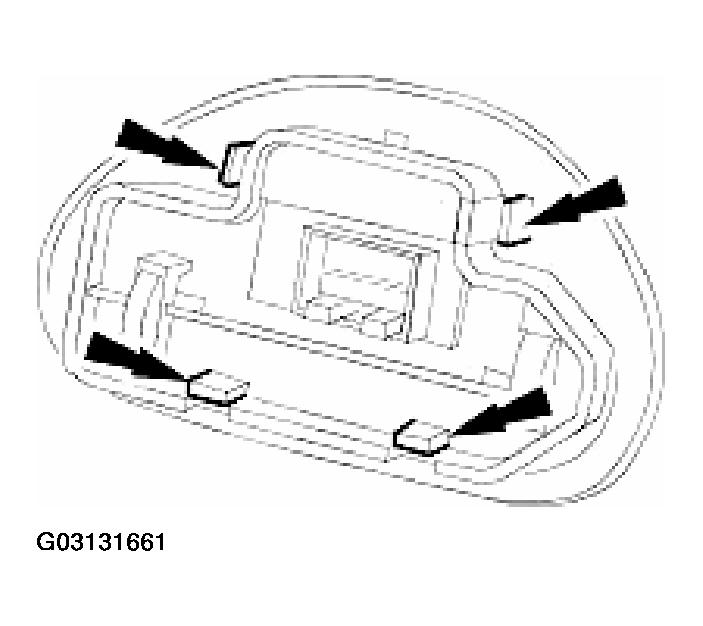

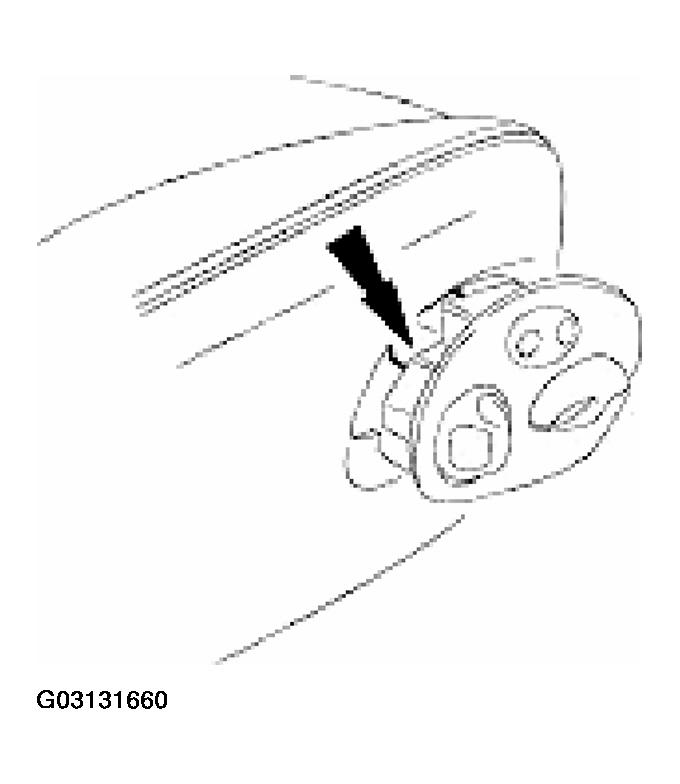

- Release switch pack upper retaining tangs, and lower retaining tangs situated by seat sliders and remove switch pack from seat.
