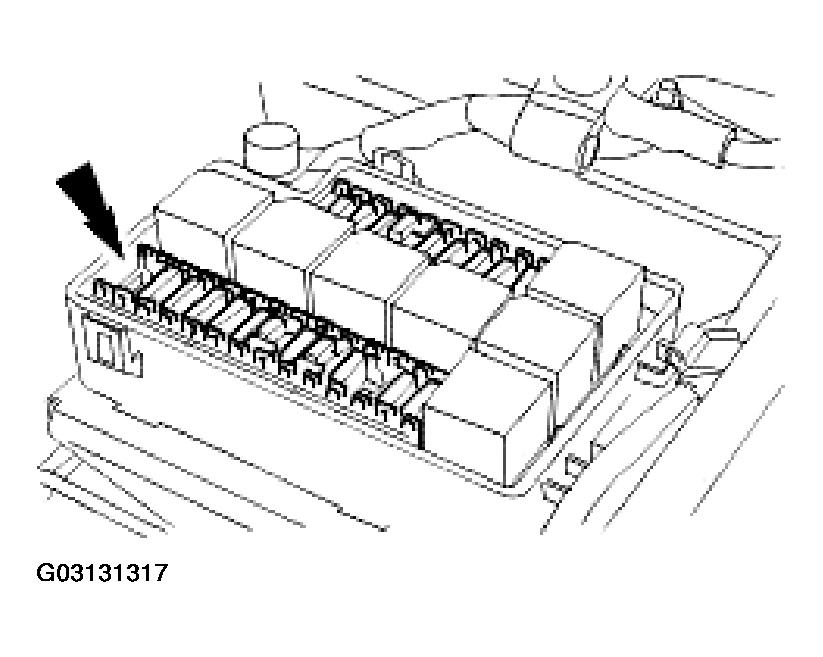

Engine Compartment Fuse Box
FUSE RATINGS AND CIRCUIT DESCRIPTION
| Fuse No | Rating (amps) | Circuit |
|---|---|---|
| 1 | 10 | Transmission control module. |
| 2 | 5 | Screen heaters relay, alternator regulator. |
| 3 | 10 | Security sounder, headlamp levelling, ignition coils +Ve, fog lamp switches. |
| 4 | 5 | ABS control module. |
| 5 | 10 | Adaptive damping, starter relay coil, engine management control module and relays. |
| 6 | 10 | Right-hand low beam headlamp. |
| 7 | 30 | Power wash pump. |
| 8 | 10 | Left-hand low beam headlamp. |
| 9 | 10 | Security sounder. |
| 10 | - | Not used. |
| 11 | 10 | Right-hand horn. |
| 12 | 30 | Radiator cooling fans series/right-hand fast. |
| 13 | 10 | Left-hand horn |
| 14 | 30 | Cooling fans left-hand fast. |
| 15 | 10 | Air conditioning coolant pump. |
| 16 | 30 | ABS pump control. |
| 17 | 15 | Front fog lamps. |
| 18 | 30 | ABS pump motor. |
| 19 | 10 | Right-hand high beam headlamp. |
| 20 | - | Not used. |
| 21 | 10 | Left-hand high beam headlamp. |
| 22 | 30 | Wiper motor. |
