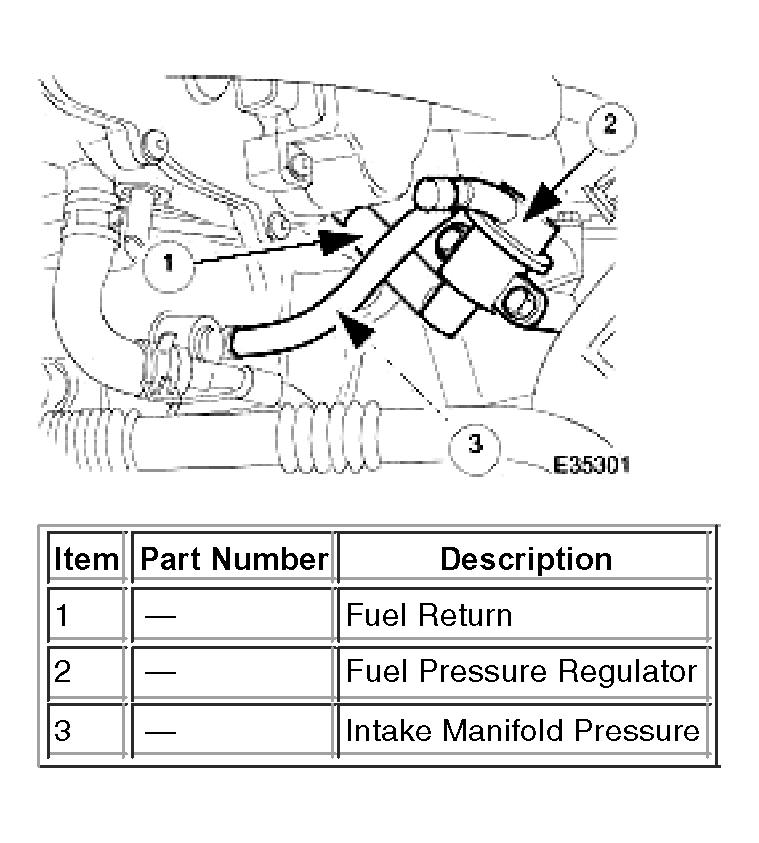

The pressure regulator is a diaphragm-operated valve that regulates fuel-rail pressure at 2,9 bar above the intake manifold pressure.
The regulator is located at the rear of the right pressure rail.
Courtesy of JAGUAR CARS, INC.
