Steering Column: Installation

Install lower steering column universal joint with upper column. See Fig 1 and Fig 2. Install upper column nuts, DO NOT tighten. Install and tighten column lower nuts and bolts. Tighten column upper securing nuts. To complete installation, reverse removal procedure. See TORQUE SPECIFICATIONS .

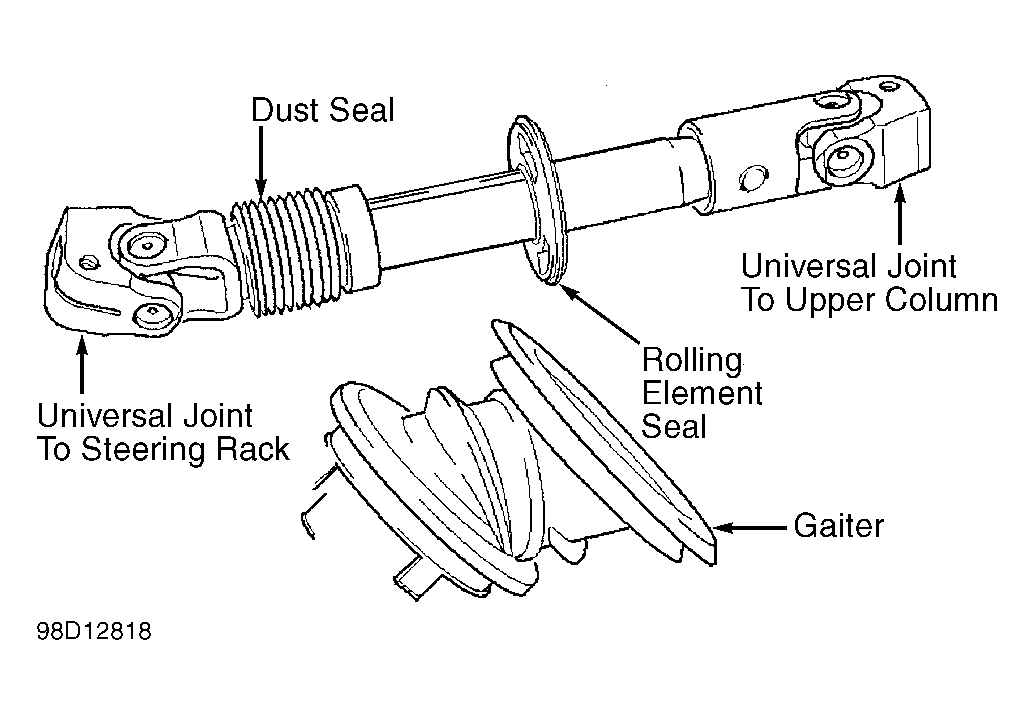

Fig 1: View Of Lower Steering Column (XK8)

Courtesy of JAGUAR CARS, INC.

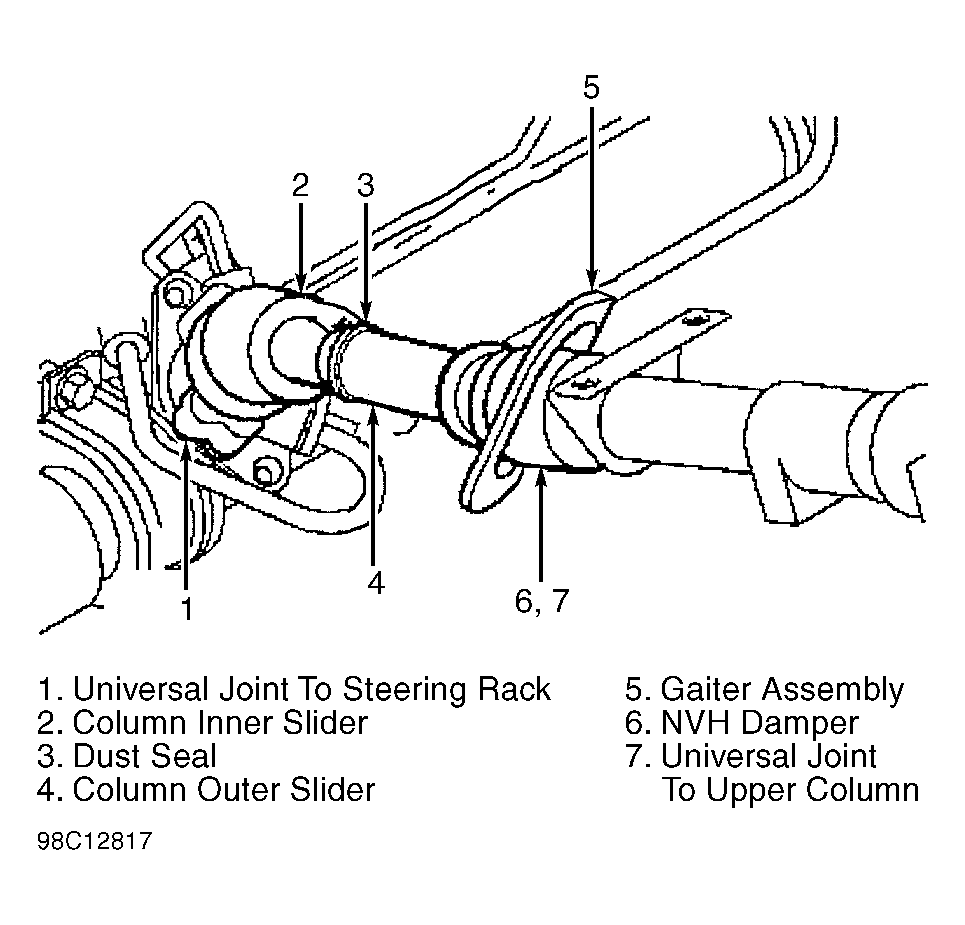

Fig 2: View Of Lower Steering Column (XJ Series)

Courtesy of JAGUAR CARS, INC.
