Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

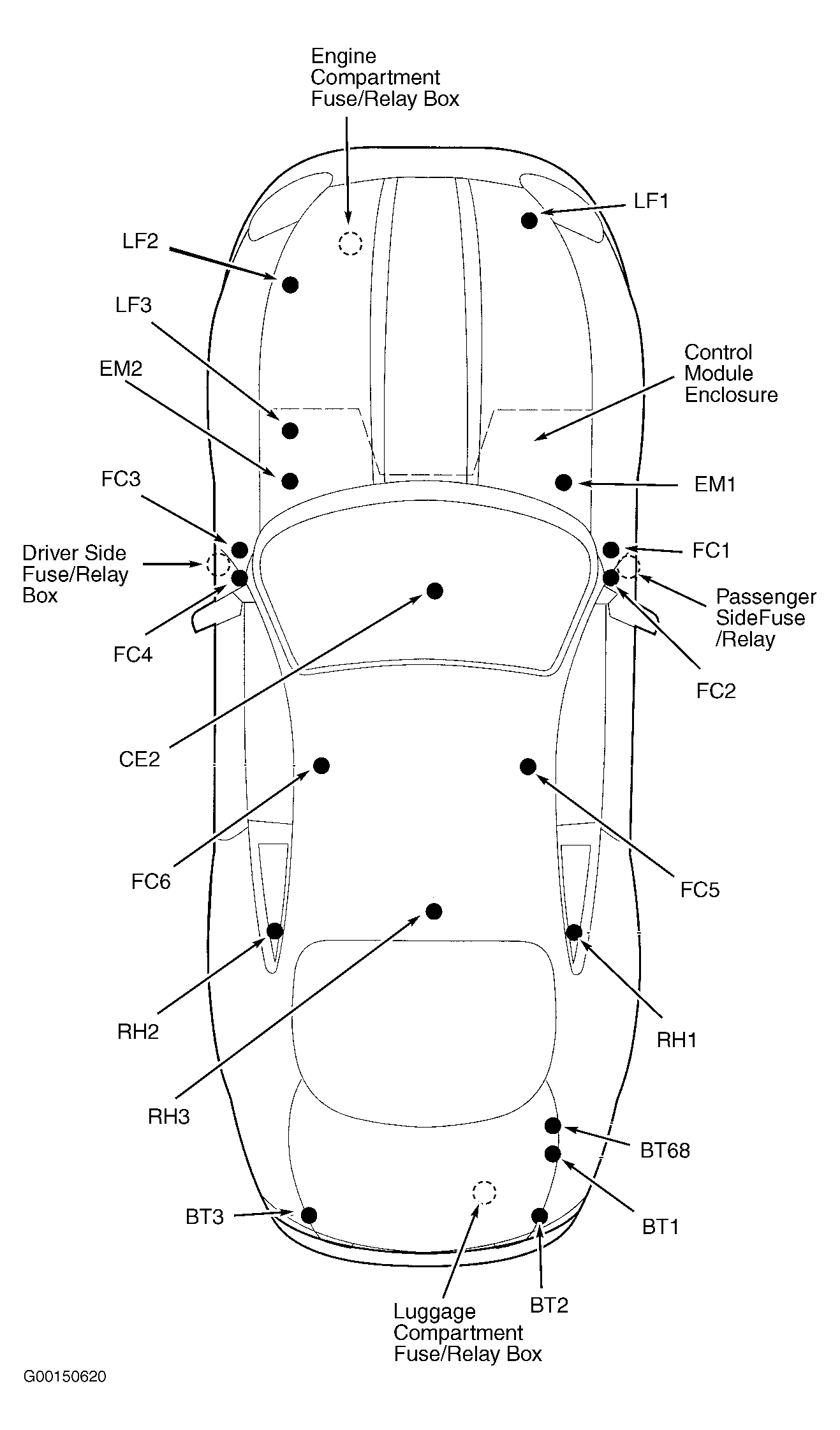

Component Component Location
Driver Side Fuse/Relay Box Behind left side of dash. See Figure .
Engine Compartment Fuse/Relay Box Left front of engine compartment. See Figure .
Engine Management Fuse/Relay Box Right rear of engine compartment, in control module enclosure.
Luggage Compartment Fuse/Relay Box Right side of luggage compartment. See Figure .
Passenger Side Fuse/Relay Box Behind right side of dash. See Figure .
