H10: O2 Sensor Short Circuit To Ground

  1. With EM024 disconnected measure the insulation resistance between sensor pin 001 and sensor body.
  2. Repeat for pin 002 and sensor body

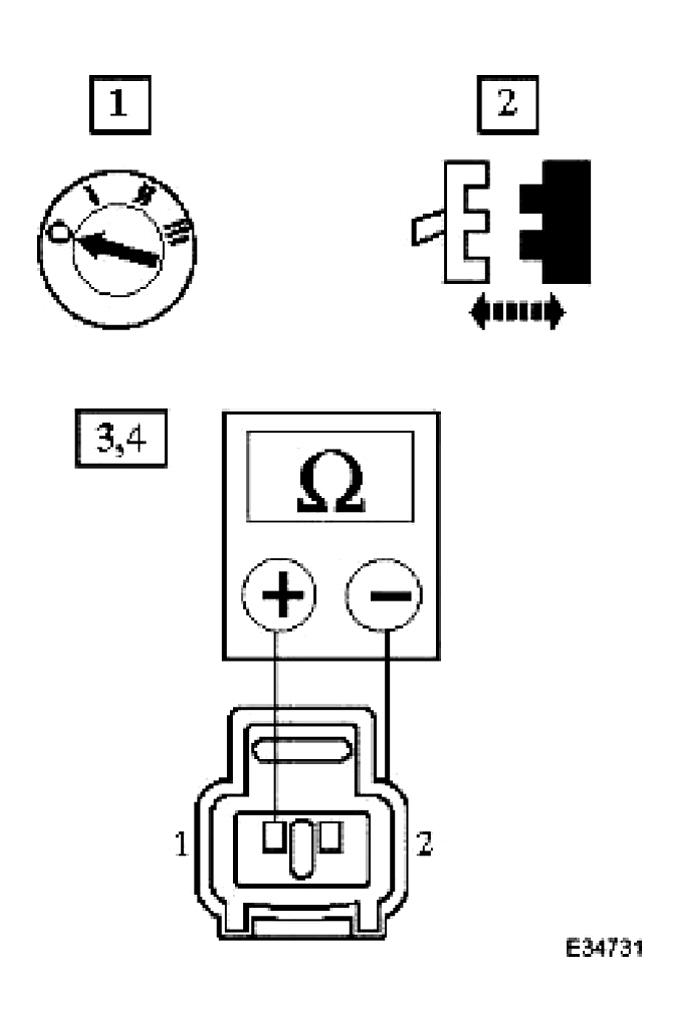

    Fig 1: Measuring Resistance Between Sensor Pin 001 And Sensor Body
    G04355548Courtesy of JAGUAR CARS, INC.
    • Is the resistance > 10 MOHM?

    Yes  : GO to H12

    No  : Renew the O2 sensor and reconnect all plugs

    GO to H11
