E5: Check For O2 Sensor Failure

  1. With the conditions held as E4, suddenly accelerate to approximately 2500 rpm

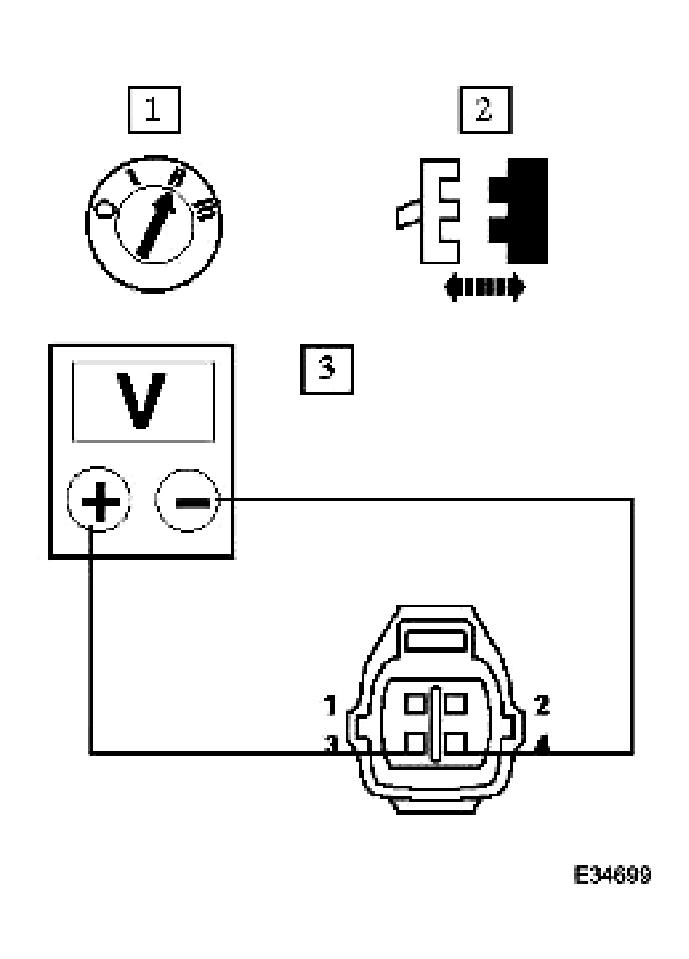

    Fig 1: Checking For O2 Sensor Failure (With Conditions Held as E4)
    G04355500Courtesy of JAGUAR CARS, INC.
    • Has the voltage risen to between 600mV and 1 volt?

    Yes

    GO to E6

    No  : Renew O2 sensor; reconnect plug(s)

    GO to E7
