E3: Check For O2 Sensor Failure

  1. Run the engine for a period to warm the sensor and then maintain a steady speed of approximately 2500 rpm.
  2. With EM023 disconnected, measure the voltage between EM023/003 and EM023/004.

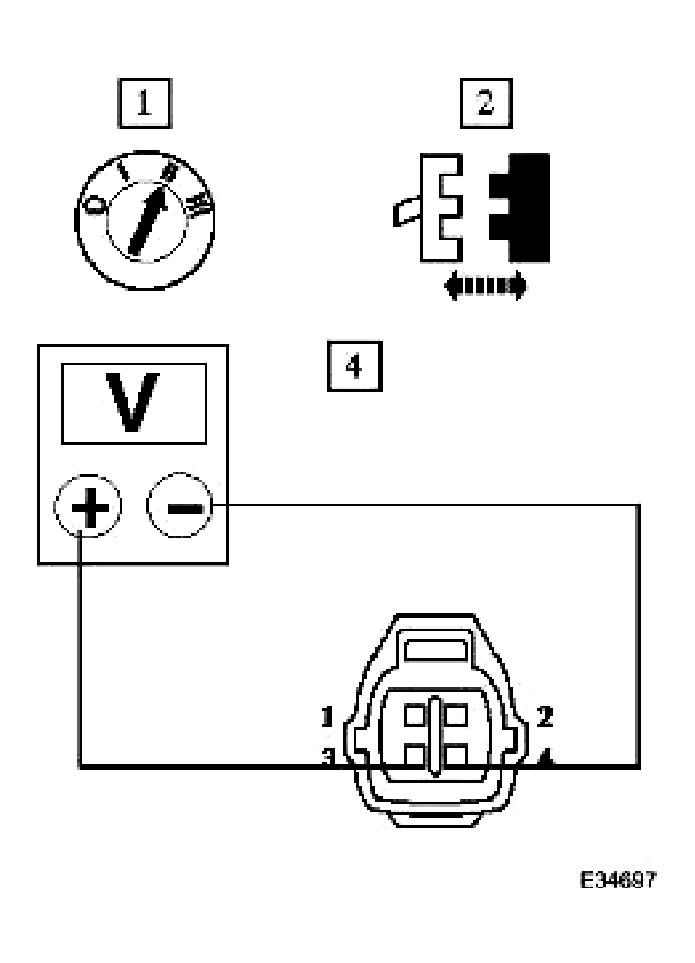

    Fig 1: Measuring Voltage Between EM023/003 And EM023/004
    G04355498Courtesy of JAGUAR CARS, INC.
    • Is the voltage between 600mV and 1.0 Volt?

    Yes  : GO to E4

    No  : Renew O2 sensor; reconnect plug(s)

    GO to E7
