Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

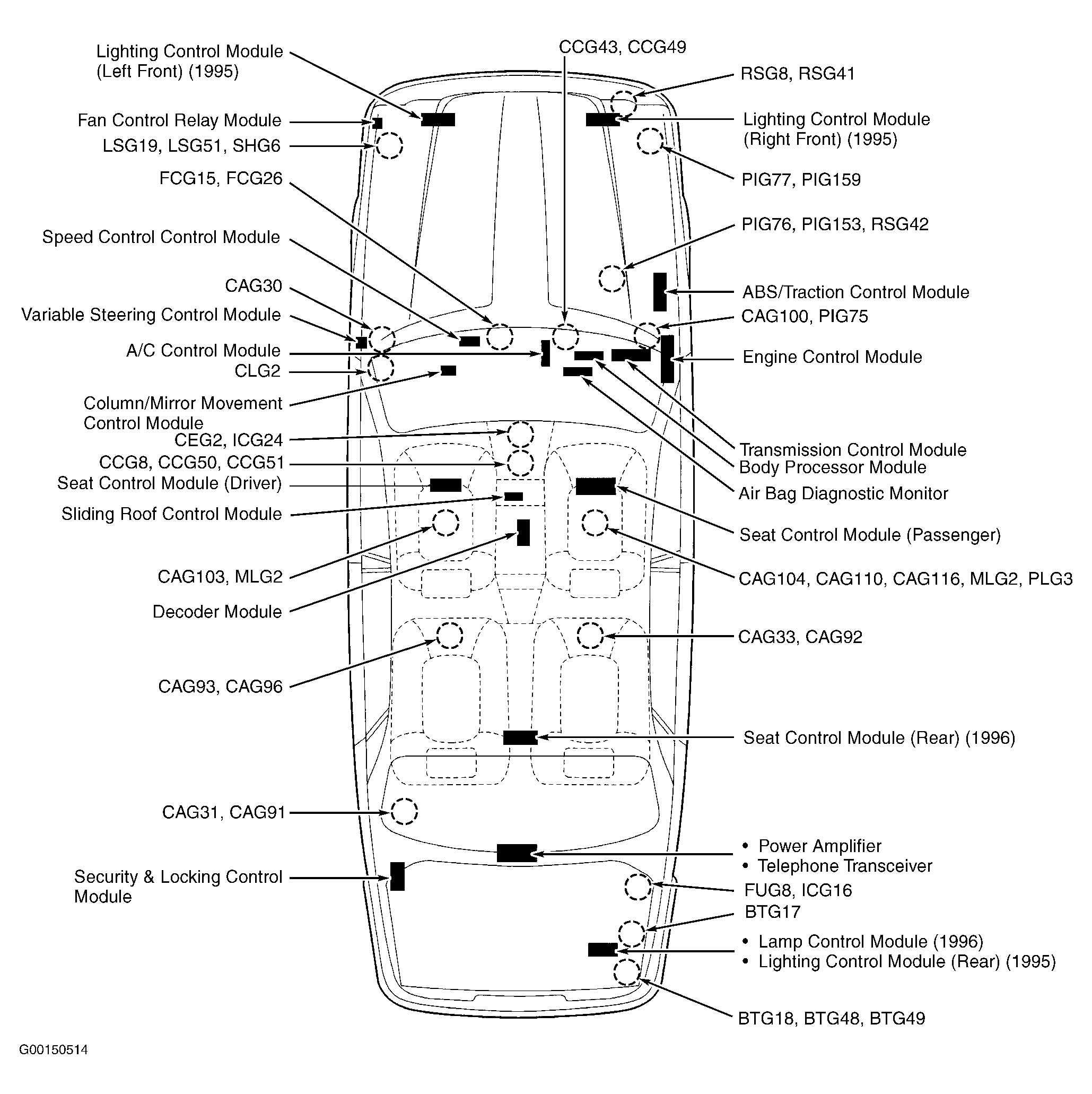

Fig 1: Vehicle Overview

G00150514

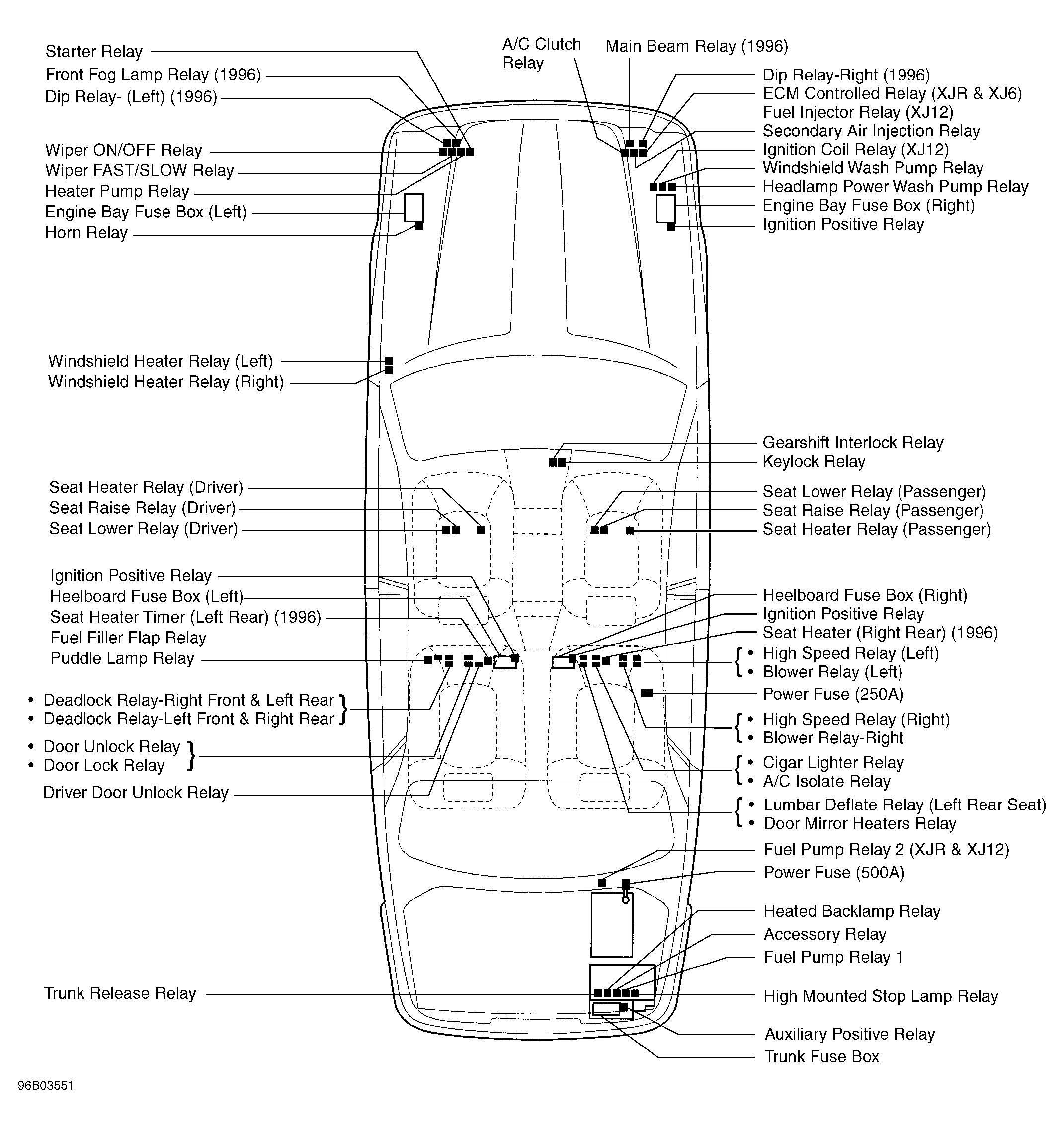

Fig 2: Vehicle Overview

G96B03551
