SANDEN - 7-Cylinder: XJS
- Operate engine at idle speed for 10 minutes, to return refrigerant oil to compressor. Stop engine. Discharge refrigerant. See SERVICING PRECAUTIONS . Clean area around compressor filler plug and remove plug slowly.

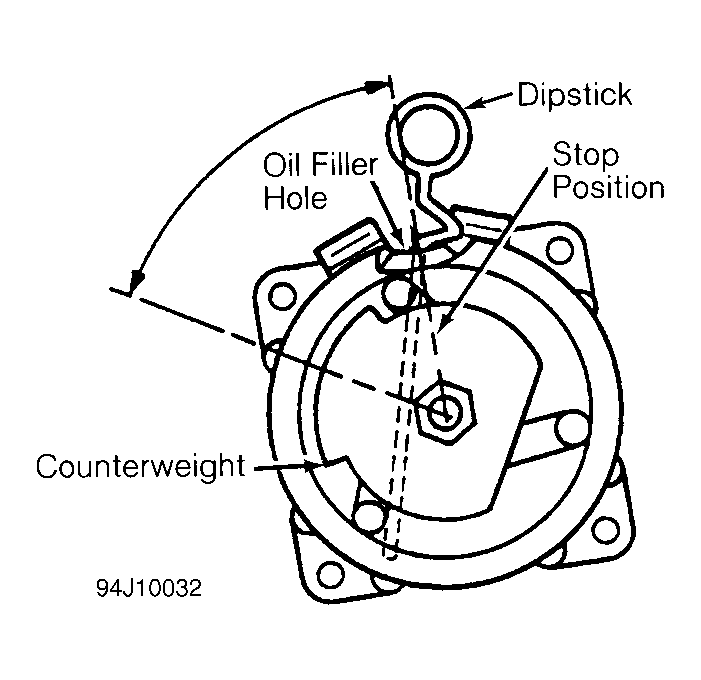

- Determine angle at which compressor is mounted. Insert compressor dipstick diagonally until stop on dipstick contacts filler plug surface. See Fig 1 . Remove dipstick and note oil fill level. Each increment on dipstick represents one ounce of oil.
- Determine amount of oil needed according to mounting angle. See COMPRESSOR OIL CAPACITIES (SANDEN) table for specified amount.
- If necessary, correct compressor oil level. Install compressor oil plug, and tighten it to 72-108 INCH lbs. (8-12 N.m). Evacuate and charge A/C system. Perform leak test.
COMPRESSOR OIL CAPACITIES (SANDEN)
| Mounting Angle (In Degrees) | Oil Level In Increments |
|---|---|
| 0 | 3-5 |
| 10 | 4-6 |
| 20 | 5-7 |
| 30 | 6-8 |
| 40 | 7-9 |
| 50 | 8-10 |
| 60 | 9-11 |
| 90 | 10-12 |
