Control Units

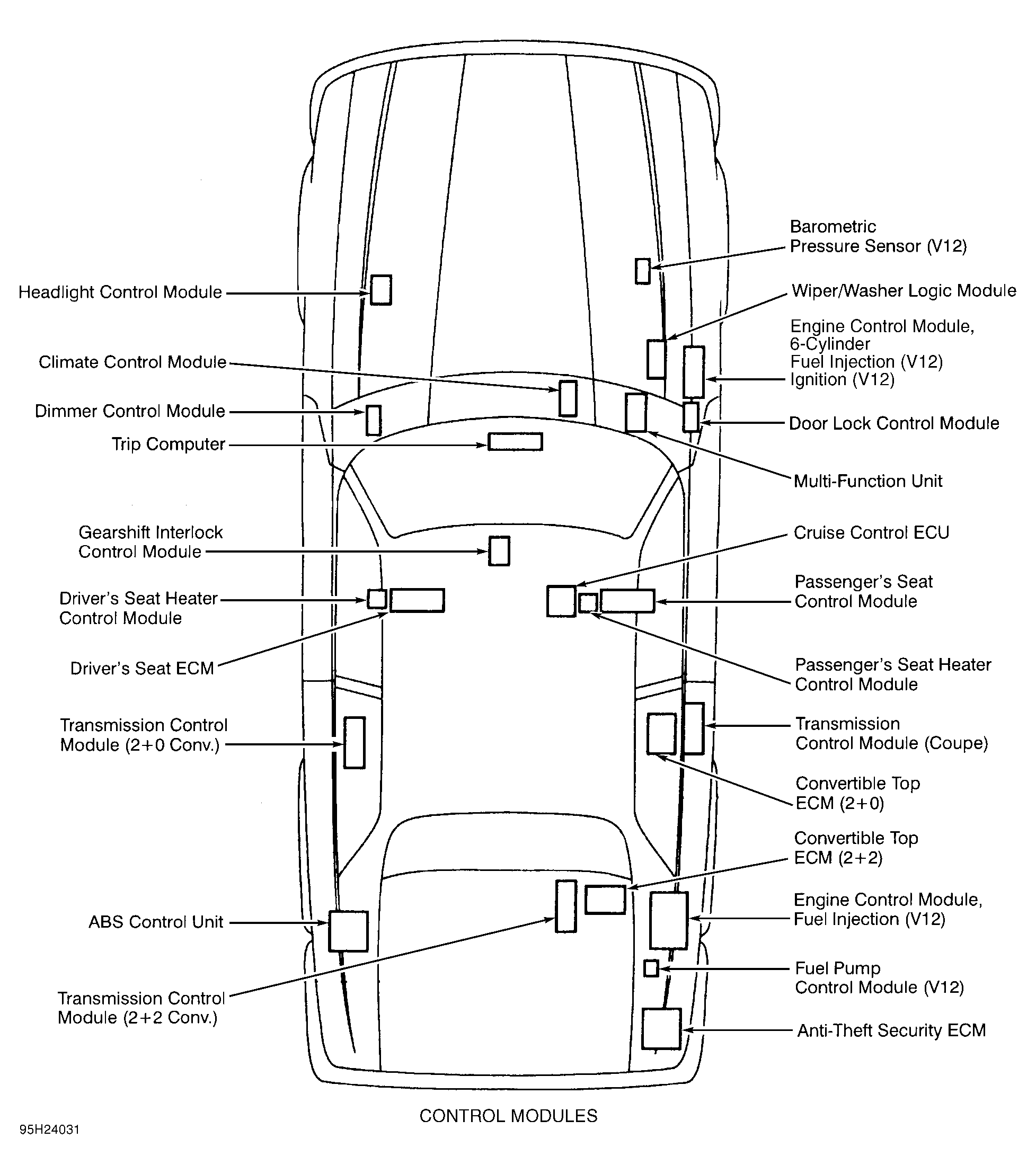

CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | Behind trim panel, on left side of luggage compartment. See Figure & Figure . | |
| A/C Control Unit | On right side of A/C unit, behind right side of dash. | |
| Anti-Slosh Module (Fuel Level) | On left rear wheelwell arch, in luggage compartment. See Figure & Figure . | |

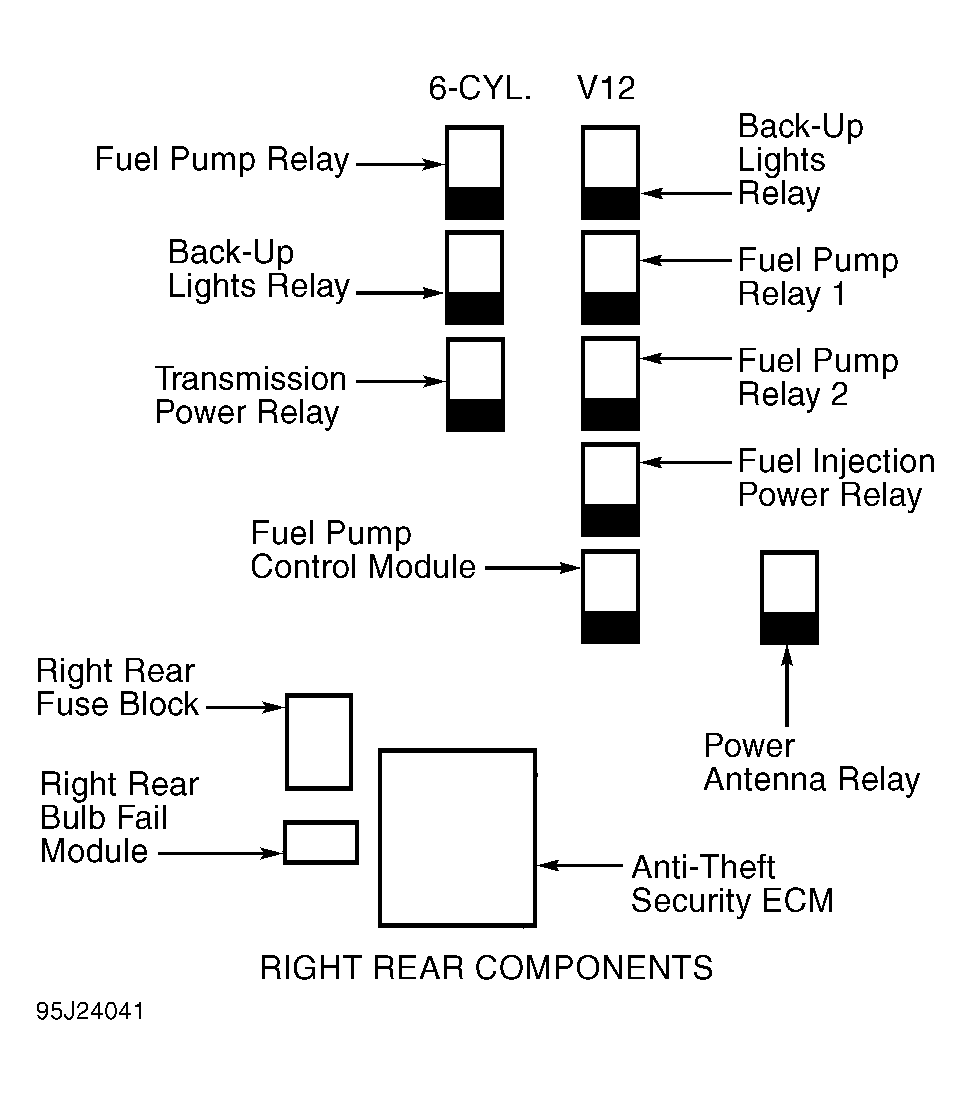

| Anti-Theft Security ECM | Behind right taillight, in luggage compartment. See Figure , Figure & Figure . | |
| Bulb Failure Module (Front Lights) | Behind right side of dash, on right component panel. See Figure & Figure . | |
| Bulb Failure Module (Rear Lights) | Behind right and left taillight assembly. See Figure , Figure & Figure . | |
| Bulb Failure Module (Stoplights) | Left side of luggage compartment. See Figure & Figure . | |
| Climate Control Module | On right component panel. See Figure . | |
| Convertible Top ECM | Under rear deck lid, on convertible top component panel. See Figure , Figure & Figure . | |
| Cruise Control ECU | Under right front seat. See Figure . | |
| Dimmer Control Unit | Behind left side of dash. See Figure . | |
| Door Lock Control Unit | Behind right kick panel. See Figure . | |
| Driver's Seat ECM | Under driver's seat. See Figure . | |
| Driver's Seat Heater Control Module | Under driver's seat. See Figure . | |
| Engine Control Module (6-Cyl.) | Under passenger's side footwell panel. See Figure . | |
| Engine Control Module, Fuel Injection (V12) | Under passenger's side footwell panel. See Figure . | |
| Engine Control Module, Ignition (V12) | Under passenger's side footwell panel. See Figure . | |
| Fuel Pump Control Module (V12) | Right rear below fuel tank. See Figure , Figure & Figure . | |
| Gearshift Interlock Module | On front of base of shift lever assembly. See Figure . | |
| Headlight Control Unit | On left front component panel. See Figure , Figure & Figure . | |
| Interior Light Delay Module | Behind right side of dash. | |
| Lights On Warning Module | Under left side of dash. | |
| Low Coolant Module | Behind right side of dash, on right component panel. See Figure & Figure . | |
| Multi-Function Unit | On right component panel. See Figure , Figure & Figure . | |
| Passenger's Seat Control Module | Under passenger seat. See Figure . | |
| Passenger's Seat Heater Control Module | Under passenger seat. See Figure . | |
| Power Modules (2) | Right rear bulkhead, in engine compartment. | |
| Power Seat/Mirror Control Unit | Under footwell cover, in front of left and right front seats. | |
| Seat Belt Logic Module | Under right side of dash. | |
| Seat Heater Control Unit | Under left and right front seats. | |
| Transmission Control Module (TCM) | ||
| Convertible 2+0 | Behind left quarterpanel, near door post. See Figure . | |
| Convertible 2+2 | Inside left of convertible top deck lid. See Figure . | |
| Coupe | Behind right quarterpanel, near door post. See Figure . | |
| Trip Computer | Under center of dash. See Figure . | |
| Wiper/Washer Control Unit | Behind right side of dash. See Figure . | |
