Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

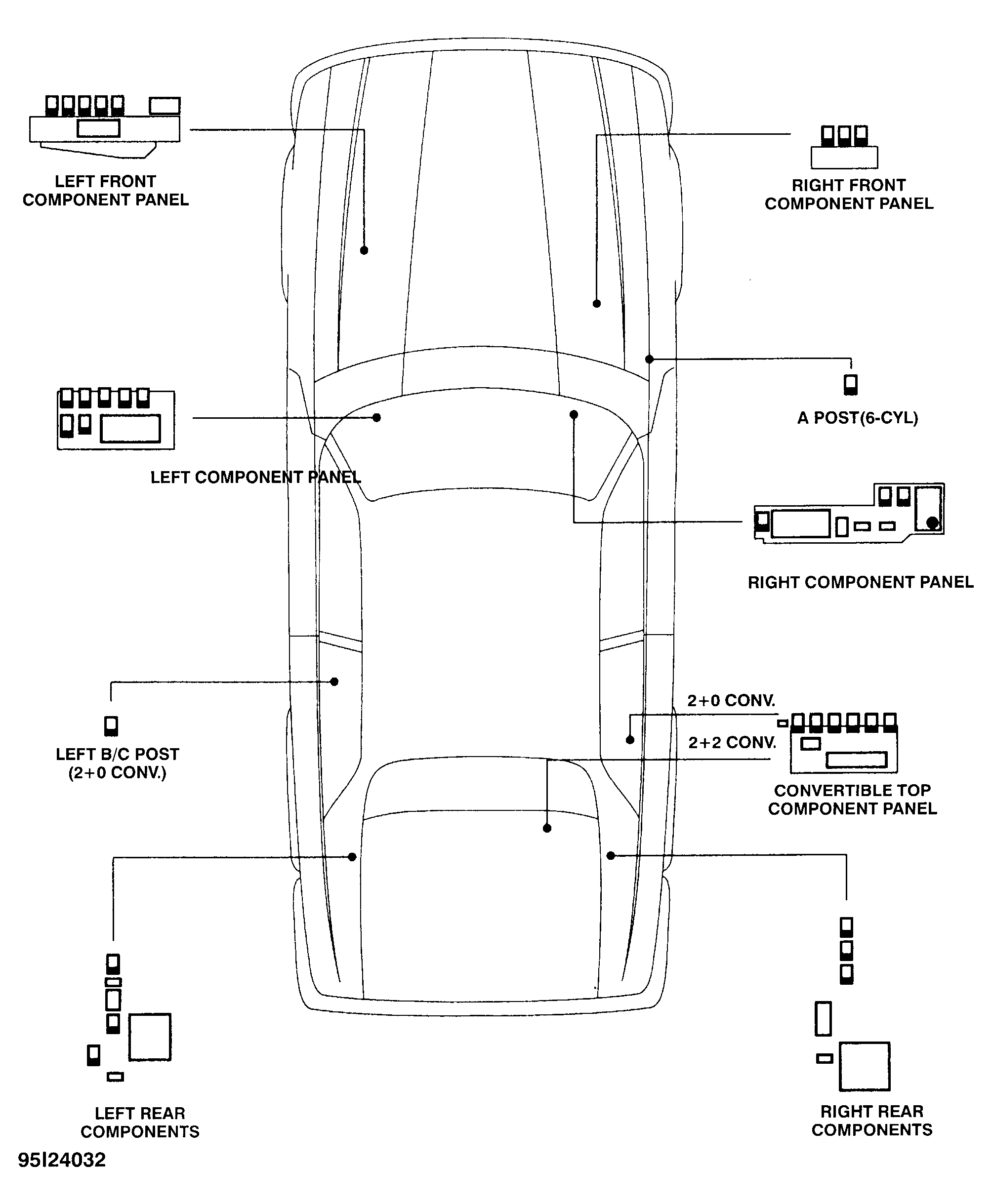

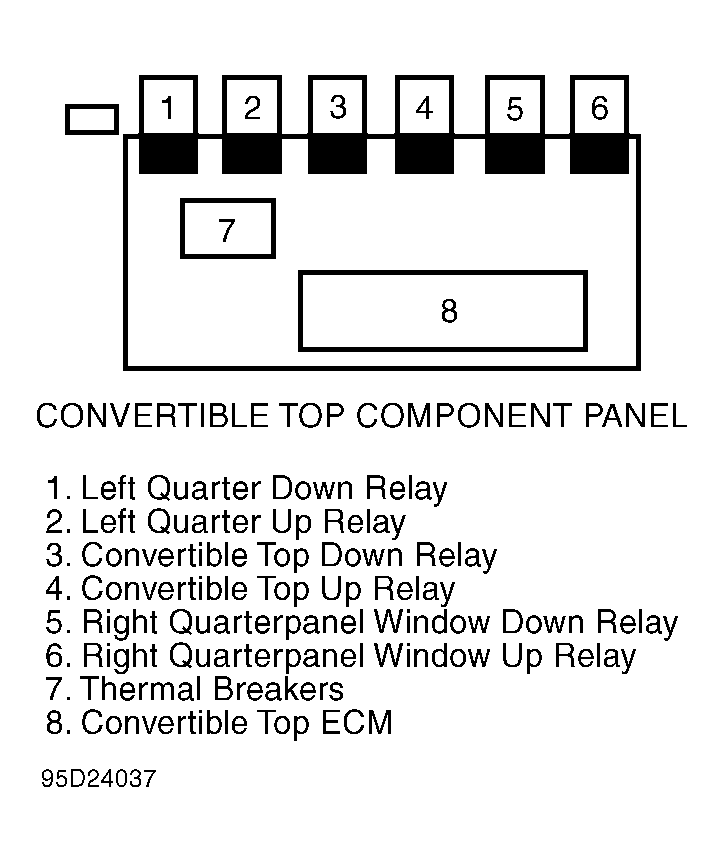

Convertible Top Fuse Next to convertible top component panel. See Figure & Figure .

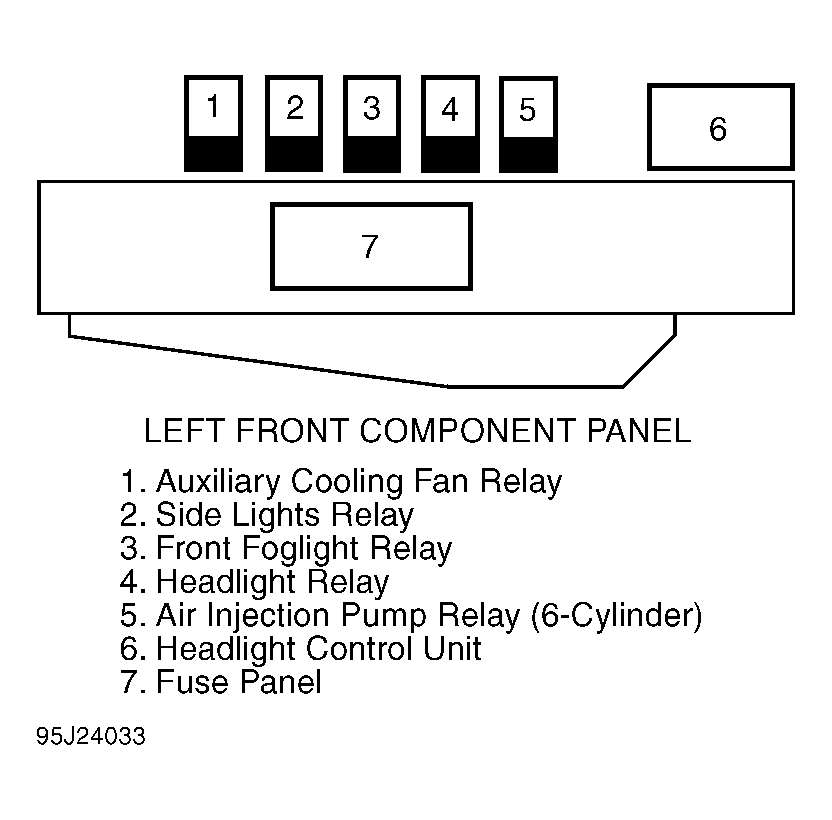

Engine Compartment Fuse Block On left front inner fender panel. See Figure .
Luggage Compartment Fuse Block On right side of luggage compartment. See Figure .

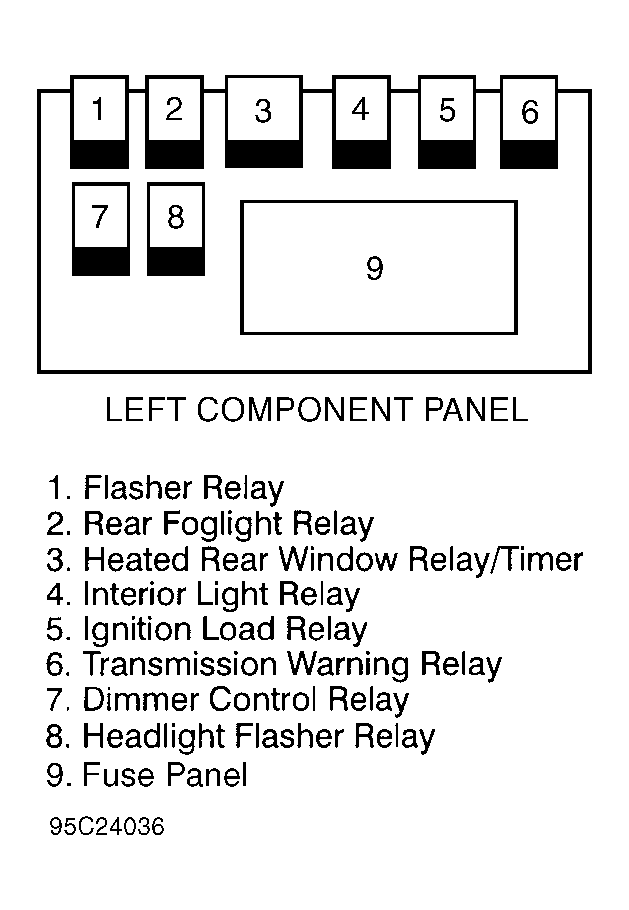

Passenger Compartment Fuse Block Behind left and right side of dash. See Figure .
Window Thermo Breaker Behind left side of dash, on right component panel. See Figure & Figure .
