Fuse Panel Identification: Notes

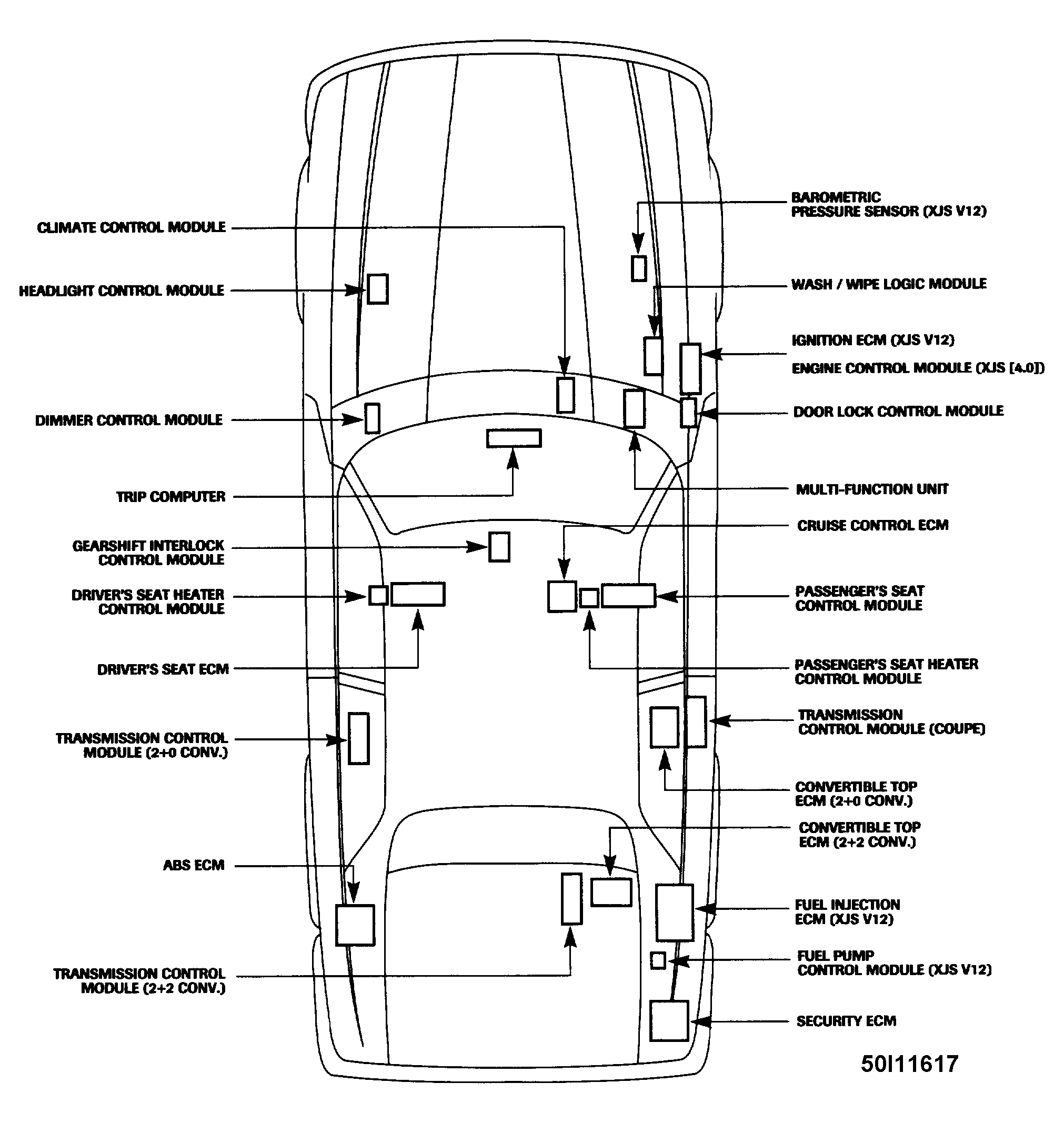

Fig 1: Vehicle Control Module Locations
G50I11617Courtesy of JAGUAR CARS, INC.

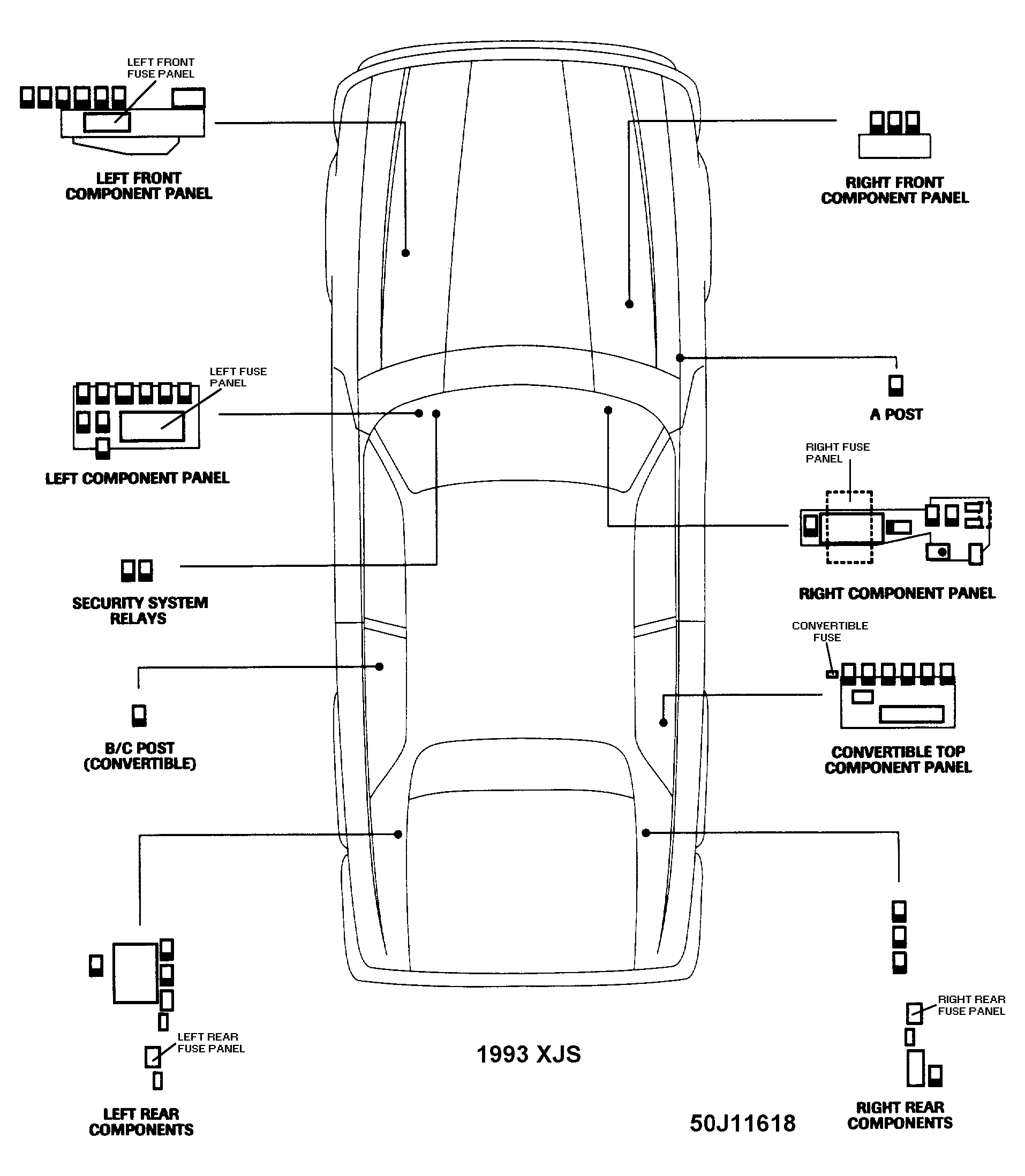

Fig 2: Fuse Panel Locations (1993)
G50J11618Courtesy of JAGUAR CARS, INC.

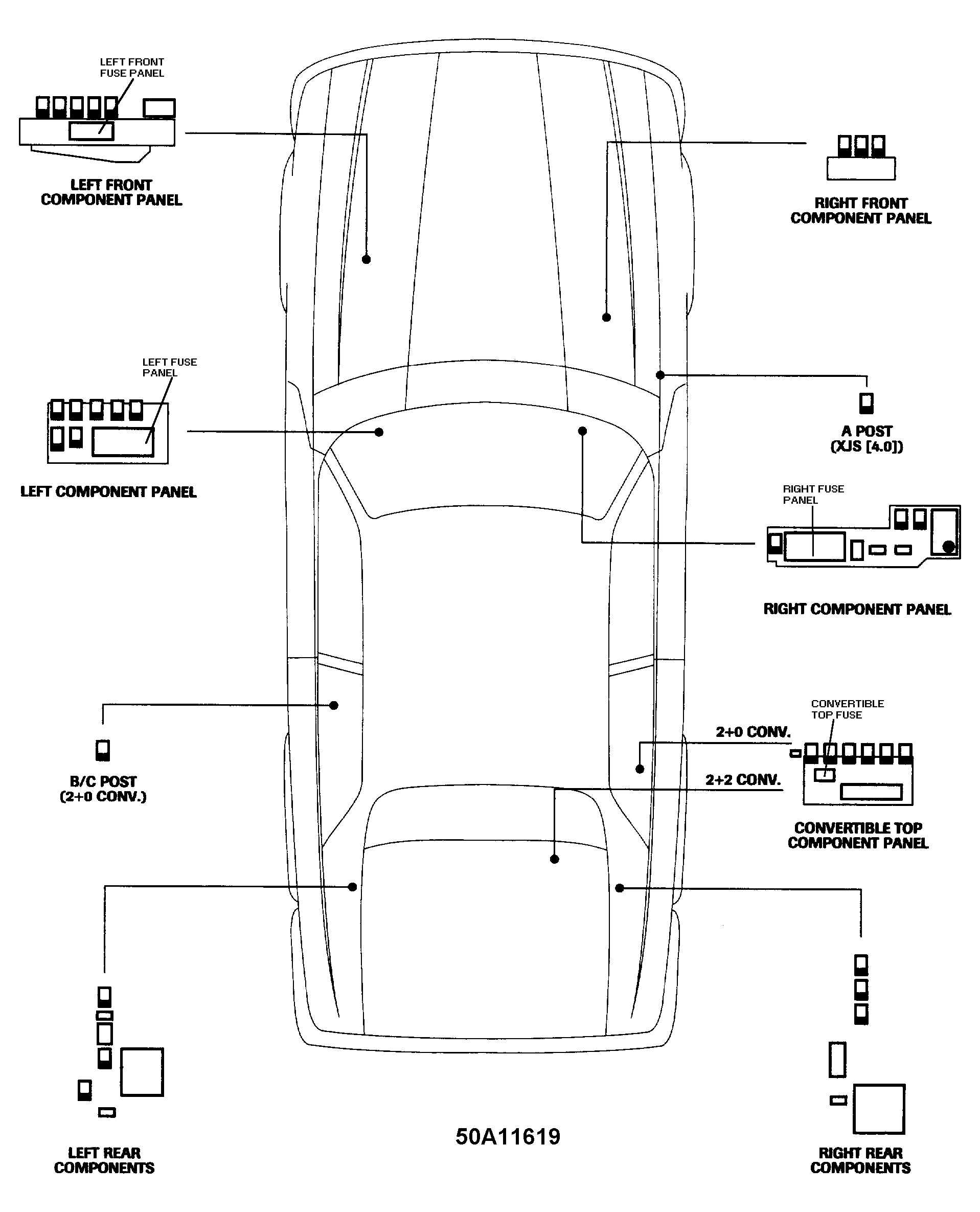

Fig 3: Fuse Panel Locations (1994-96)
G50A11619Courtesy of JAGUAR CARS, INC.
