Wiring Diagrams

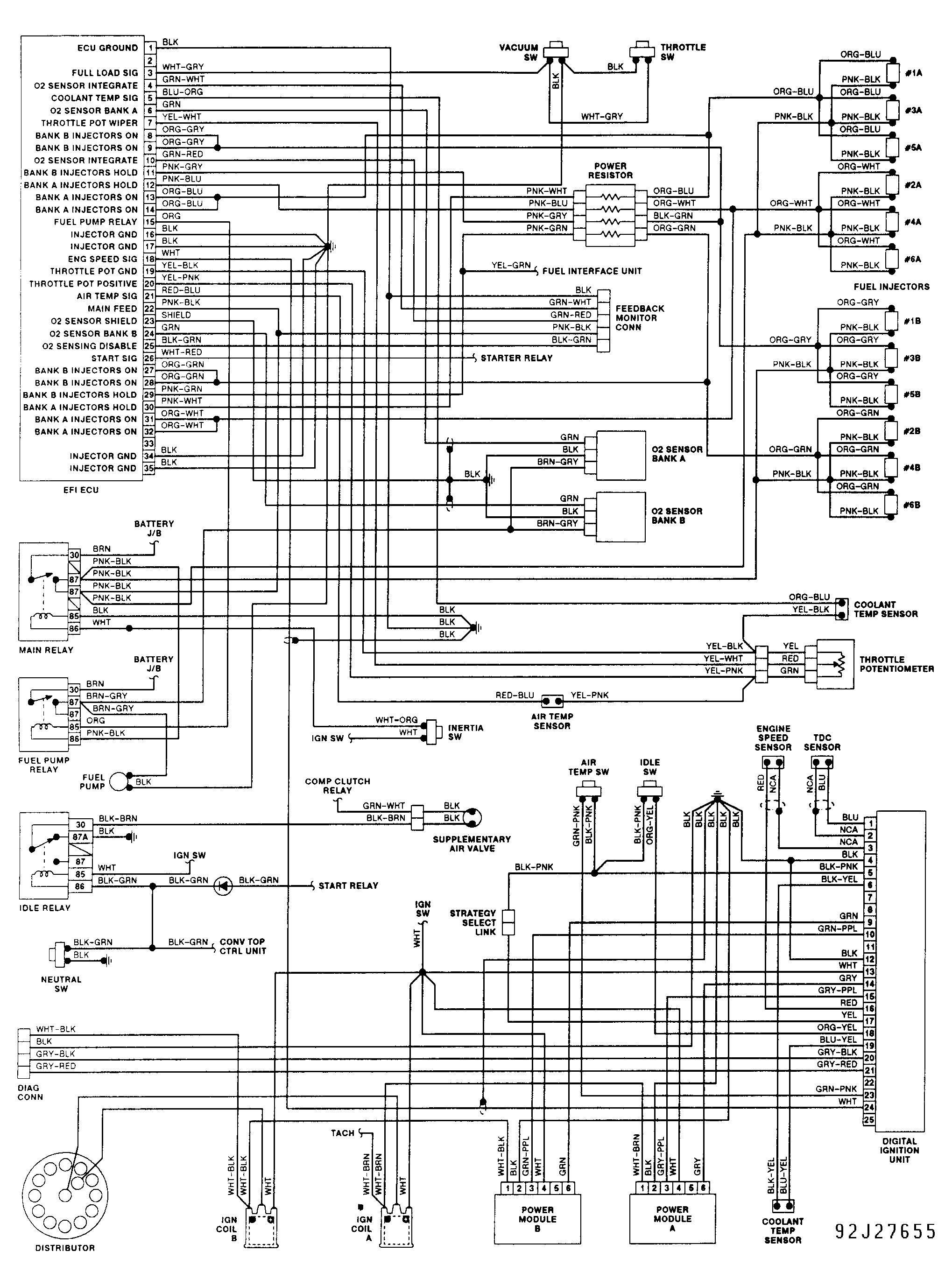

Fig 1: Wiring Diagram (XJS 5.3L)

G92J27655

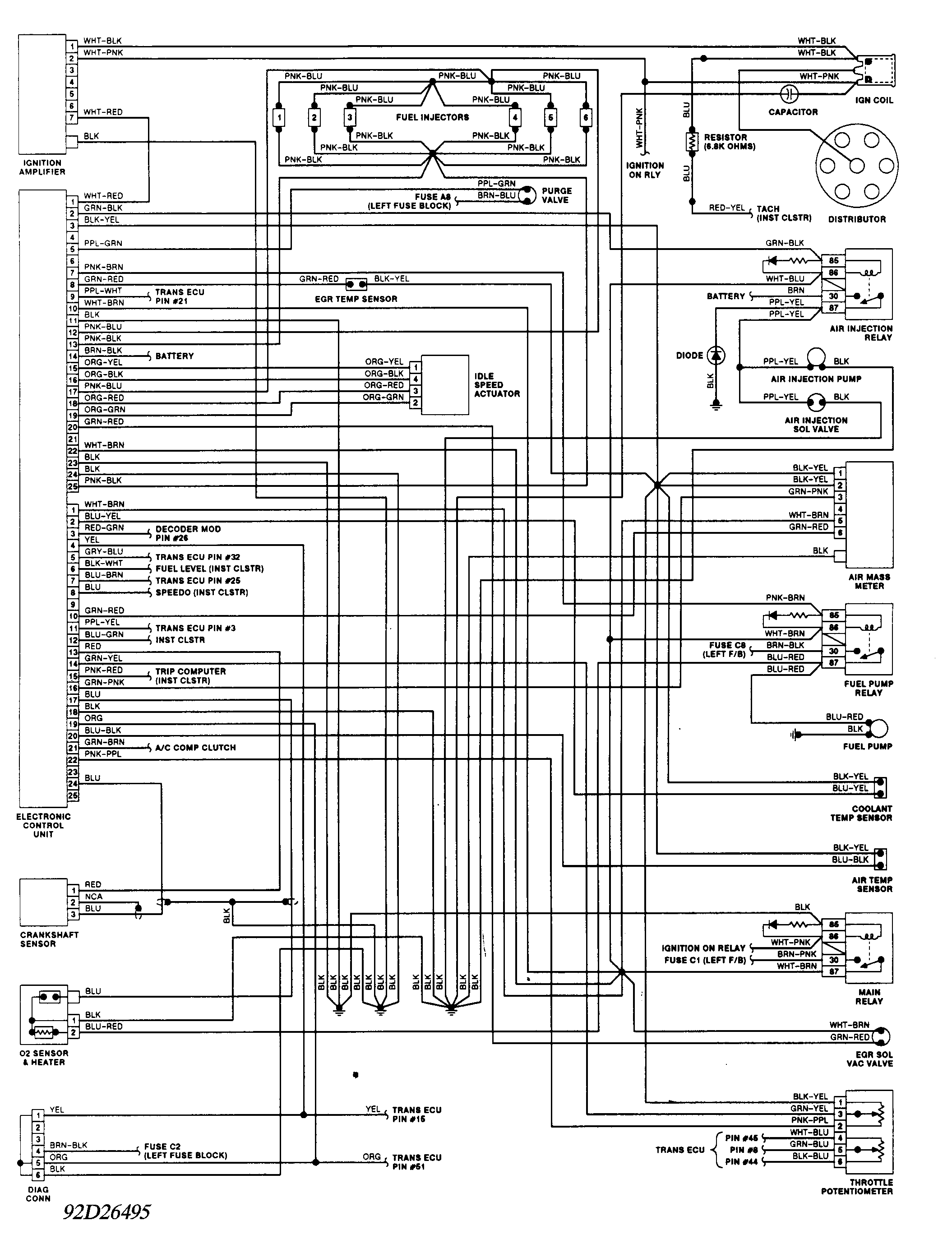

Fig 2: Wiring Diagram (XJ6 4.0L)

G92D26495
