Installation (XJS)

Lubricate and install new injector "O" rings. To complete installation, reverse removal procedure. Pressurize fuel system and check for leaks.

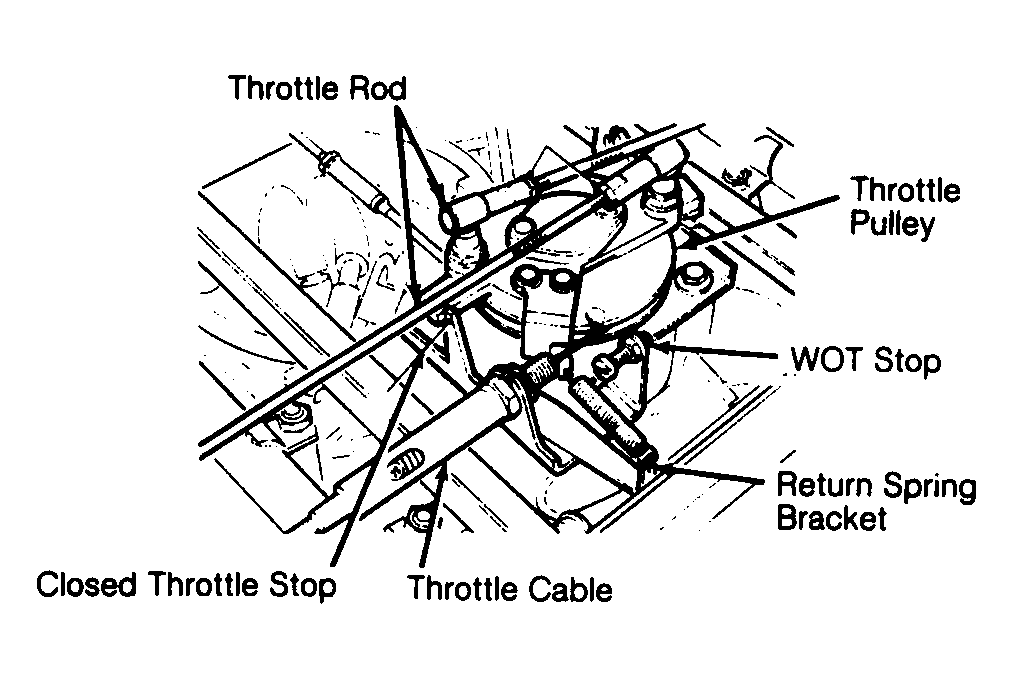

Fig 1: Identifying Throttle Linkage Components (XJS)
G91B17161Courtesy of JAGUAR CARS LTD.
