Selector Cable
- Remove console and place selector lever in "1" position on XJ6 models, and in "N" position on XJS models. Unscrew shift knob and remove indicator plate.

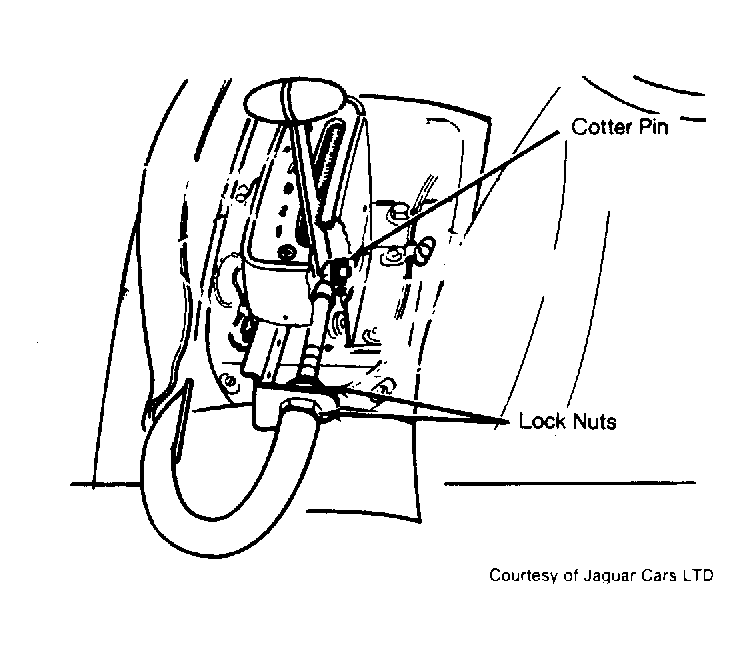

- Remove cotter pin and washer retaining cable to bracket on lever. Ensure transmission lever is in "1" position on XJ6 and in "N" position on XJS models.
- Adjust front and rear lock nuts until cable can be connected without selector or transmission lever being disturbed. Tighten lock nuts and secure cable with new cotter pin. Install selector plate and shift knob.
Courtesy of JAGUAR CARS LTD.
