Throttle Linkage
- Adjust throttle closed stop if necessary. Release throttle cross-rods from throttle pulley. Loosen clamps securing levers to rear of throttle shafts.
- With butterfly valve against closed stop, bell crank against stop, and play in coupling taken up in opening direction, tighten clamp to lock throttle lever to shaft. Repeat for other side of engine.

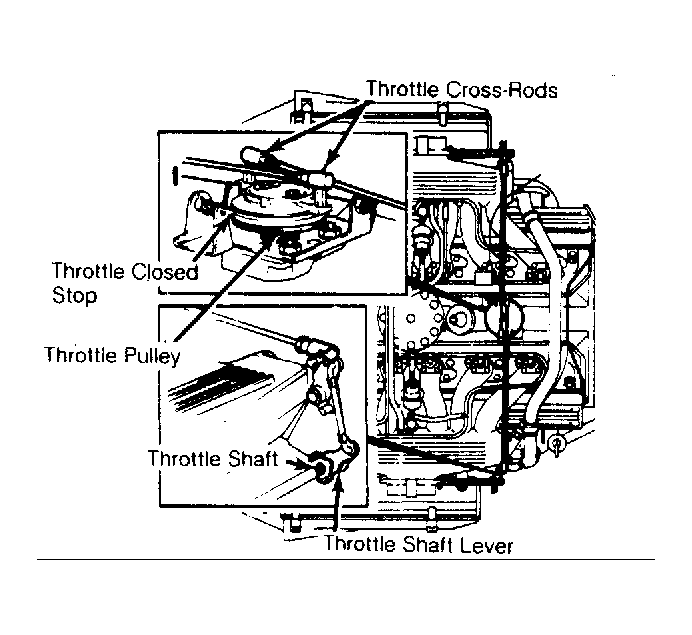

- Install cross-rods onto ball connectors on throttle pulley. See Fig 1
. The rods must go into place without moving linkage or pulley. If adjustment is necessary, loosen lock nuts on cross-rods and adjust length of rods so that they will align with ball connectors when pulley is against closed stop.
- Adjust fully open throttle stop so that it just touches pulley when throttle butterfly stop arms are against throttle housing. Check operation of throttle switch and kickdown switch.
