Fuel Injection System - LUCAS/BOSCH AFC: Wiring Diagram

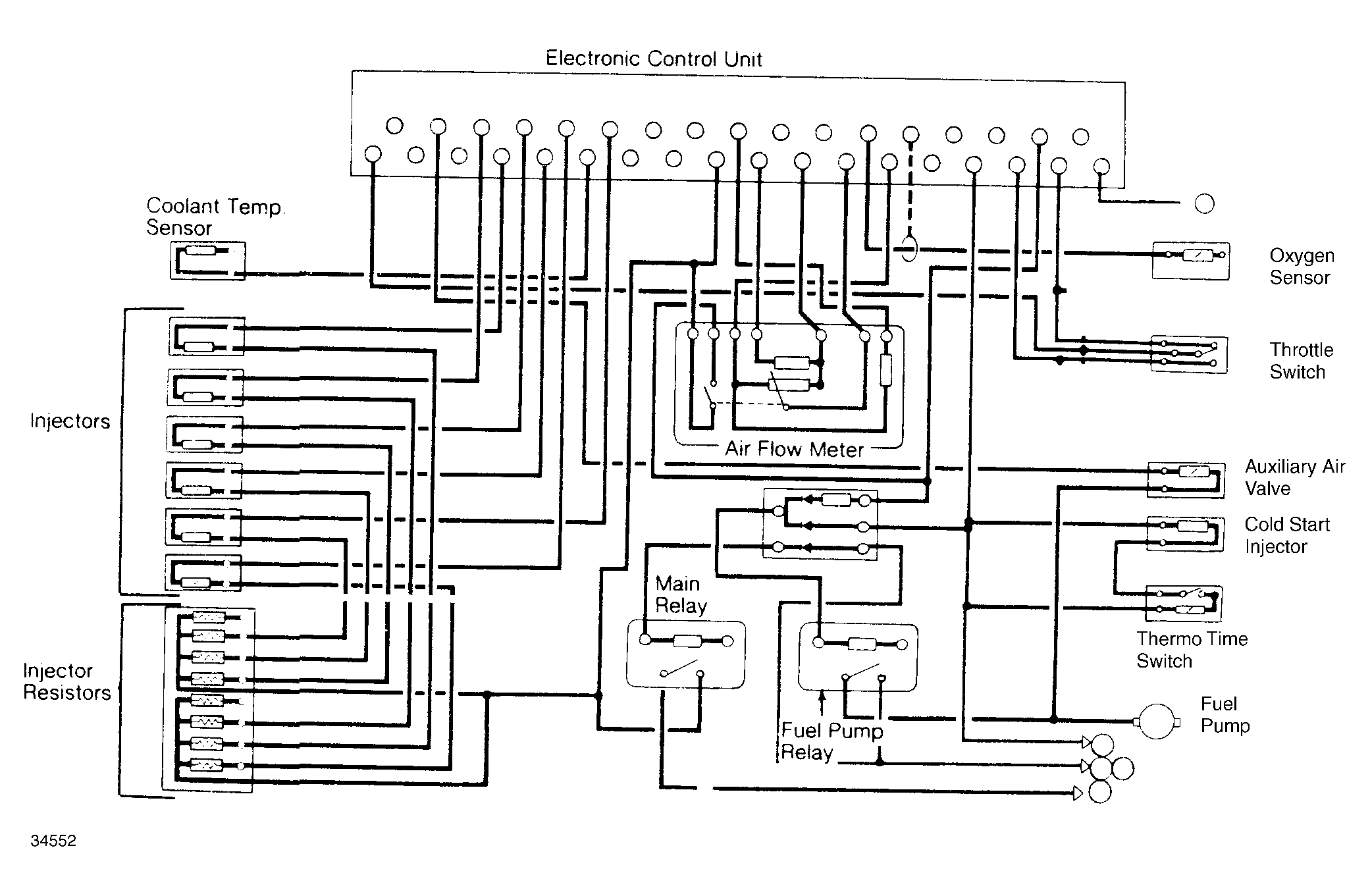

Fig 1: Fuel Injection Wiring Diagram (XJ6)

G34552
