Road Test
Drive vehicle on the road, allowing transmission to shift through all ranges. Note transmission performance under varying load conditions: Light throttle, full throttle, and kickdown. Transmission should operate smoothly but firmly, with no apparent slipping or engine speed flare-up. Compare transmission shift points with figures given in SHIFT SPEED SPECIFICATIONS table.
NOTE:

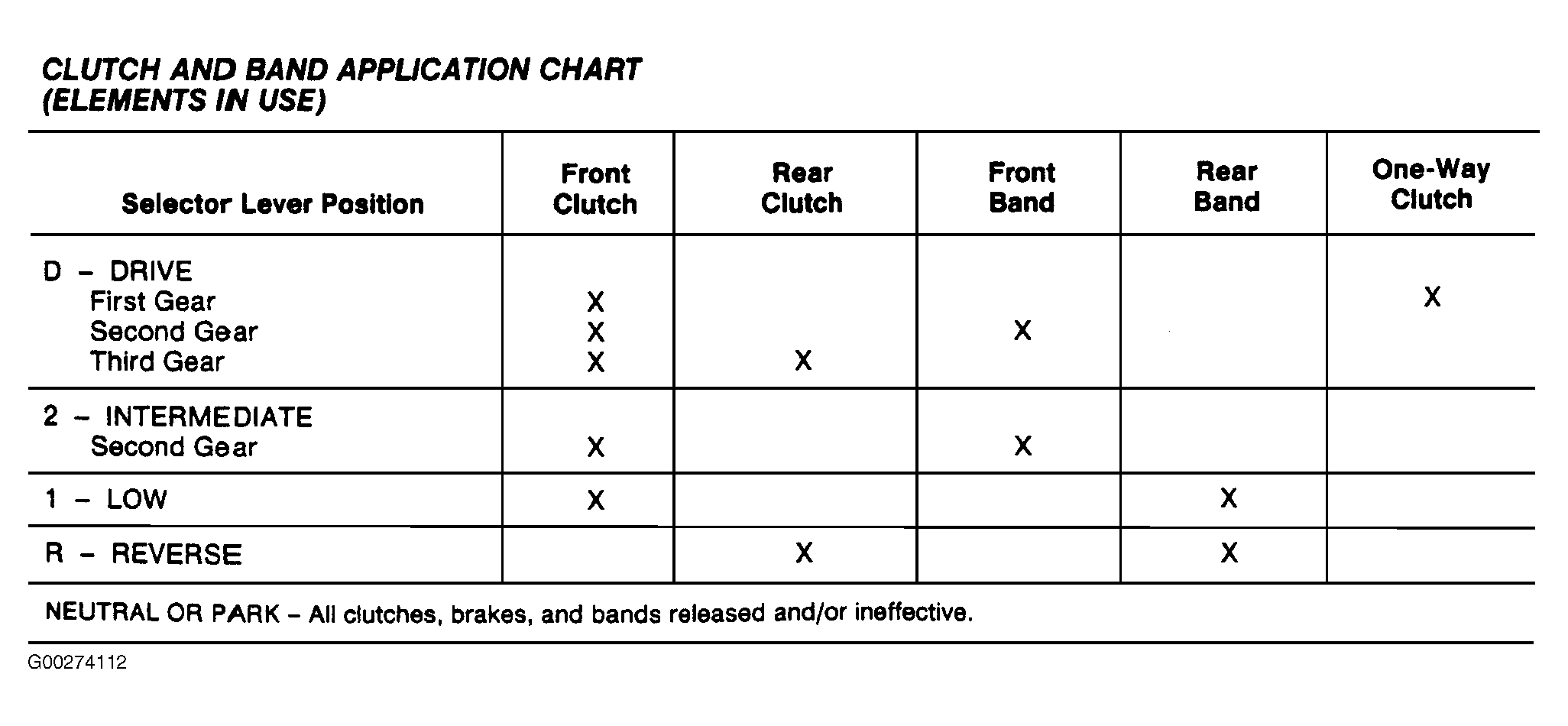

For Clucth and Band Applications Chart see Fig 1
.
NOTE:
Shift speeds may vary slightly due to production tolerances, rear axle ratio, or tire size.
SHIFT SPEED SPECIFICATIONS
| Shift Condition | MPH | |
|---|---|---|
| Part Throttle | ||
| 1-2 Upshift | 8-12 | |
| 2-3 Upshift | 13-18 | |
| Full Throttle | ||
| 1-2 Upshift | 41-51 | |
| 2-3 Upshift | 73-81 | |
| Full Throttle Kickdown | ||
| 3-2 Kickdown | 63-73 | |
| 3-1 Kickdown | 25-35 | |
| Part Throttle Kickdown | ||
| 3-2 Kickdown | 32-42 | |
| Closed Throttle Kickdown | ||
| 2-1 Kickdown | 5-10 | |
