Rotor Test

Connect ohmmeter leads to each slip ring. See Fig 1. Resistance should be between 3.8 and 5.2 ohms. With ohmmeter connected between a slip ring and alternator housing, reading should be infinity.

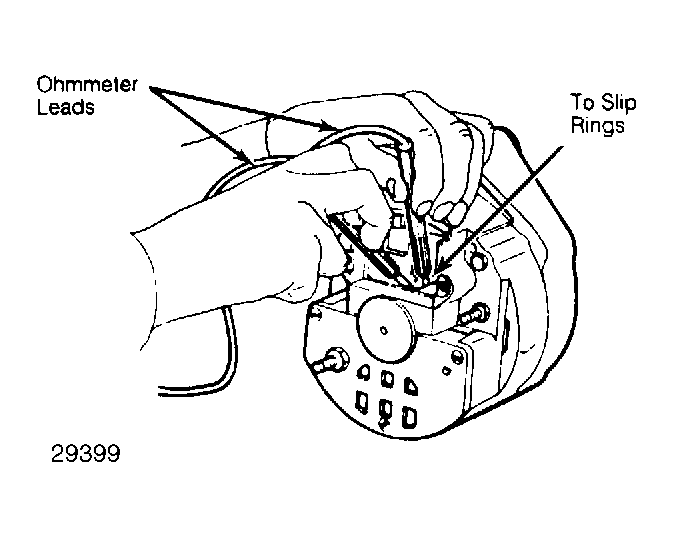

Fig 1: Checking Rotor Resistance with an Ohmmeter Leads should touch each slip ring.
