Alternator - MOTOROLA W/Integral Regulator: Description
NOTE:
Some XJ6 and XJS models use Lucas alternators. See appropriate article in this section.

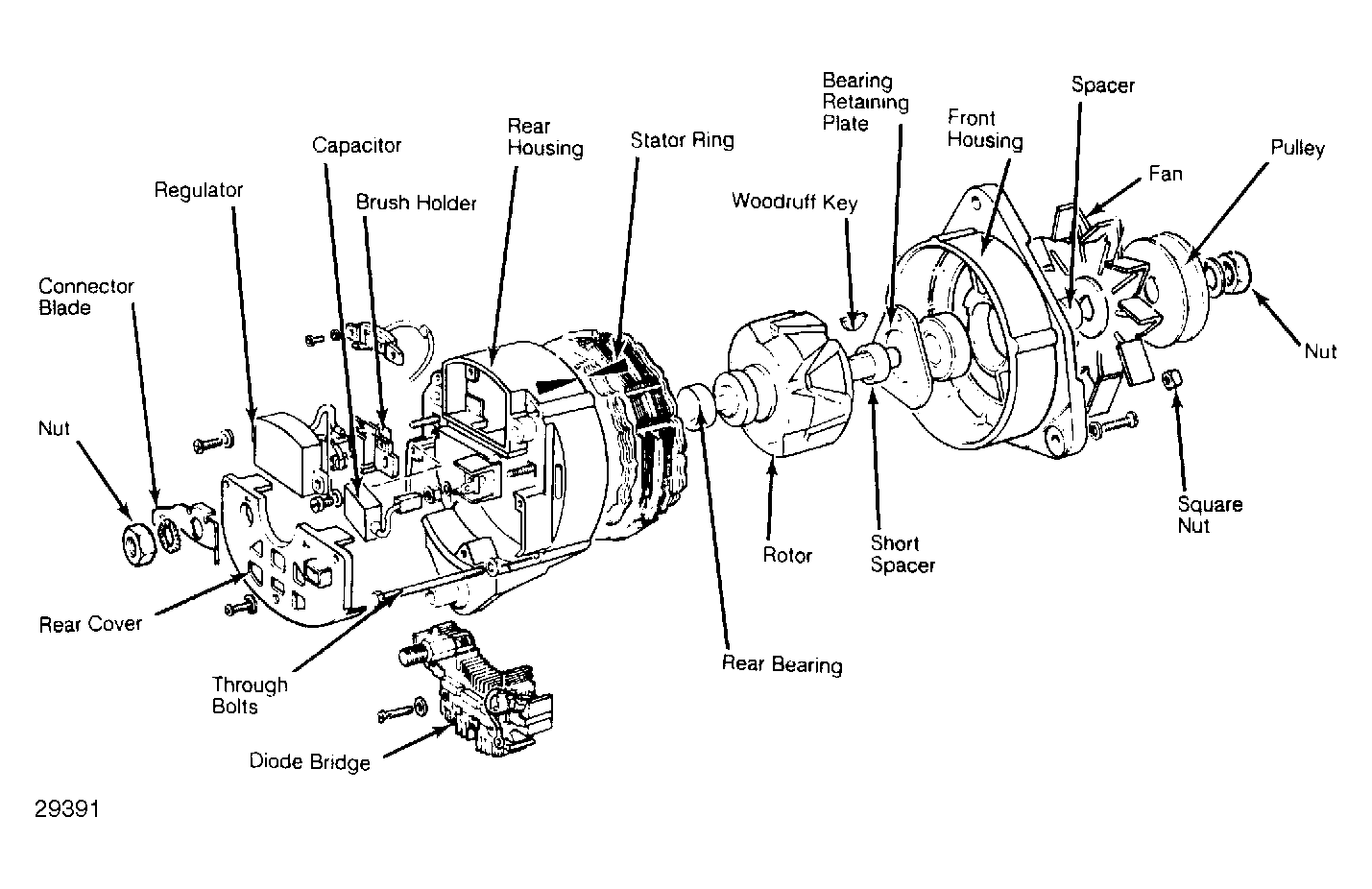

Motorola alternators are conventional 3-phase, self-rectifying type alternators. Six silicon diodes, 3 positive and 3 negative, are used to rectify AC current.
ALTERNATOR APPLICATION
| Model | Type |
|---|---|
| XJ6 With Air Conditioning (1983-84) | 9AR 2512P |
| XJS (1983) | 9AR 2533P |
