Field Diodes

Test in the same manner as above. Afterward, apply test probes between two of three diodes in turn. No reading should be obtained.

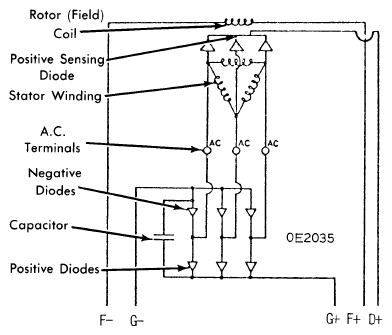

Fig 1: Internal Circuit Diagram

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
