Rear Suspension: Description

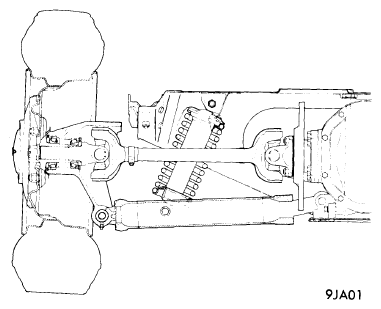

Independent, coil spring type suspension. Outer bearing carrier and hub assembly is supported by control arms at bottom and utilizes drive axles as upper support. Suspension is controlled by two coil spring/shock absorber assemblies mounted at each rear wheel. Movement of lower control arms are controlled by radius arms connected to control arms at rear and to chassis members at front.
