Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Envoy and 2009 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

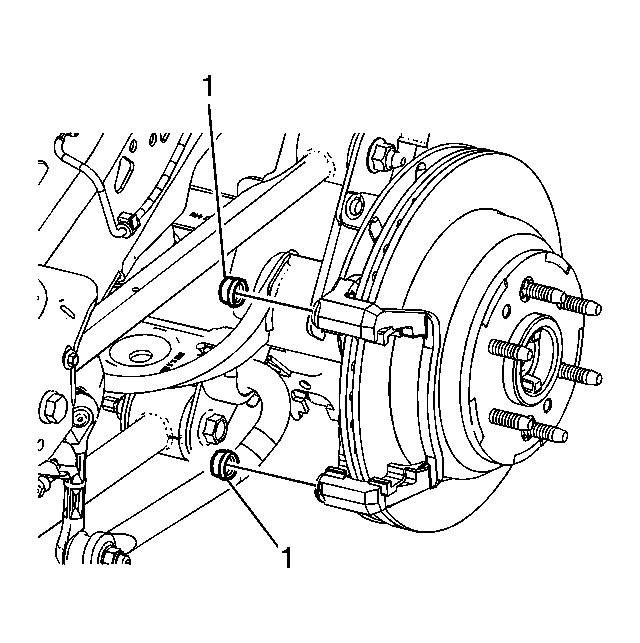

    Fig 1: Identifying Brake Caliper Guide Pin Seals (Rear)
    GM2050211Courtesy of GENERAL MOTORS CORP.
  1. Install the brake caliper guide pin seals (1).

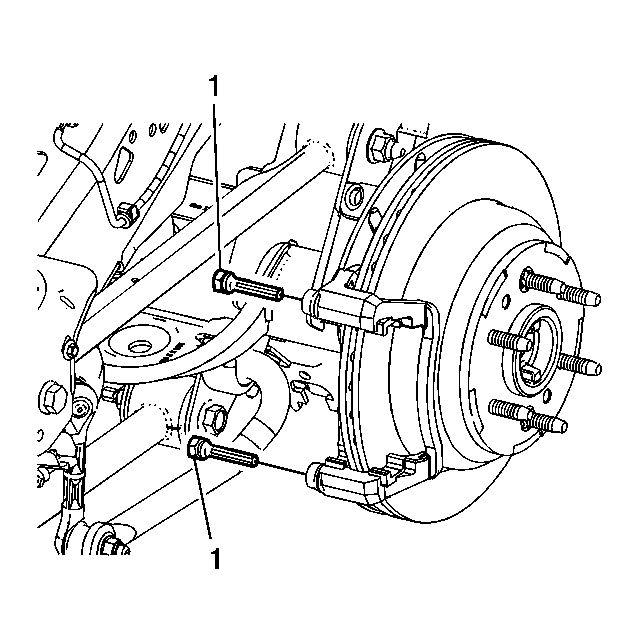

    2. Fig 2: Identifying Upper And Lower Guide Pins (Rear)
    GM2050210Courtesy of GENERAL MOTORS CORP.
  2. Apply a light coat of high temperature silicone brake lubricant to the brake caliper guide pins.
  3. Install the upper and lower guide pins (1).

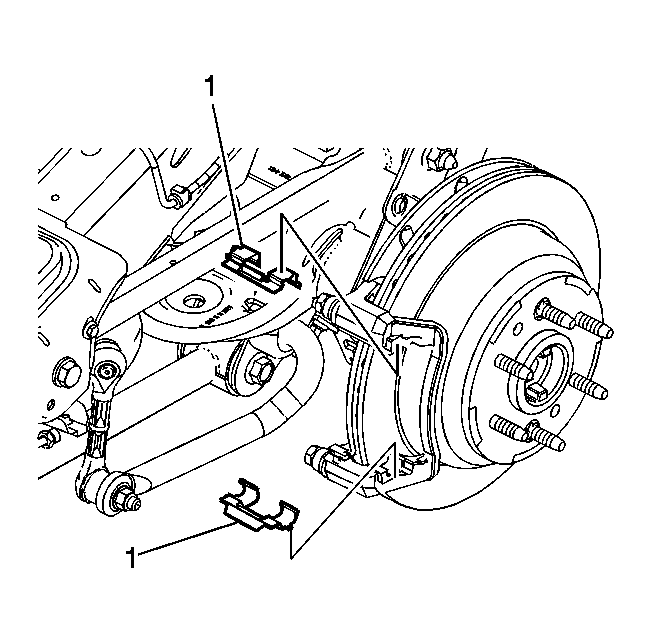

    4. Fig 3: Identifying Brake Pad Shims (Rear)
    GM2050209Courtesy of GENERAL MOTORS CORP.
  4. Apply a light coat of high temperature silicone brake lubricant to the brake pad shims.
  5. Install the brake pad shims (1).

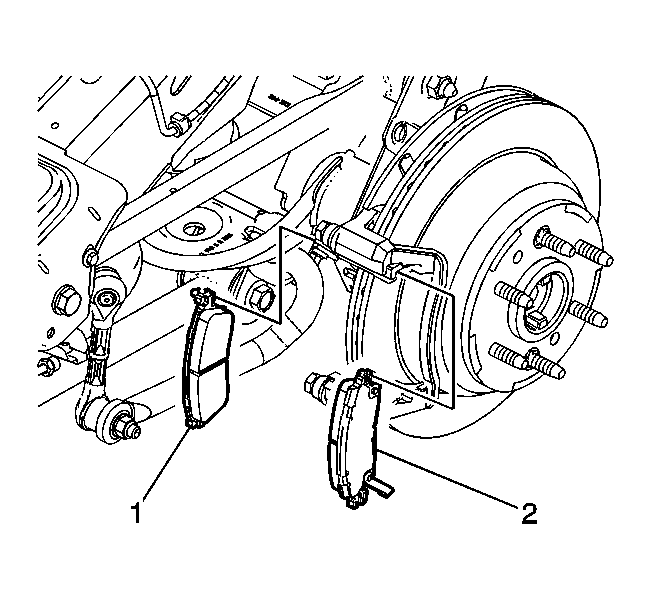

    6. Fig 4: Identifying Inner & Outer Brake Pads (Rear)
    GM2050208Courtesy of GENERAL MOTORS CORP.
  6. Install the inner (1) and outer (2) brake pads.

    Note the location of the brake pad wear sensors for correct installation.

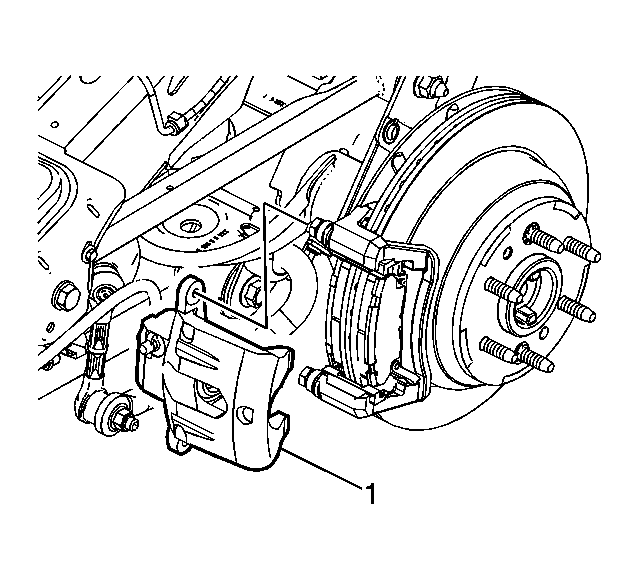

    7. Fig 5: Identifying Brake Caliper (Rear)
    GM2050207Courtesy of GENERAL MOTORS CORP.
  7. Install the brake caliper (1) to the caliper bracket.

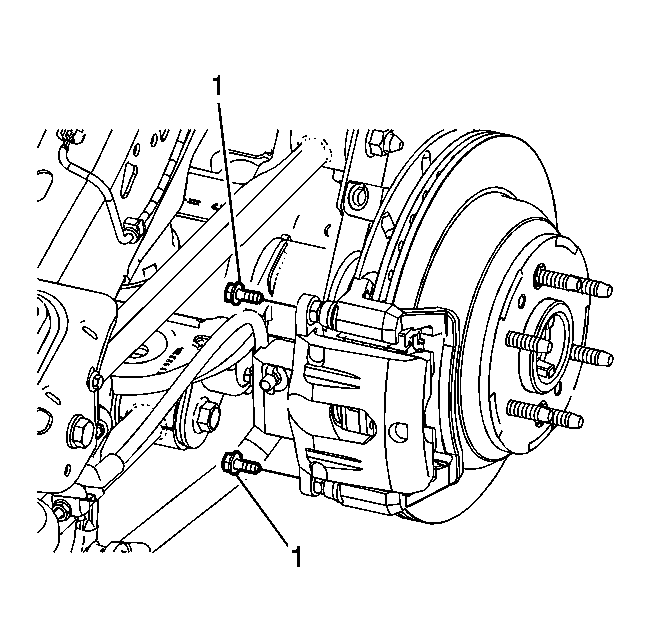

    8. Fig 6: Identifying Brake Caliper Guide Pin Bolts (Rear)
    GM2050206Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  8. Install the brake caliper guide pin bolts (1) and tighten the bolts to 31 N.m (23 lb ft).
  9. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  10. Lower the vehicle.
