Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Envoy and 2009 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

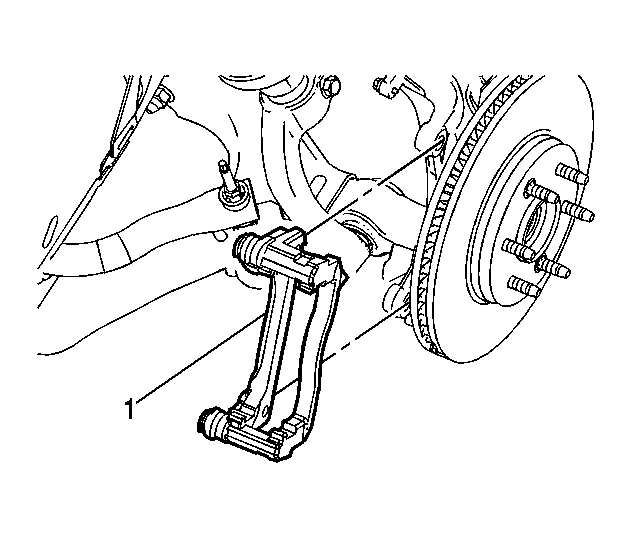

    Fig 1: Identifying Brake Caliper Bracket (Front)
    GM2050213Courtesy of GENERAL MOTORS CORP.
  1. Install the brake caliper bracket (1).
    2. CAUTION: Refer to Fastener Caution .

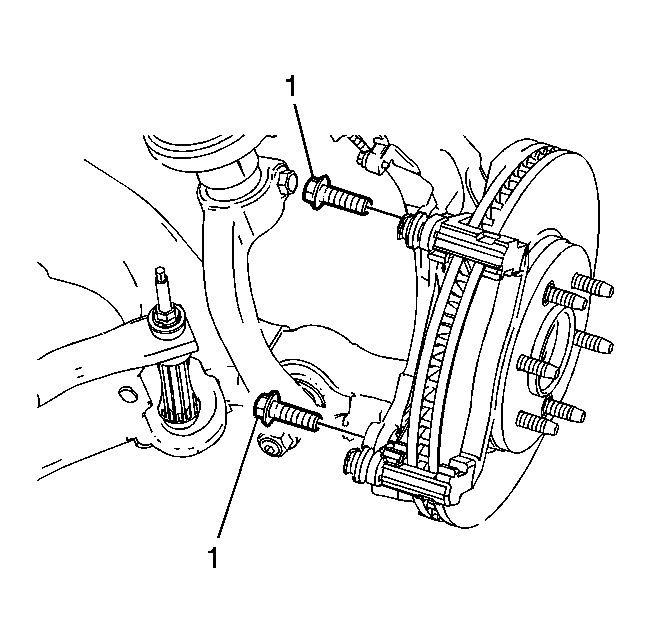

    Fig 2: Identifying Brake Caliper Bracket Bolts (Front)
    GM2050212Courtesy of GENERAL MOTORS CORP.
  2. Install the brake caliper bracket bolts (1) and tighten the bolts to 160 N.m (118 lb ft).
    3. Fig 3: Identifying Brake Pad Shims (Front)
    GM2049758Courtesy of GENERAL MOTORS CORP.
  3. Install the brake pad shims (1).
    4. Fig 4: Identifying Inner & Outer Brake Pads (Front)
    GM2049757Courtesy of GENERAL MOTORS CORP.
  4. Install the inner (1) and outer (2) brake pads.

    Note the location of the wear sensors for correct installation.

    5. Fig 5: Identifying Brake Caliper (Front)
    GM2049755Courtesy of GENERAL MOTORS CORP.
  5. Install the brake caliper (1) to the bracket.
    6. Fig 6: Identifying Brake Caliper Guide Pin Bolts (Front)
    GM2049742Courtesy of GENERAL MOTORS CORP.
  6. Loosely install the brake caliper guide pin bolts.
  7. Tighten the upper brake caliper guide pin bolt (1) to 42 N.m (31 lb ft).
  8. Tighten the lower brake caliper guide pin bolt (2) to 42 N.m (31 lb ft).
  9. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  10. Lower the vehicle.
