Removal Procedure

  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the rear wheel speed sensor. Refer to Rear Wheel Speed Sensor Replacement .
  4. Remove the rear axle housing cover. Refer to Rear Axle Housing Cover and Gasket Replacement (8.0/8.6 Inch Axle) or Rear Axle Housing Cover and Gasket Replacement (9.5 Inch Axle) .
  5. Remove the axle shaft. Refer to Rear Axle Shaft Replacement .

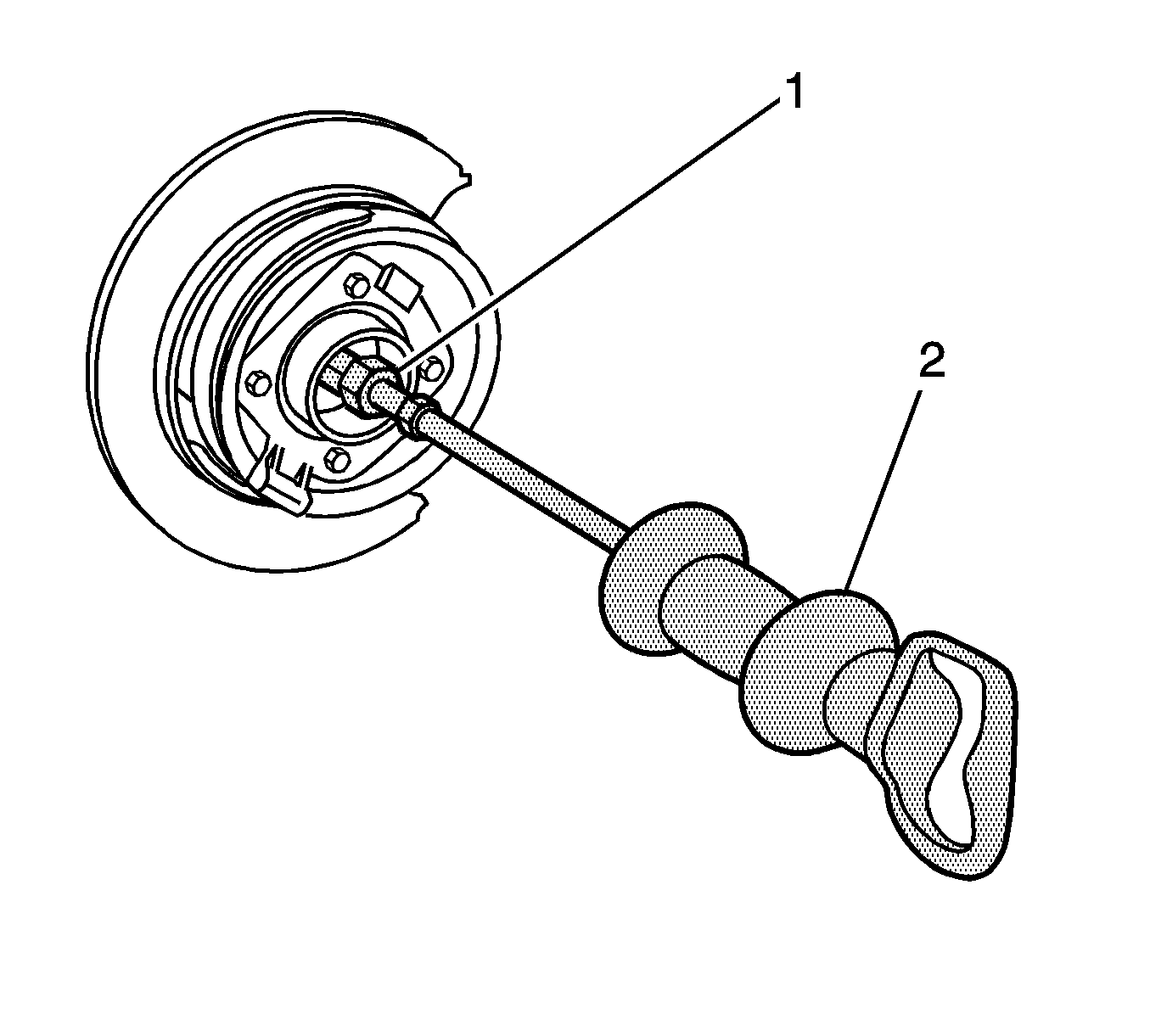

    6. Fig 1: View Of Wheel Speed Sensor Ring, Axle Housing & Removal Tool
    GM889095Courtesy of GENERAL MOTORS CORP.
  6. Remove the axle shaft seal, the bearing and the wheel speed sensor ring from the axle housing using the J 45857  (1) and the J 2619-01  (2). See Special Tools .
