Removal Procedure

WARNING: This page is about a different car, the 2009 GMC Envoy and 2009 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Refer to Brake Dust Warning .

CAUTION: Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

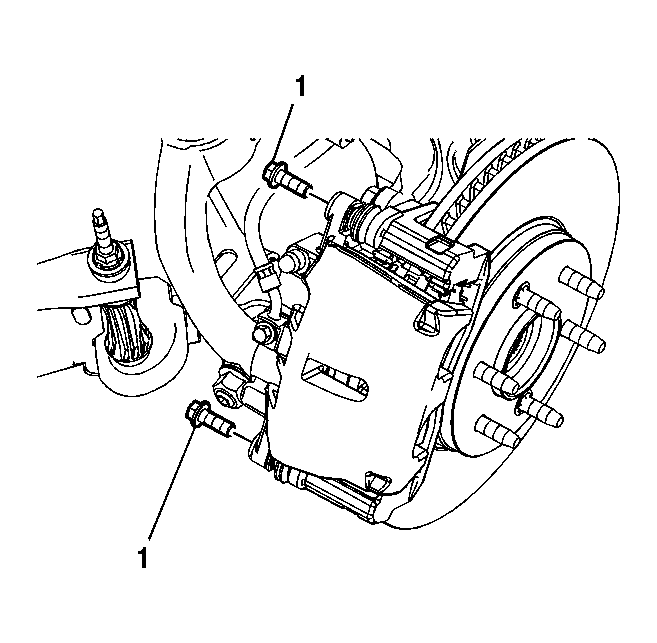

Fig 1: Identifying Brake Caliper Guide Pin Bolts (Front)

GM2049753

Courtesy of GENERAL MOTORS CORP.

Remove the brake caliper guide pin bolts (1).

Fig 2: Identifying Brake Caliper (Front)

GM2049755

Courtesy of GENERAL MOTORS CORP.

Without disconnecting the brake caliper hose, remove the brake caliper (1) and support with heavy mechanics wire or equivalent.

Fig 3: Identifying Inner & Outer Brake Pads (Front)

GM2049757

Courtesy of GENERAL MOTORS CORP.

Remove the inner (1) and outer (2) brake pads.
Note the location of the brake pad wear sensors for correct installation.

Fig 4: Identifying Brake Pad Shims (Front)

GM2049758

Courtesy of GENERAL MOTORS CORP.

Remove the brake pad shims (1).

Fig 5: Identifying Guide Pins (Front)

GM2049759

Courtesy of GENERAL MOTORS CORP.

Remove the upper guide pin (1).
Remove the lower guide pin (2).
Note the bushing on the lower guide pin. The lower guide pin must be installed in the same location.

Fig 6: Identifying Guide Pin Seals (Front)

GM2049761

Courtesy of GENERAL MOTORS CORP.

Remove the guide pin seals (1).
Clean the brake caliper bracket contact surfaces with denatured alcohol and allow to dry.
