Data Communication Schematics

WARNING: This page is about a different car, the 2008 Saab 9-7X. However, it is still accessible from the selected car via links, so may be relevant.

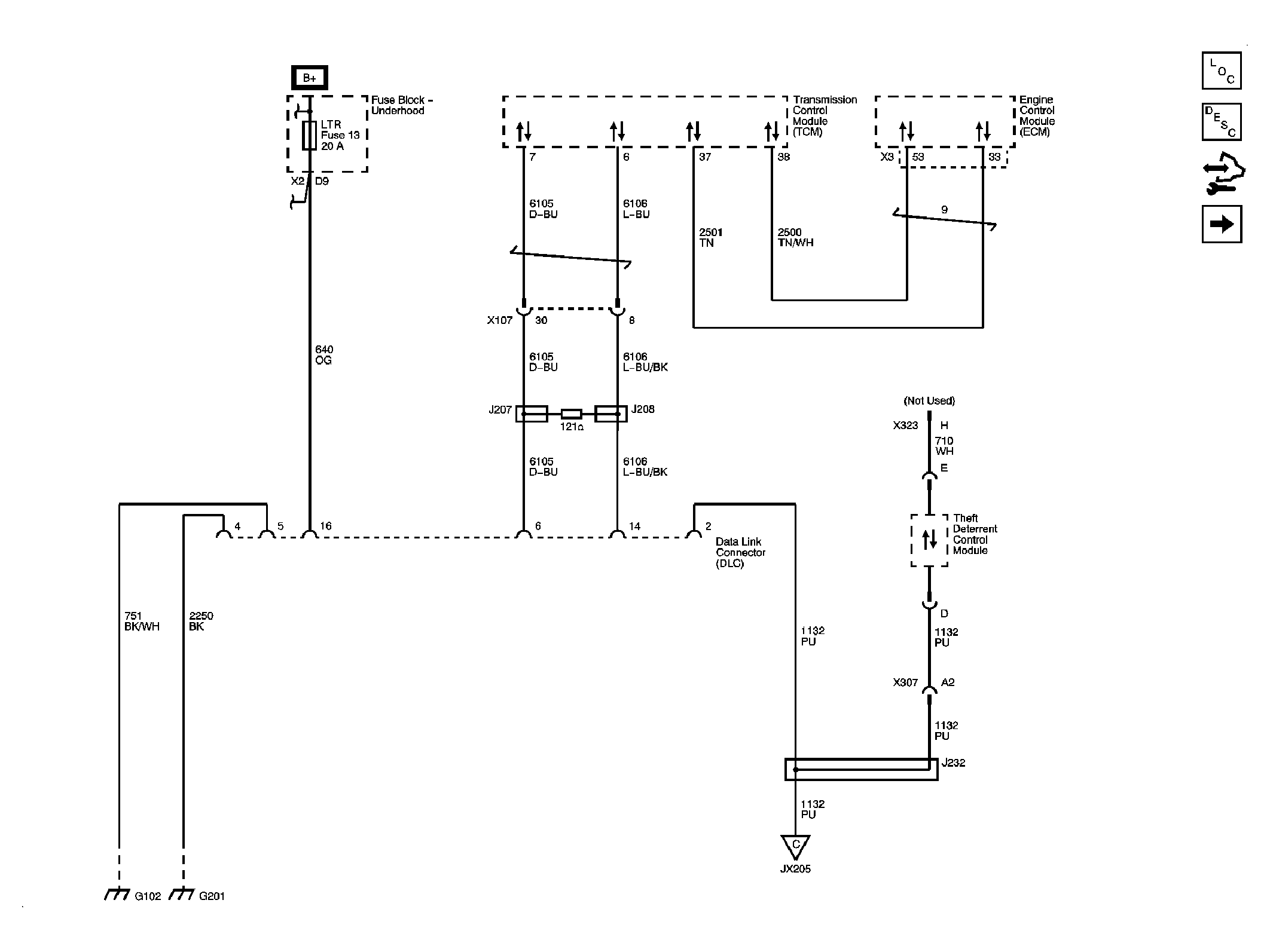

Fig 1: Power, Ground, and Data Link Connector
GM1928568Courtesy of GENERAL MOTORS CORP.

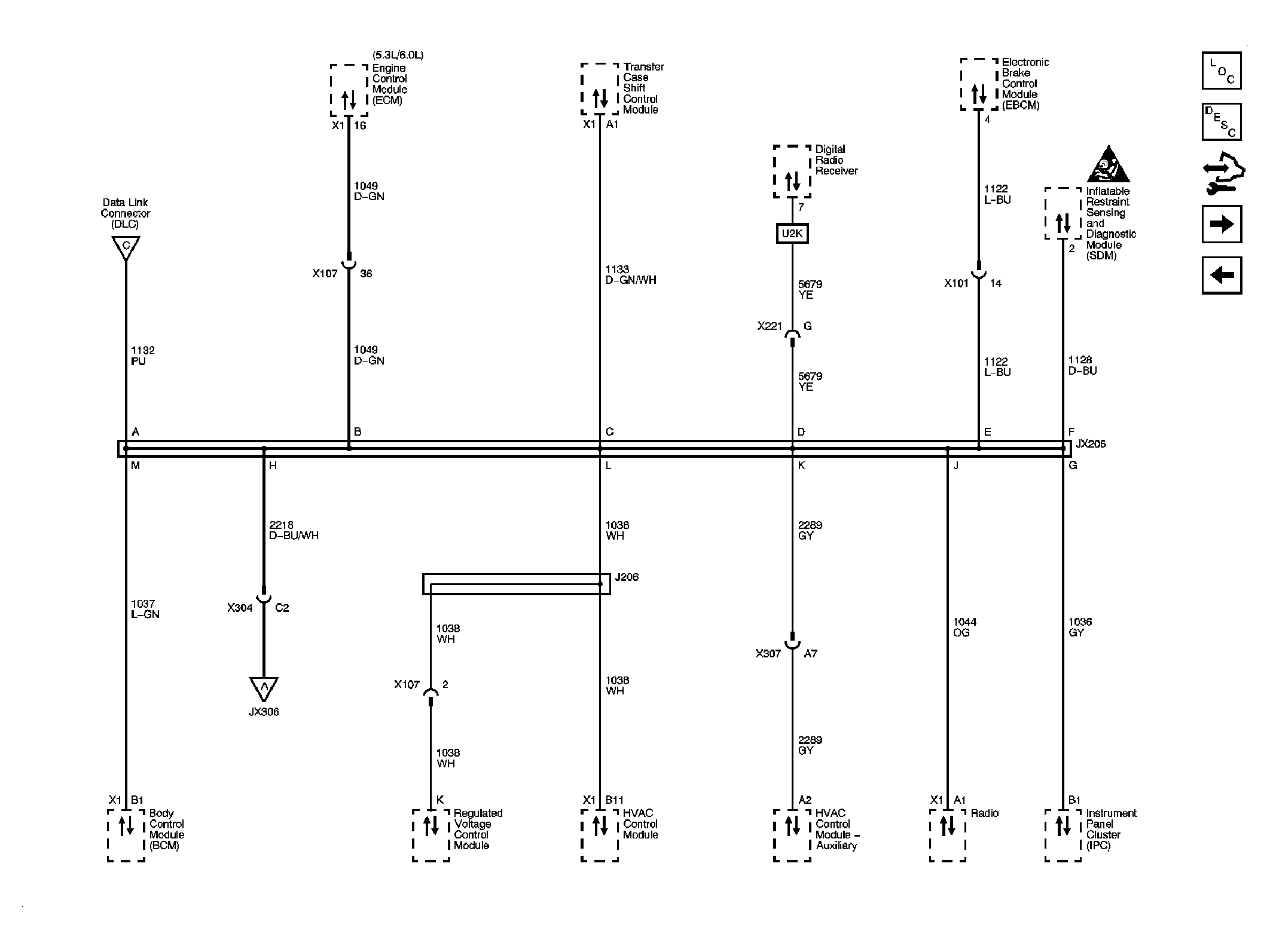

Fig 2: JX205
GM1928649Courtesy of GENERAL MOTORS CORP.

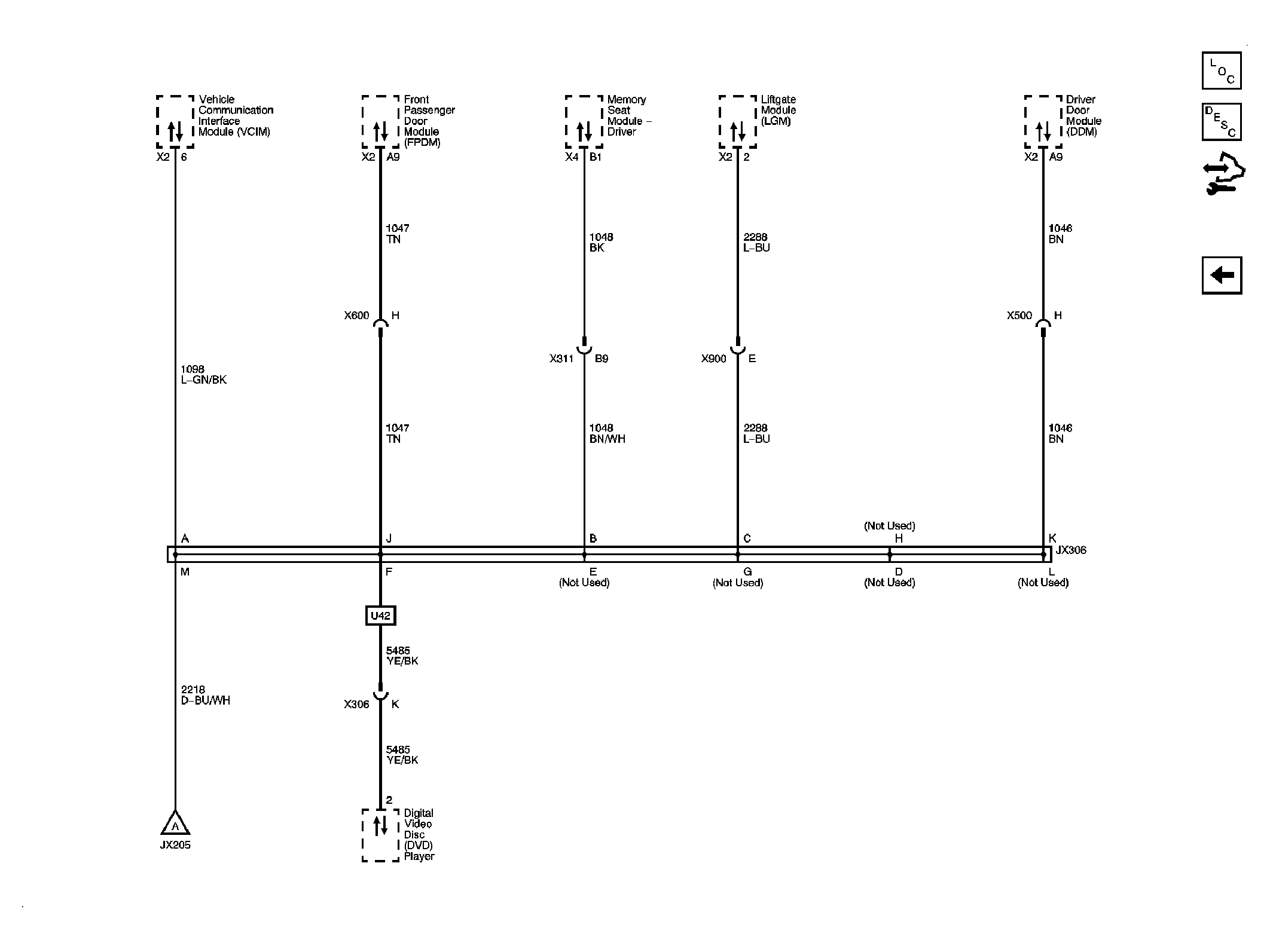

Fig 3: JX306
GM1928663Courtesy of GENERAL MOTORS CORP.
