Power Outlet Component Views

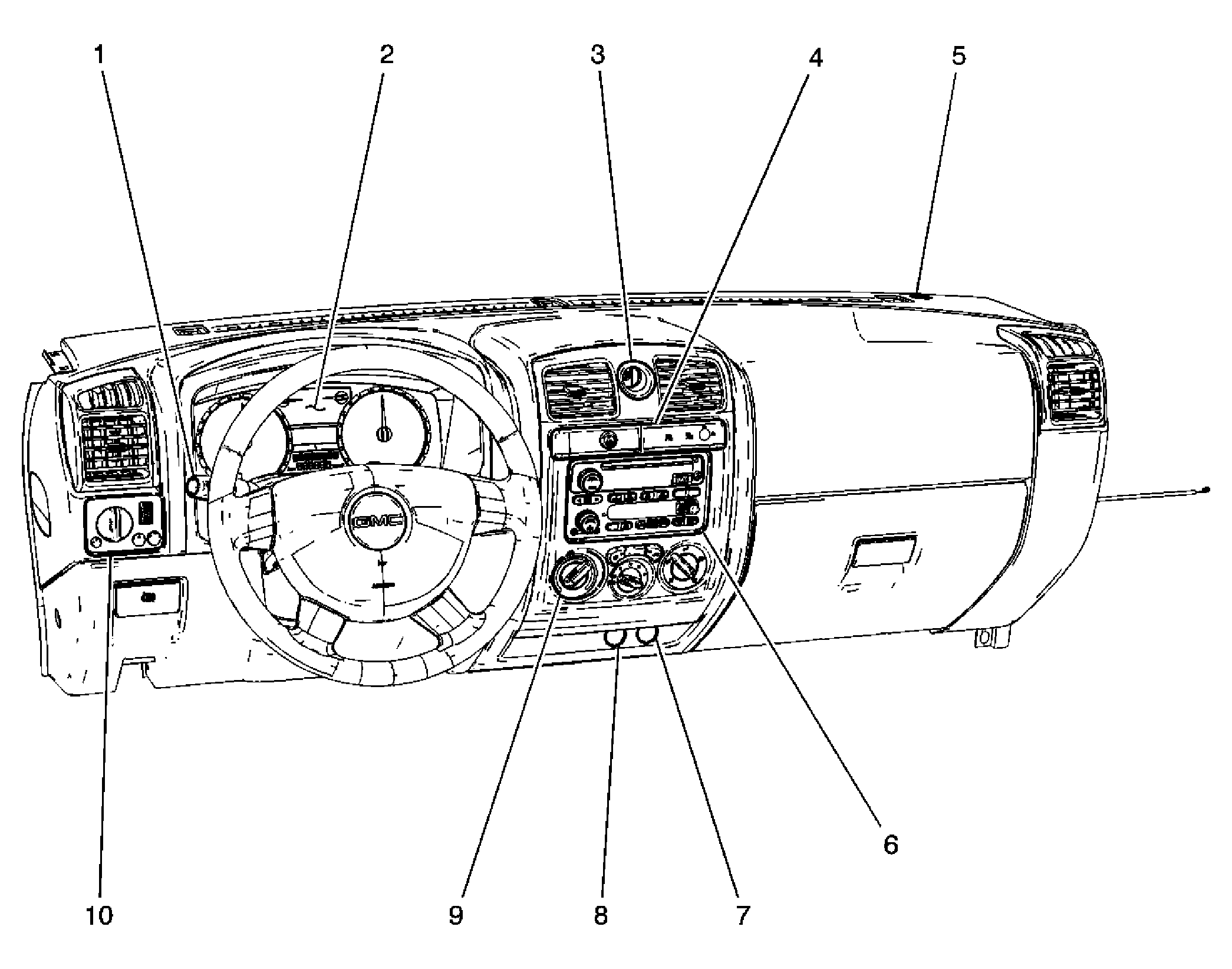

Fig 1: Center Of I/P Component View
GM1352015Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Instrument Panel Cluster (IPC)
3 Hazard Switch
4 Accessory Switch
5 Ambient Light Sensor
6 Radio
7 Auxiliary Power Outlet 2
8 Auxiliary Power Outlet 1
9 HVAC Control Module
10 Headlamp and Panel Dimmer Switch
