Installation Procedure

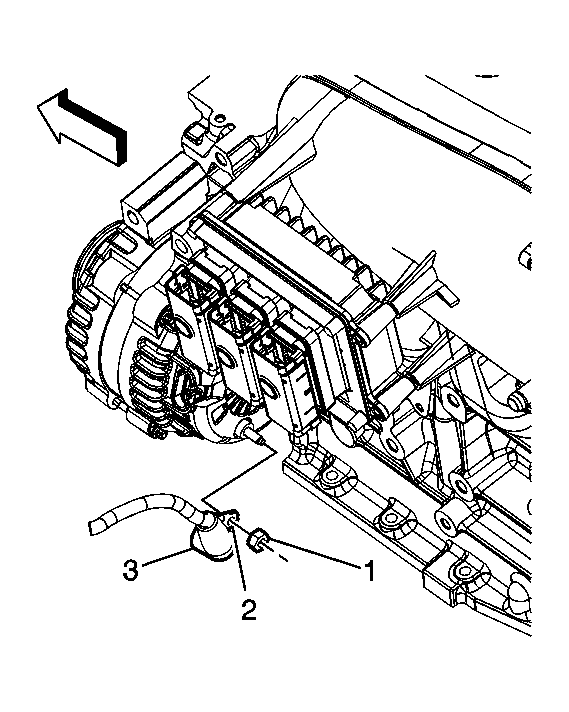

    Fig 1: View Of Positive Battery Cable Boot
    GM1804781Courtesy of GENERAL MOTORS CORP.
  1. Position the battery positive cable in the engine compartment.
  2. Install the positive battery cable to the generator.
    3. NOTE: Refer to Fastener Notice .
  3. Install the positive battery cable terminal nut (1).

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

  4. Position the positive battery cable boot (3).
    5. Fig 2: Locating Negative Battery Cable
    GM1804782Courtesy of GENERAL MOTORS CORP.
  5. Install the positive battery cable terminal (2) to the starter.
  6. Install the positive battery cable nut (1) to the starter.

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

  7. Install the battery positive cable harness to the fir-tree retainer on the PCM bracket.
  8. Install the battery positive cable into the conduit.
  9. Connect the battery cable conduit to the conduit retaining clip.

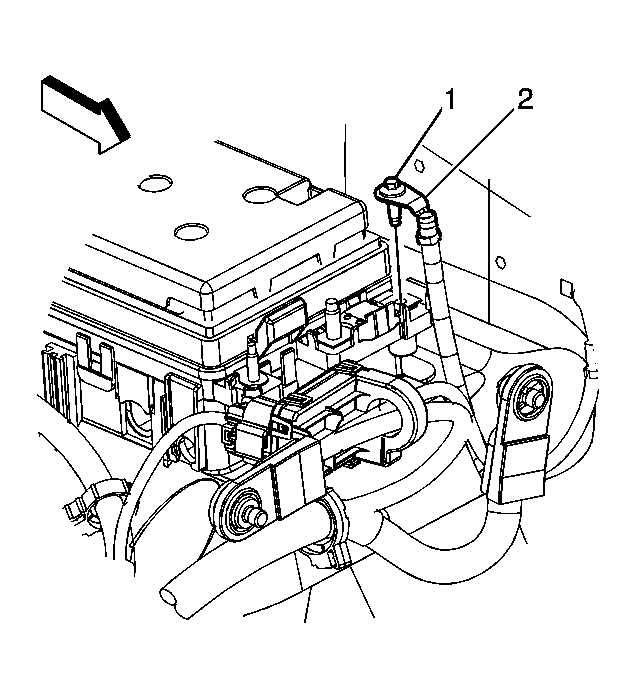

    10. Fig 3: Locating Positive Battery Cable Terminal Bolt & Junction Block
    GM1804778Courtesy of GENERAL MOTORS CORP.
  10. Install the positive battery cable terminal (2) to the junction block.
  11. Tighten the positive battery cable terminal bolt (1) at the junction block.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

    12. Fig 4: View Of Battery & Cables
    GM1804767Courtesy of GENERAL MOTORS CORP.
  12. Install the positive battery cable (1) to the battery.
  13. Tighten the battery positive cable bolt.

    Tighten:  Tighten the bolt to 15 N.m (11 lb ft).

  14. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
