Cruise Control Schematics
Cruise Control Schematics

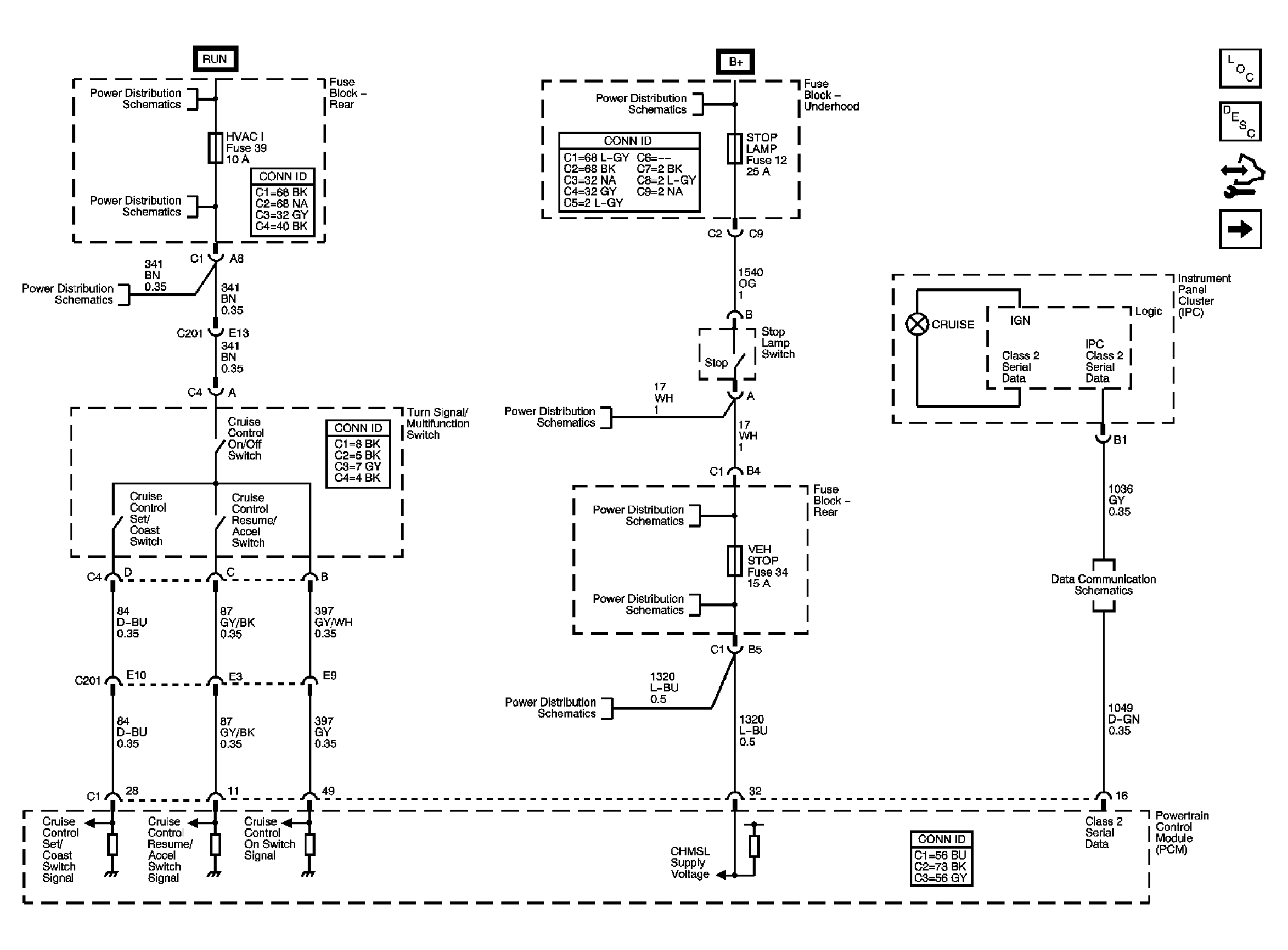

Fig 1: Cruise Control Schematic - 4.2L
Courtesy of GENERAL MOTORS CORP.

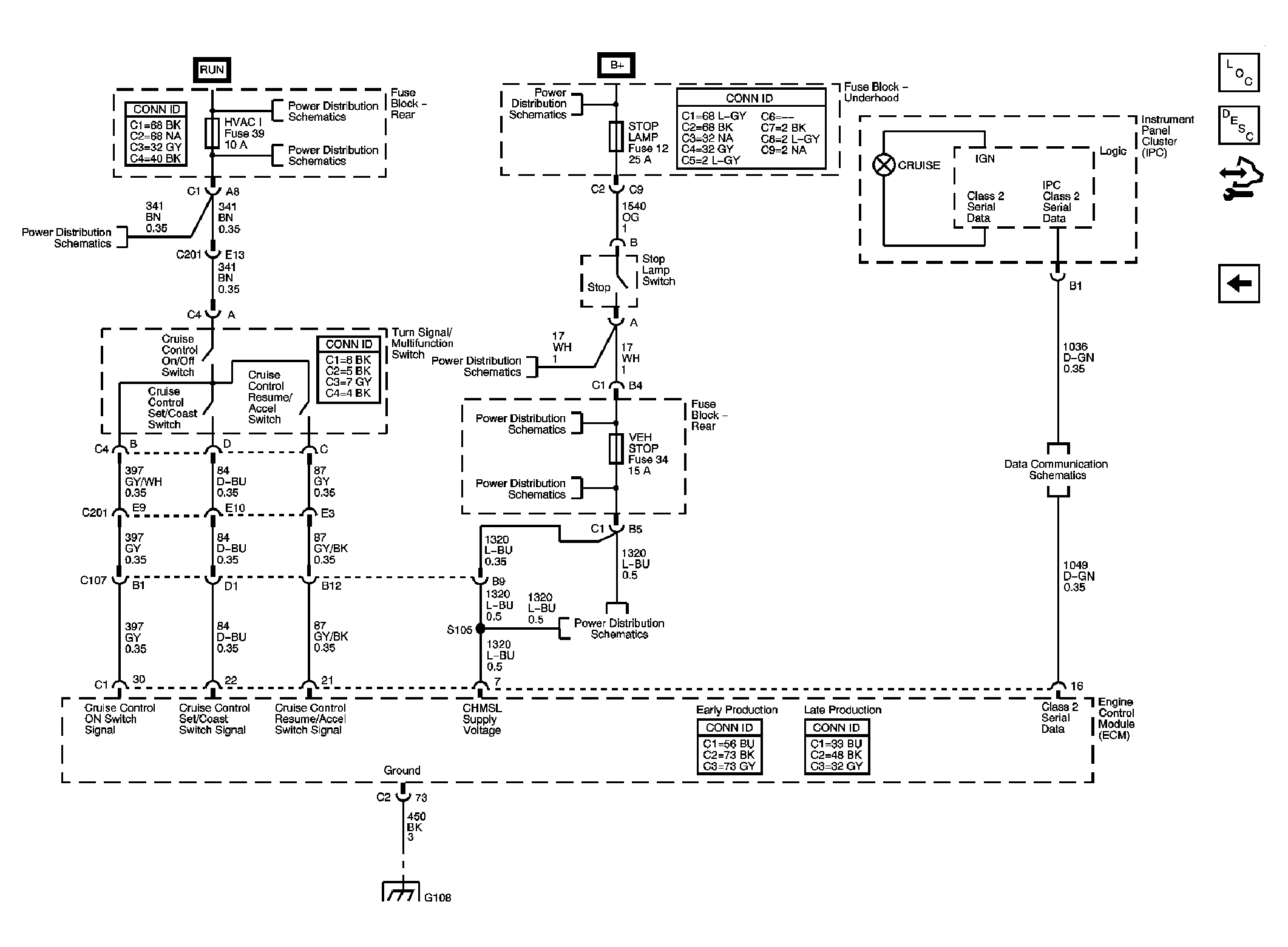

Fig 2: Cruise Control Schematic - 5.3L/6.0L
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
