Body Control System Schematics

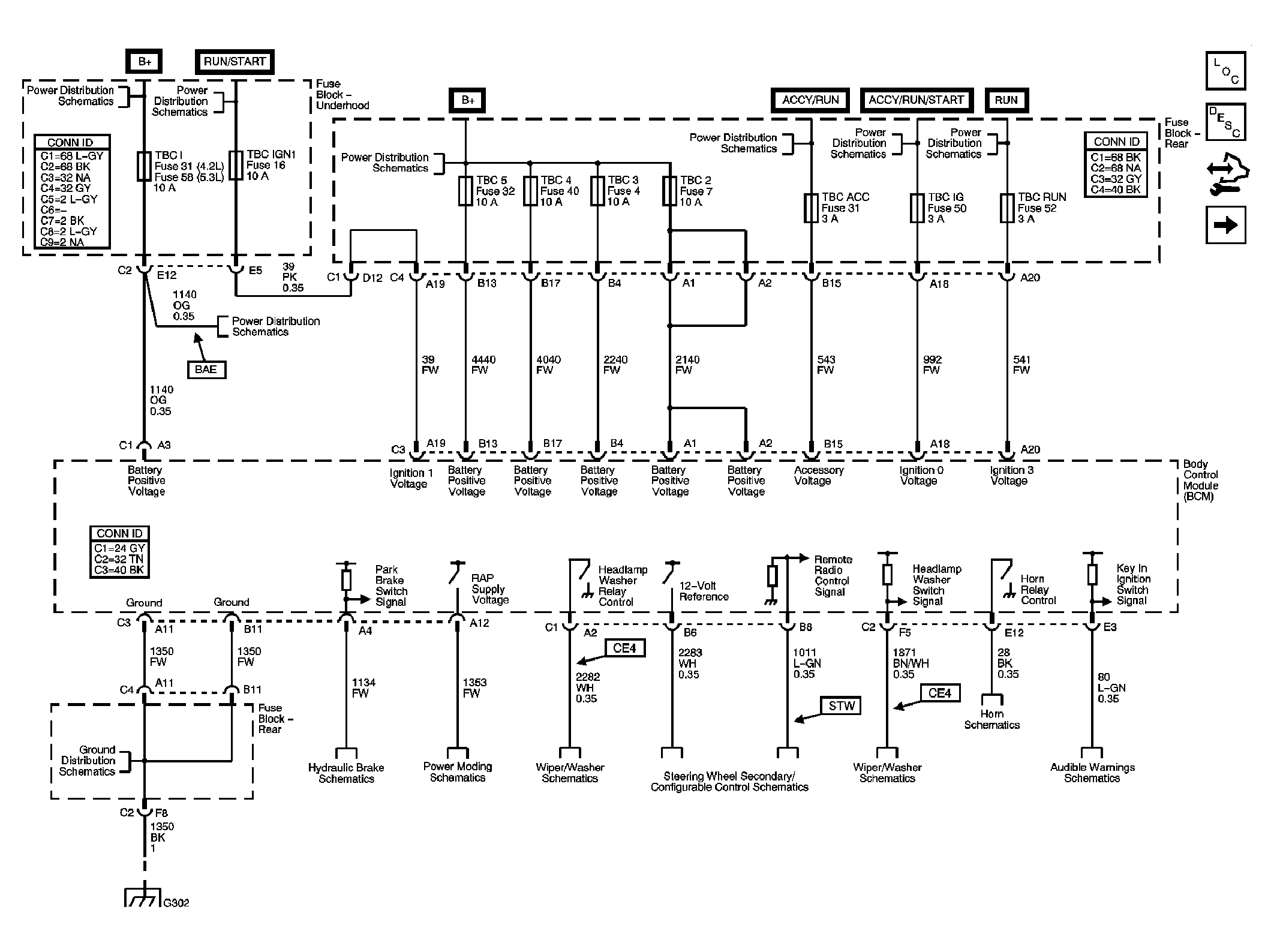

Fig 1: BCM Module Power & Ground Schematic
GM1748034Courtesy of GENERAL MOTORS CORP.

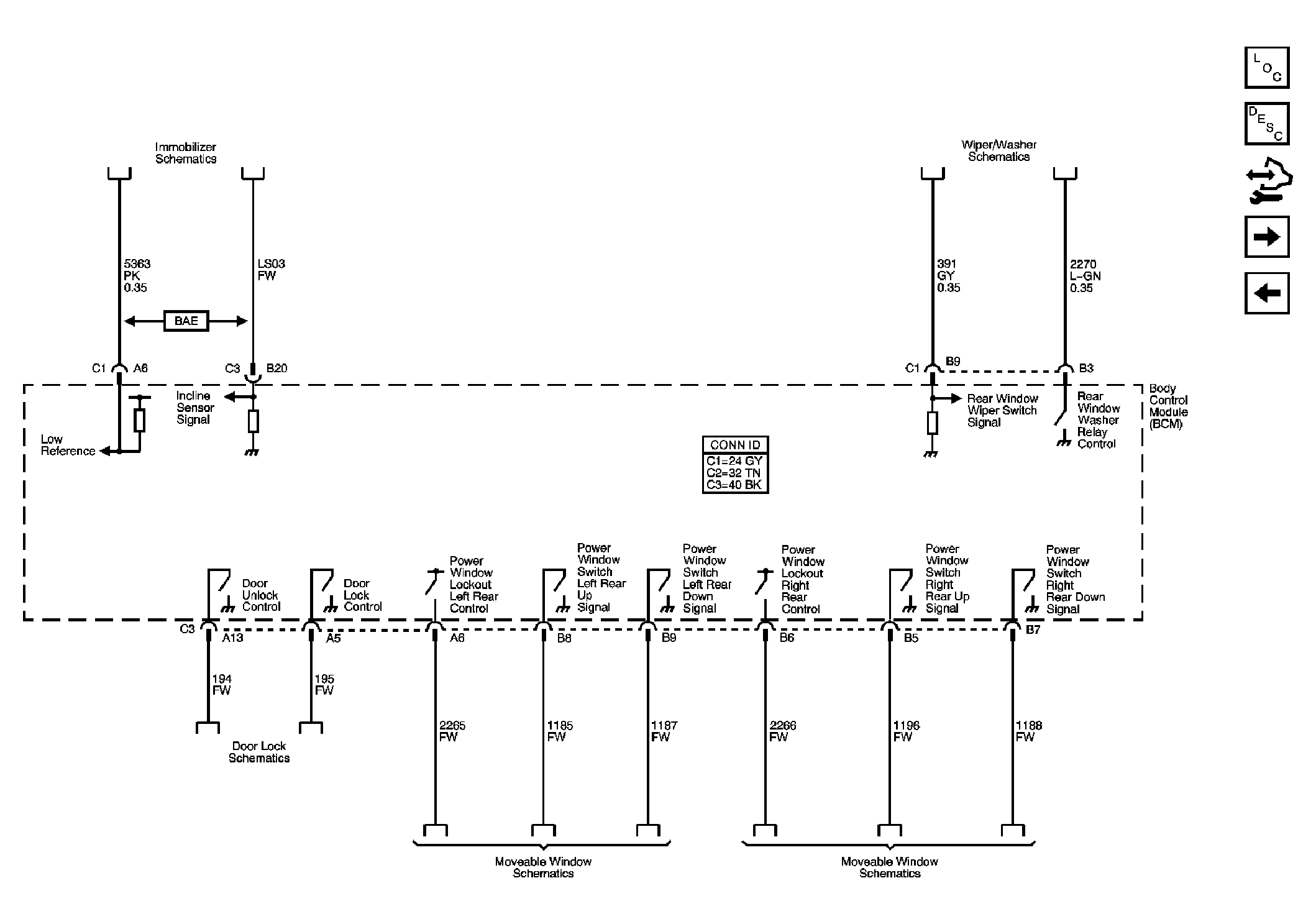

Fig 2: BCM Controlled/Monitored Subsystem References Schematic - 1 of 3
GM1748036Courtesy of GENERAL MOTORS CORP.

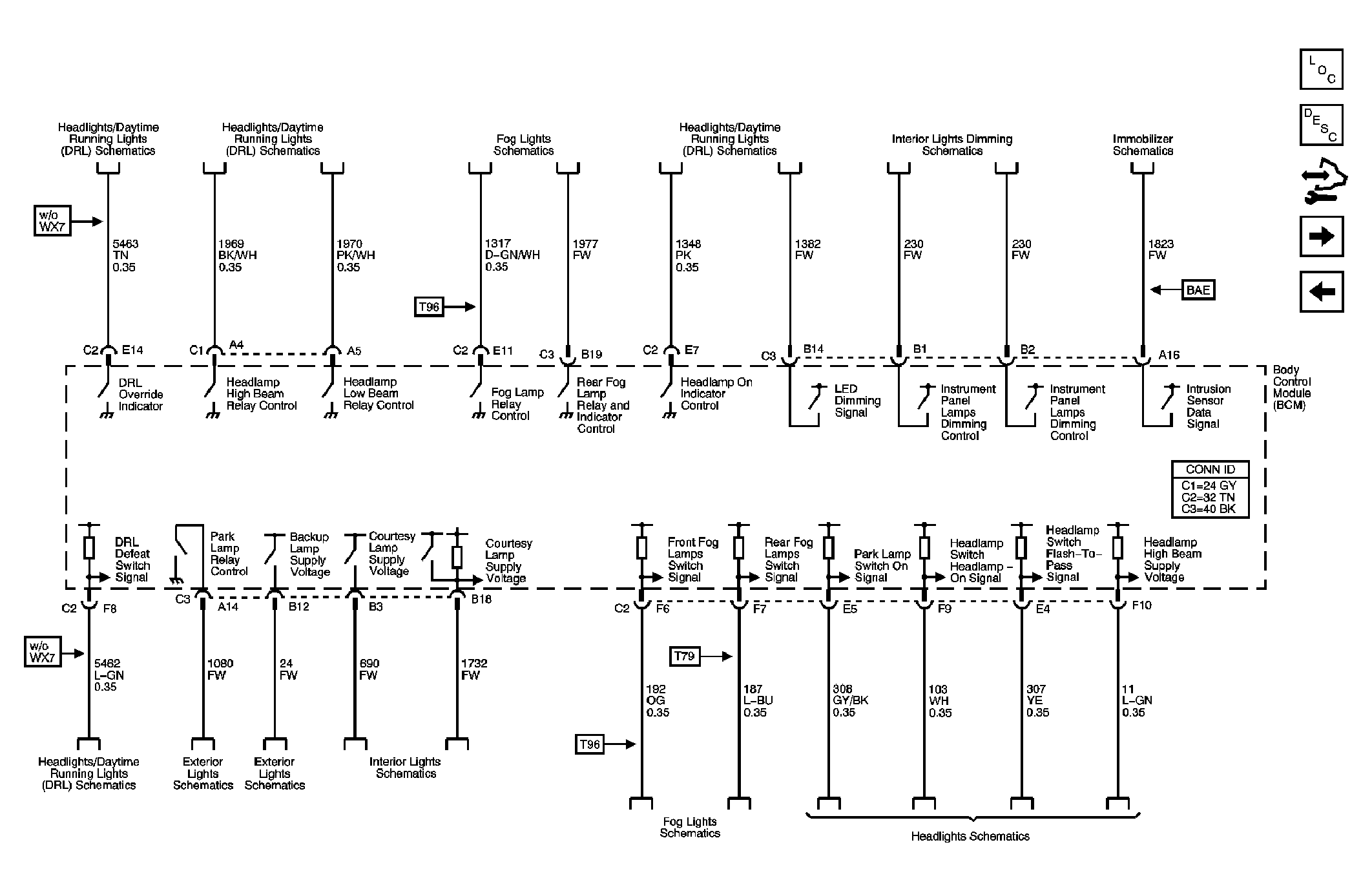

Fig 3: BCM Controlled/Monitored Subsystem References Schematic- 2 of 3
GM1748037Courtesy of GENERAL MOTORS CORP.

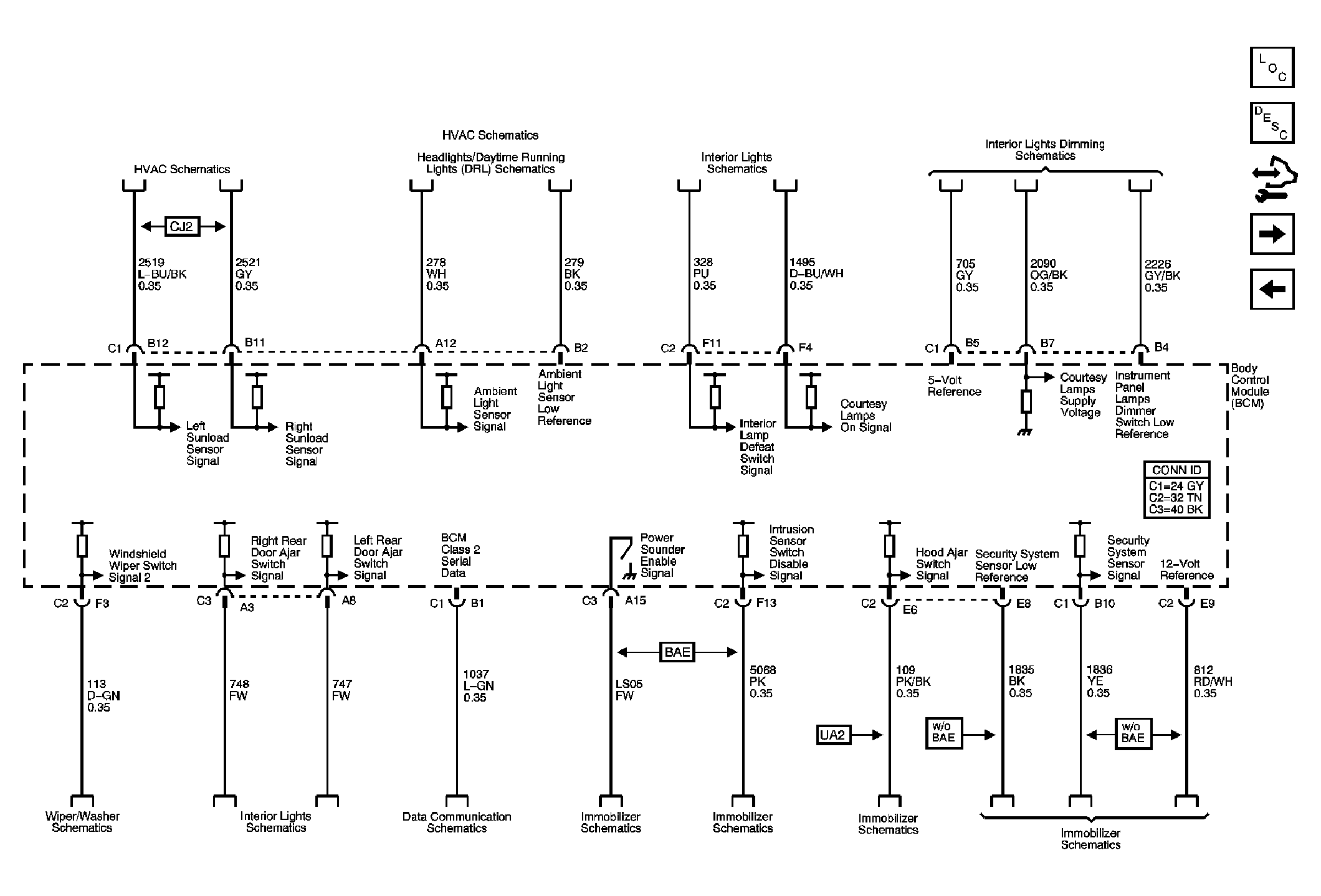

Fig 4: BCM Controlled/Monitored Subsystem References Schematic - 3 of 3
GM1748038Courtesy of GENERAL MOTORS CORP.

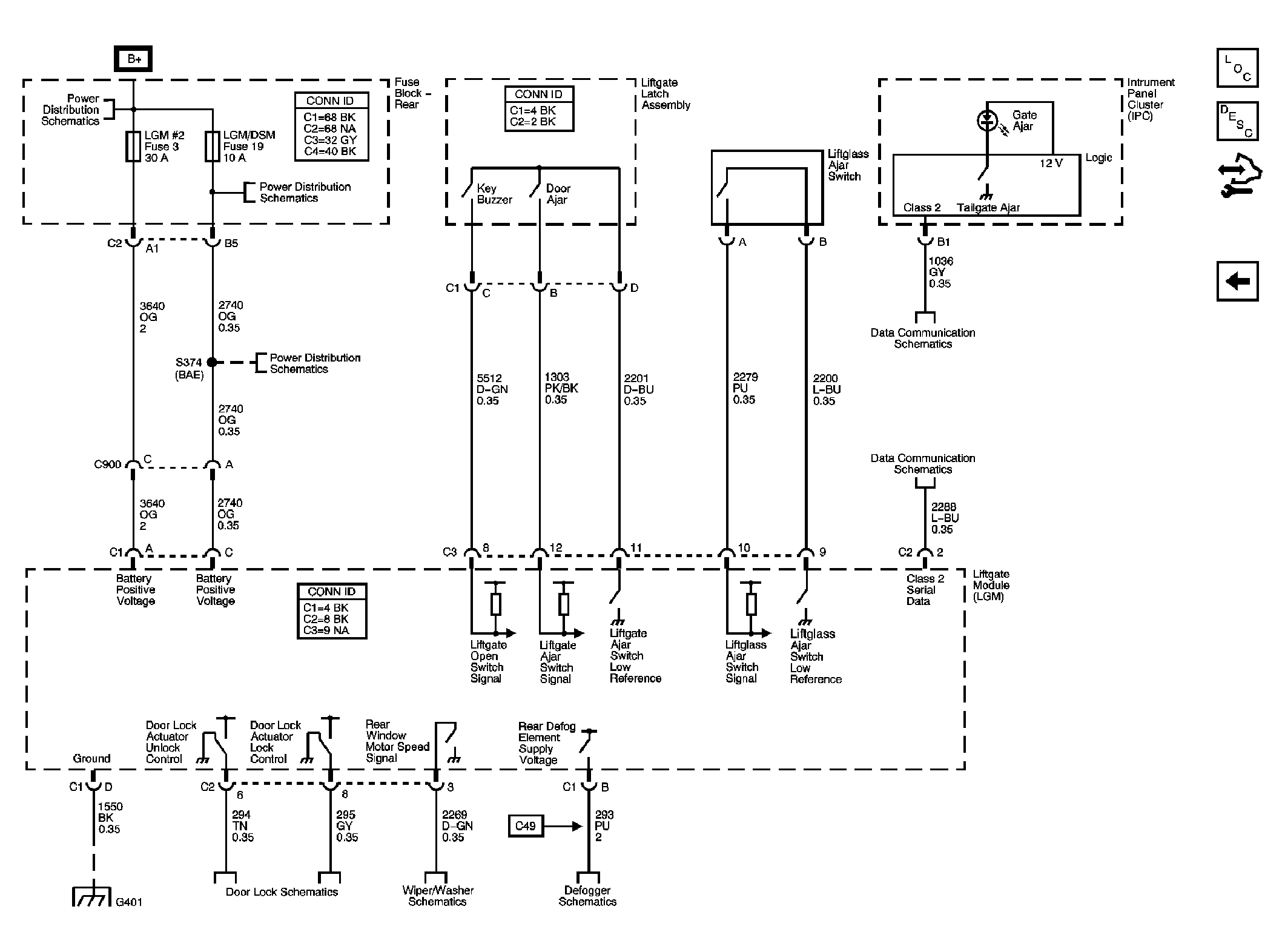

Fig 5: Liftgate Module Schematic
GM1747704Courtesy of GENERAL MOTORS CORP.
