Body Control System Schematics

WARNING: This page is about a different car, the 2007 Pontiac Torrent and 2007 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

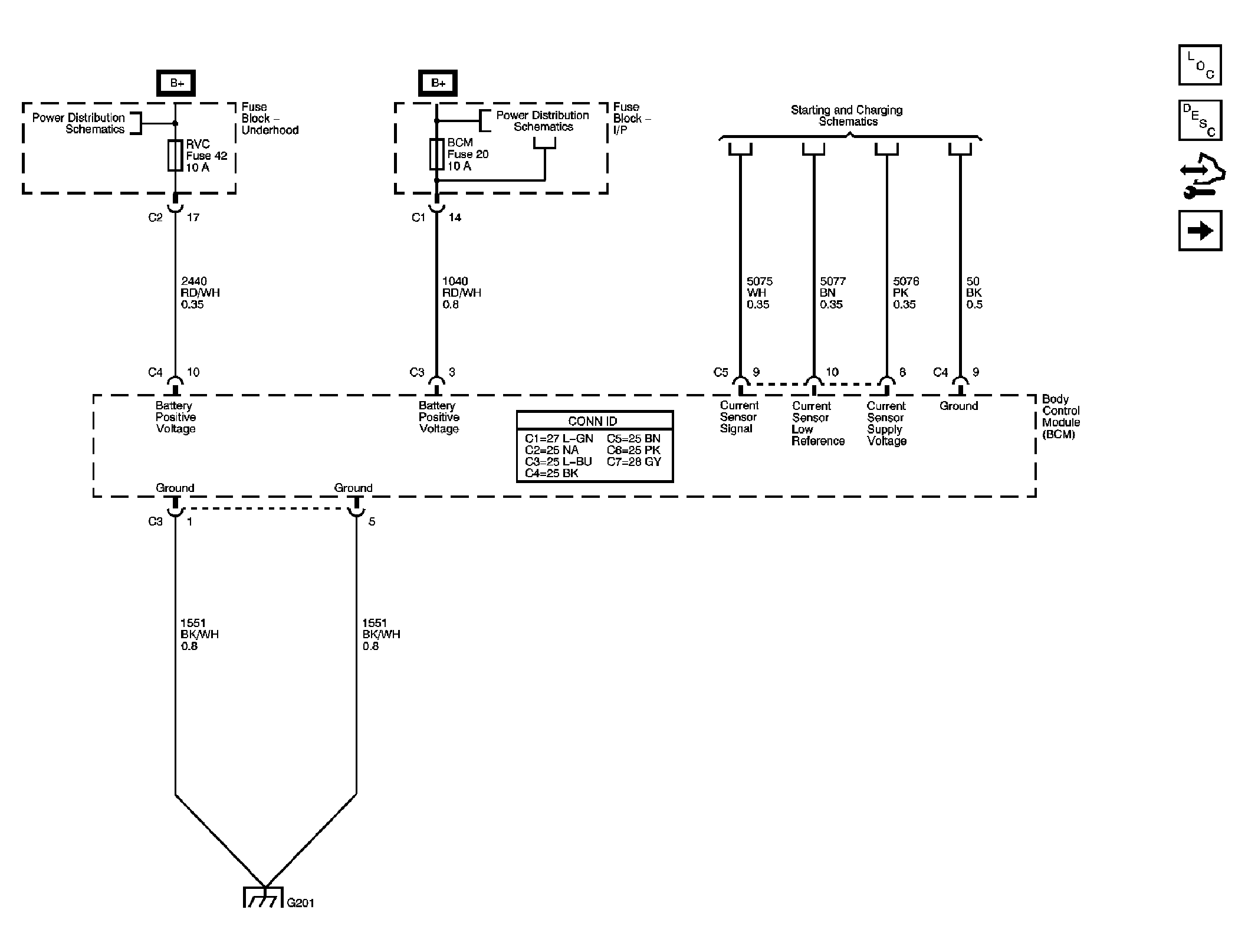

Fig 1: Power and Ground, Starting & Charging Schematic

Courtesy of GENERAL MOTORS CORP.

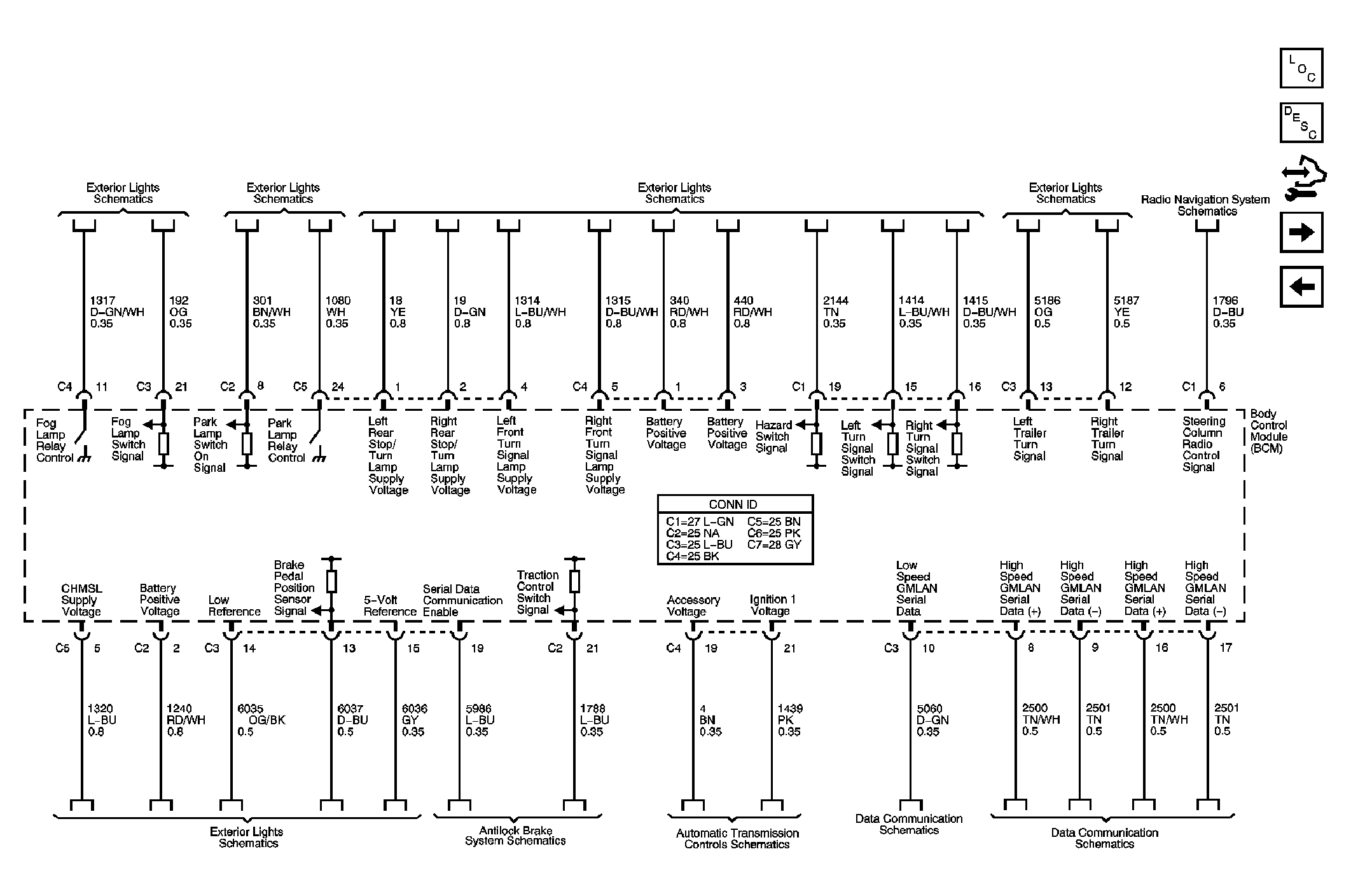

Fig 2: Exterior Lights, Radio, Data Communications, ABS & Automatic Transmission Schematic

Courtesy of GENERAL MOTORS CORP.

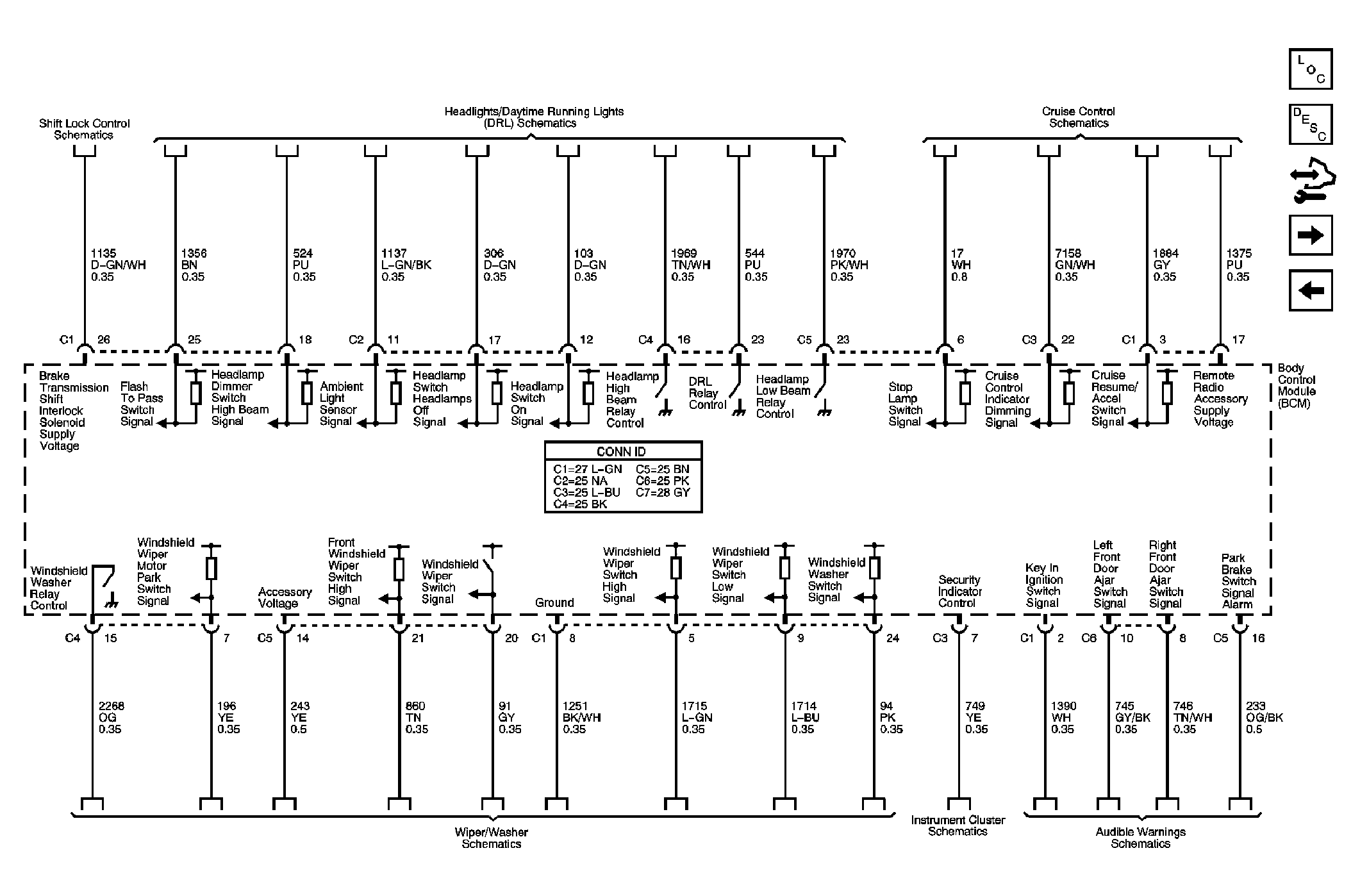

Fig 3: Shift Lock, Headlights, Cruise, Wiper & I/P Schematic

Courtesy of GENERAL MOTORS CORP.

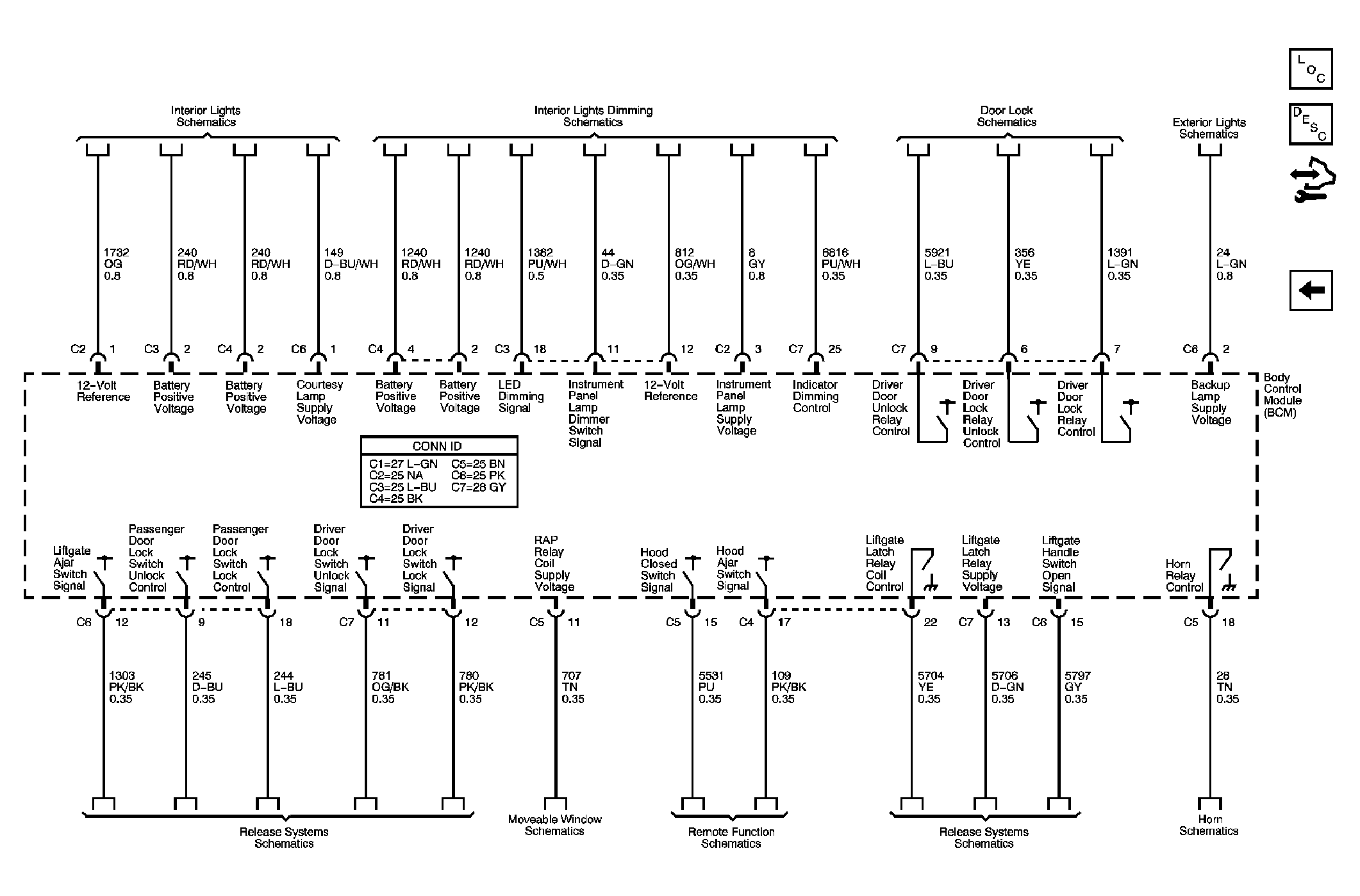

Fig 4: Interior Lights, Door Locks, Exterior Lights, Release Systems, Movable Windows & Horns Schematic

Courtesy of GENERAL MOTORS CORP.
