Remote Function Schematics

WARNING: This page is about a different car, the 2009 GMC Envoy and 2009 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

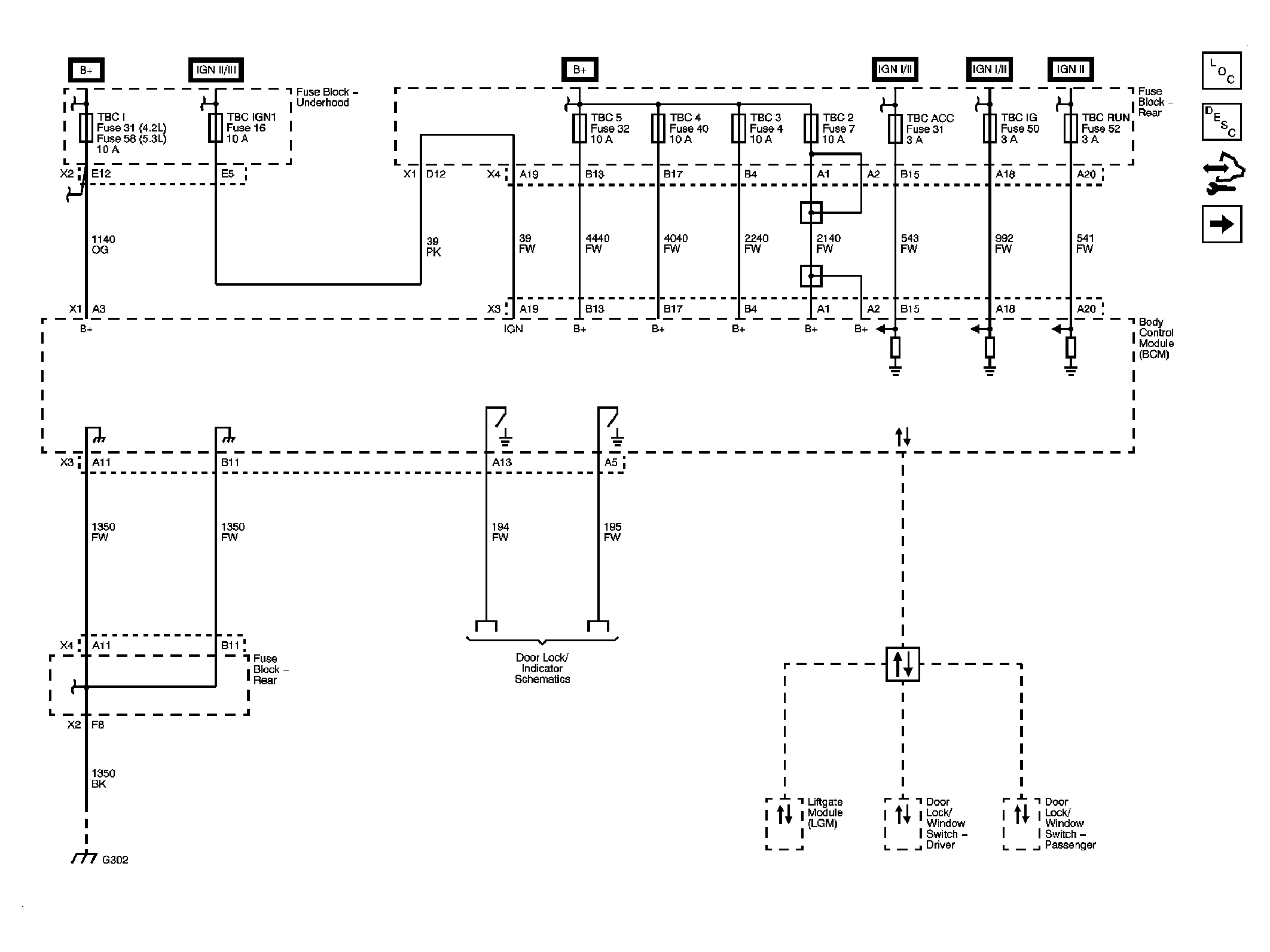

Fig 1: Keyless Entry
GM2082099Courtesy of GENERAL MOTORS CORP.

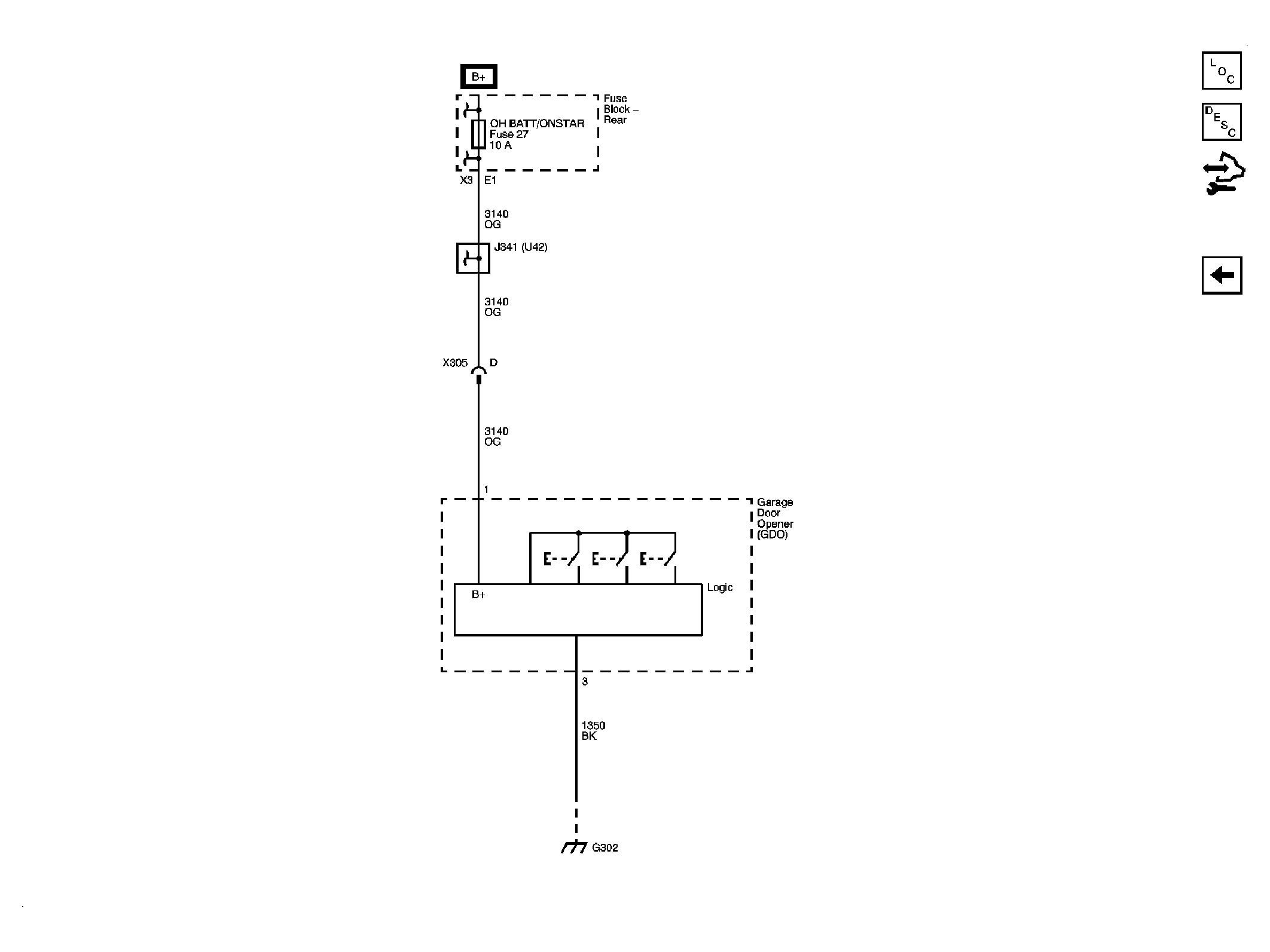

Fig 2: Garage Door Opener - UG1
GM2082101Courtesy of GENERAL MOTORS CORP.
