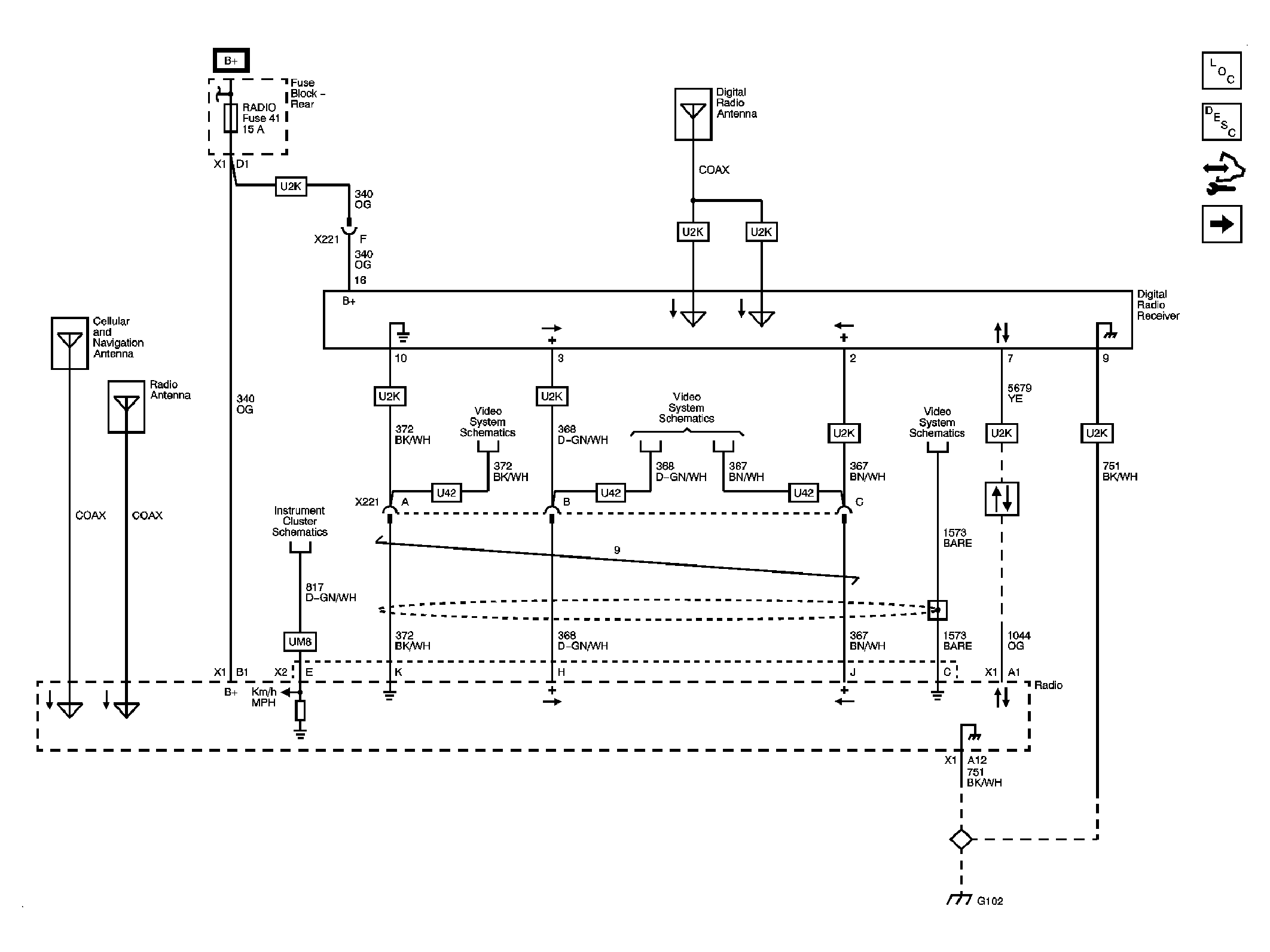

Fig 1: Power, Ground, Serial Data, and Digital Radio Receiver
Courtesy of GENERAL MOTORS CORP.

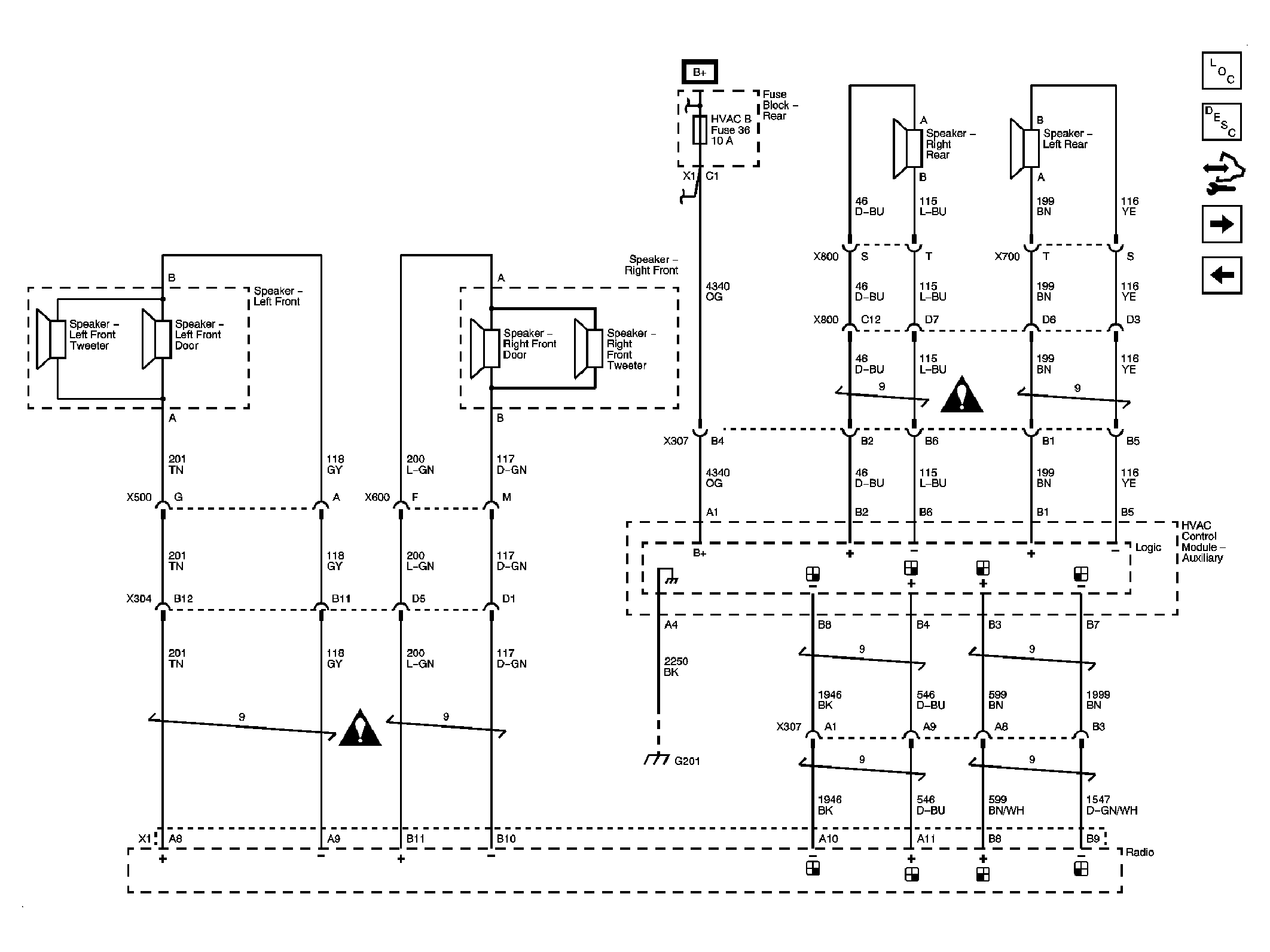

Fig 2: Base Radio - without Rear Seat Audio Controls
Courtesy of GENERAL MOTORS CORP.

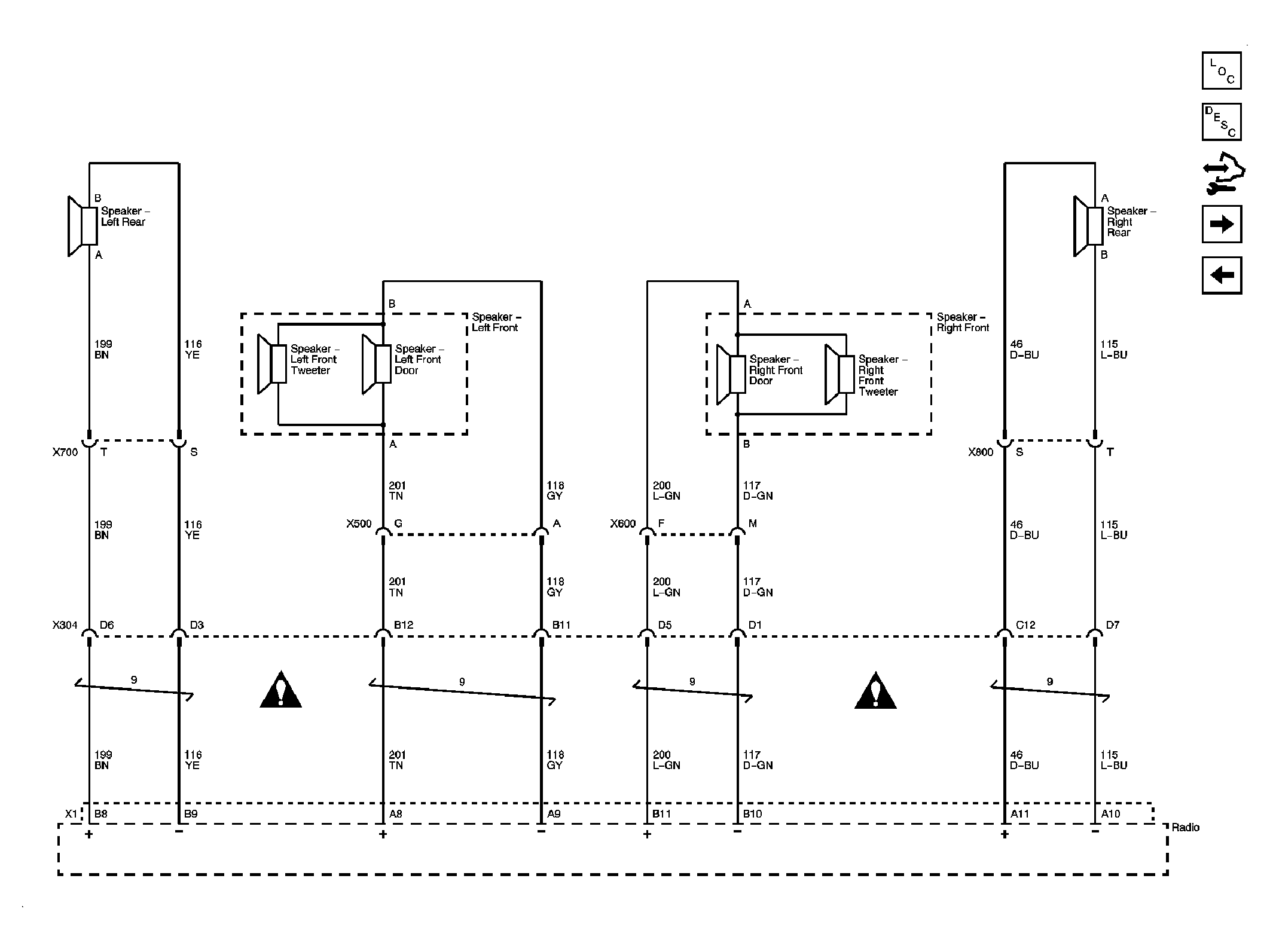

Fig 3: Base Radio - with Rear Seat Audio Controls
Courtesy of GENERAL MOTORS CORP.

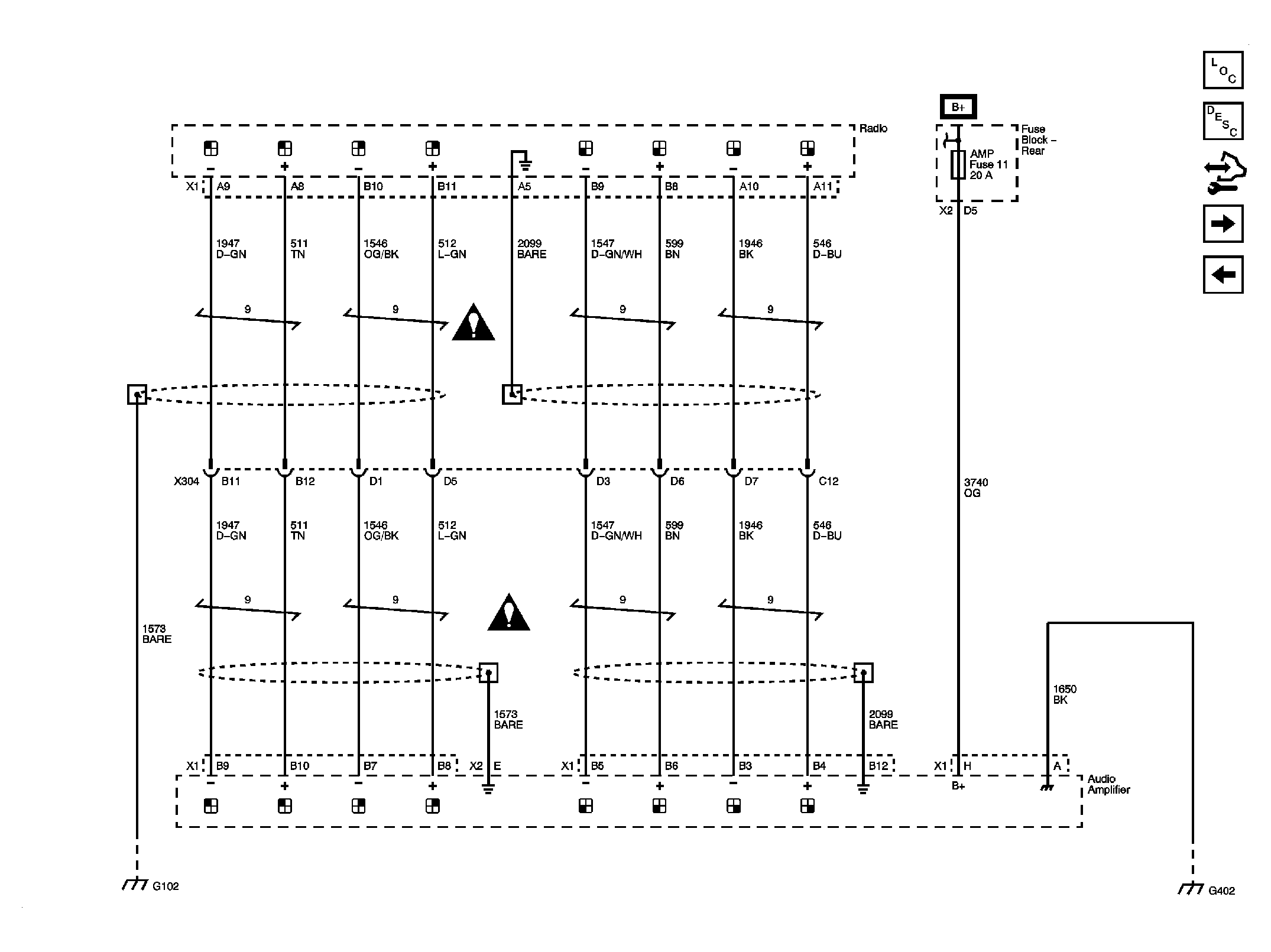

Fig 4: Audio Amplifier Power, Grounds, and Premium Radio Low Level Audi Outputs without Rear Seat Audio Controls
Courtesy of GENERAL MOTORS CORP.

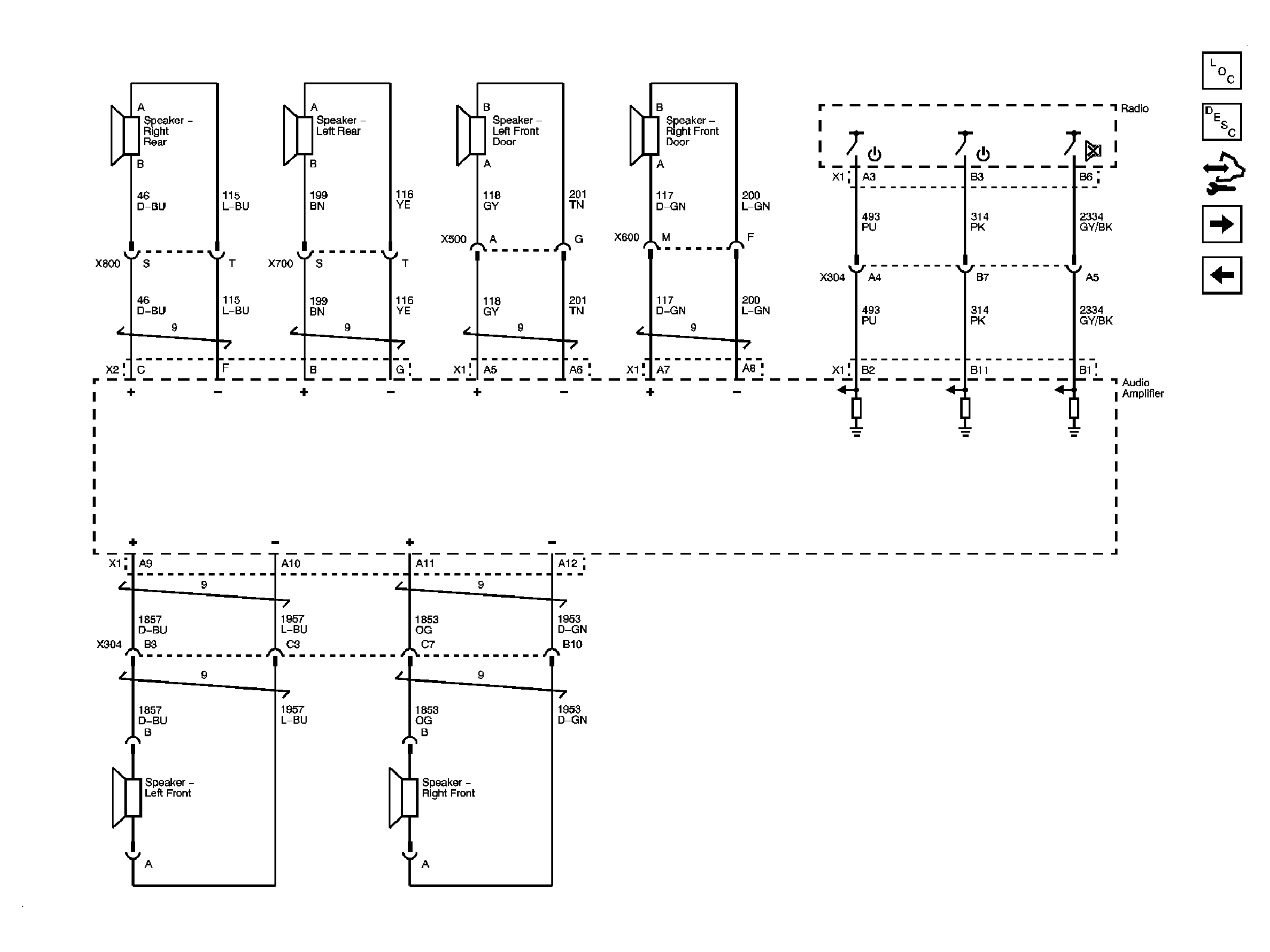

Fig 5: Audio Amplifier Power, Grounds, and Premium Radio Low Level Audi Outputs with Rear Seat Audio Controls
