Engine Controls Schematics

WARNING: This page is about a different car, the 2008 Isuzu Ascender, 2008 GMC Envoy, and 2008 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Module Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Underhood Fuse Block - PWR/TRN Relay Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors - 5-Volt & Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors - Pressure & Temperature Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors - Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Engine Data Sensors - Throttle Actuator Control & VSS Schematic

Courtesy of GENERAL MOTORS CORP.

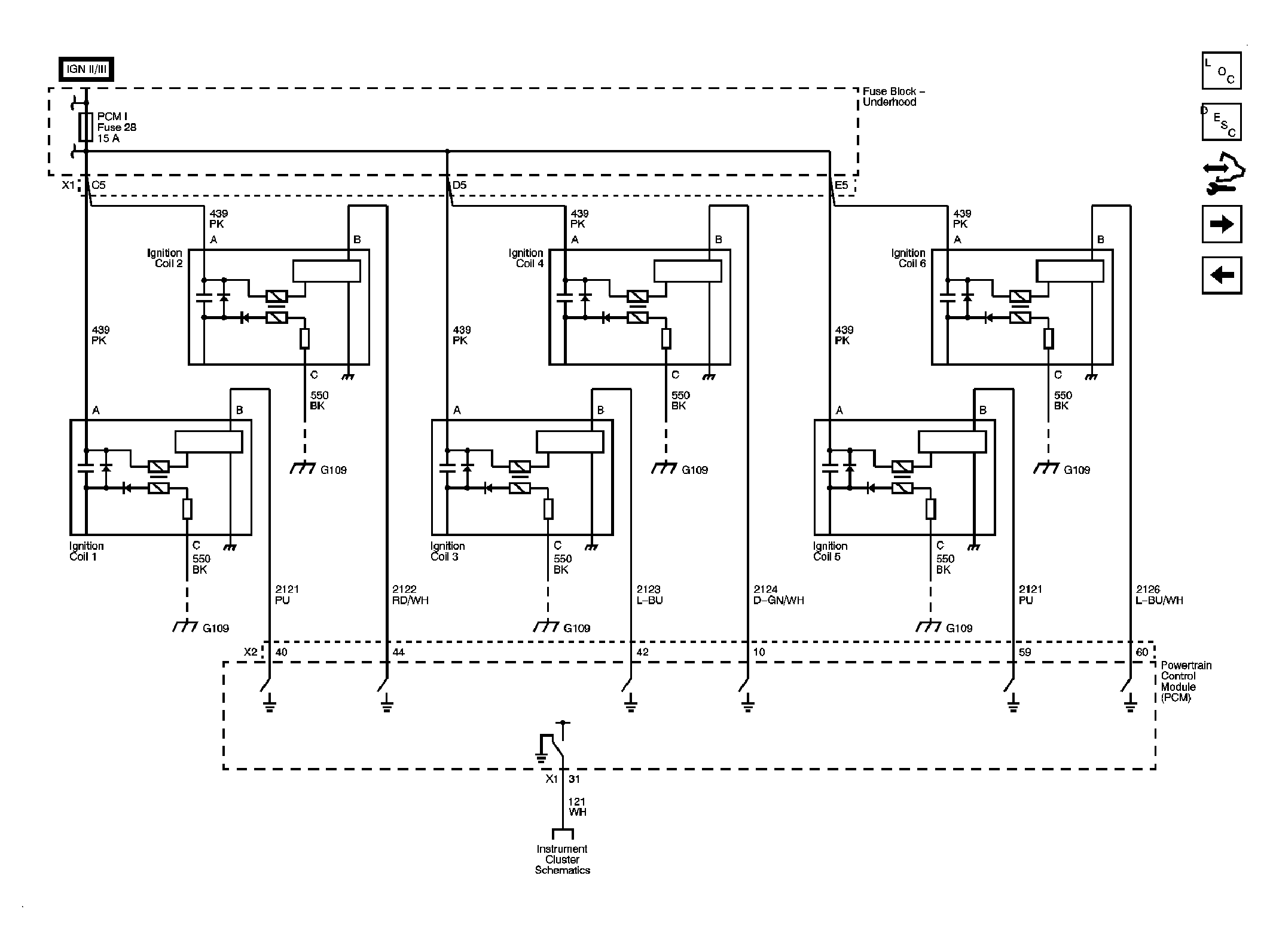

Fig 7: Ignition Controls - Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Controls - Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

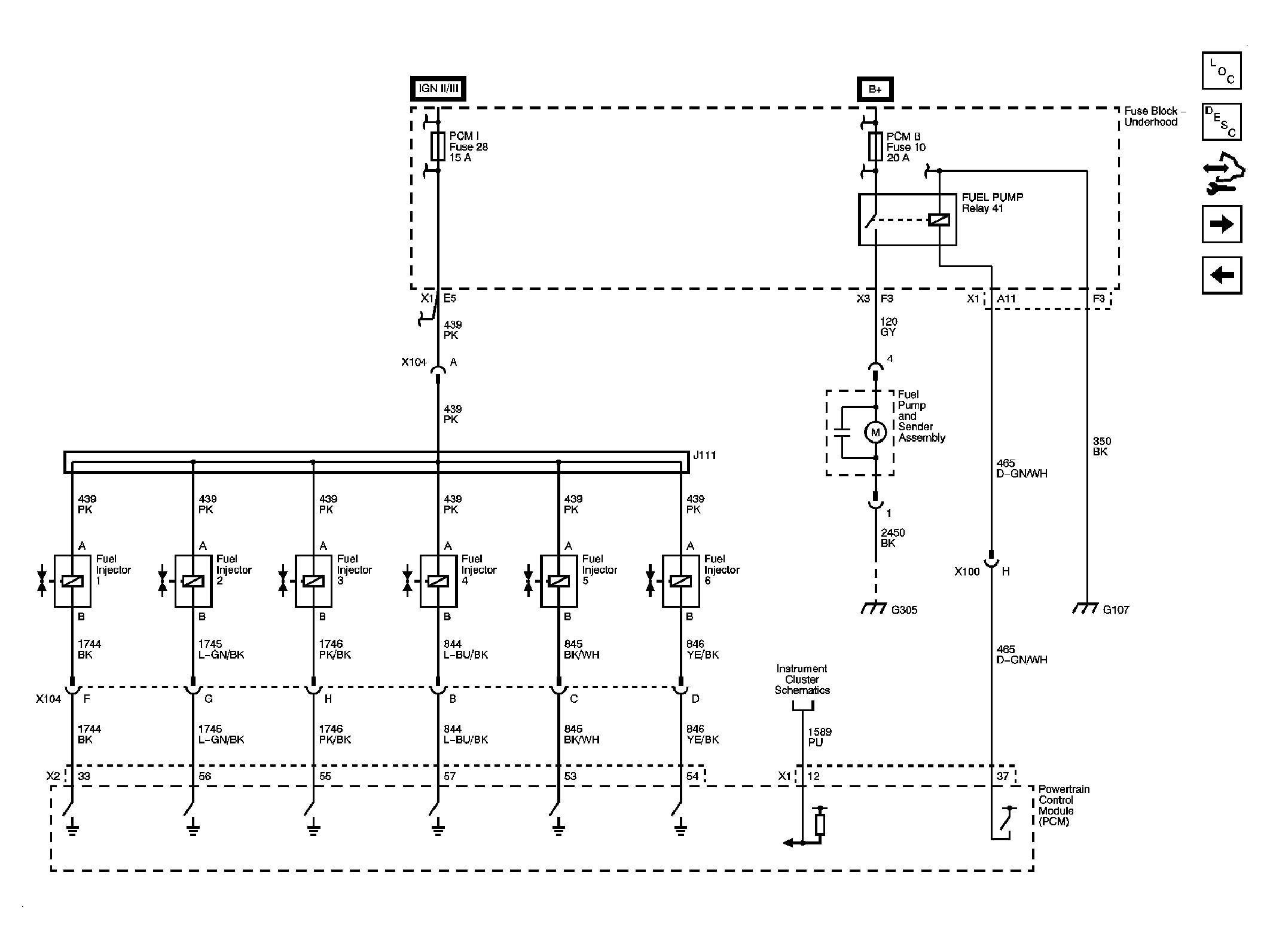

Fig 9: Fuel Controls - Fuel Pump & Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 10: Fuel Controls - EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 11: Device Controls - K18 Schematic

Courtesy of GENERAL MOTORS CORP.

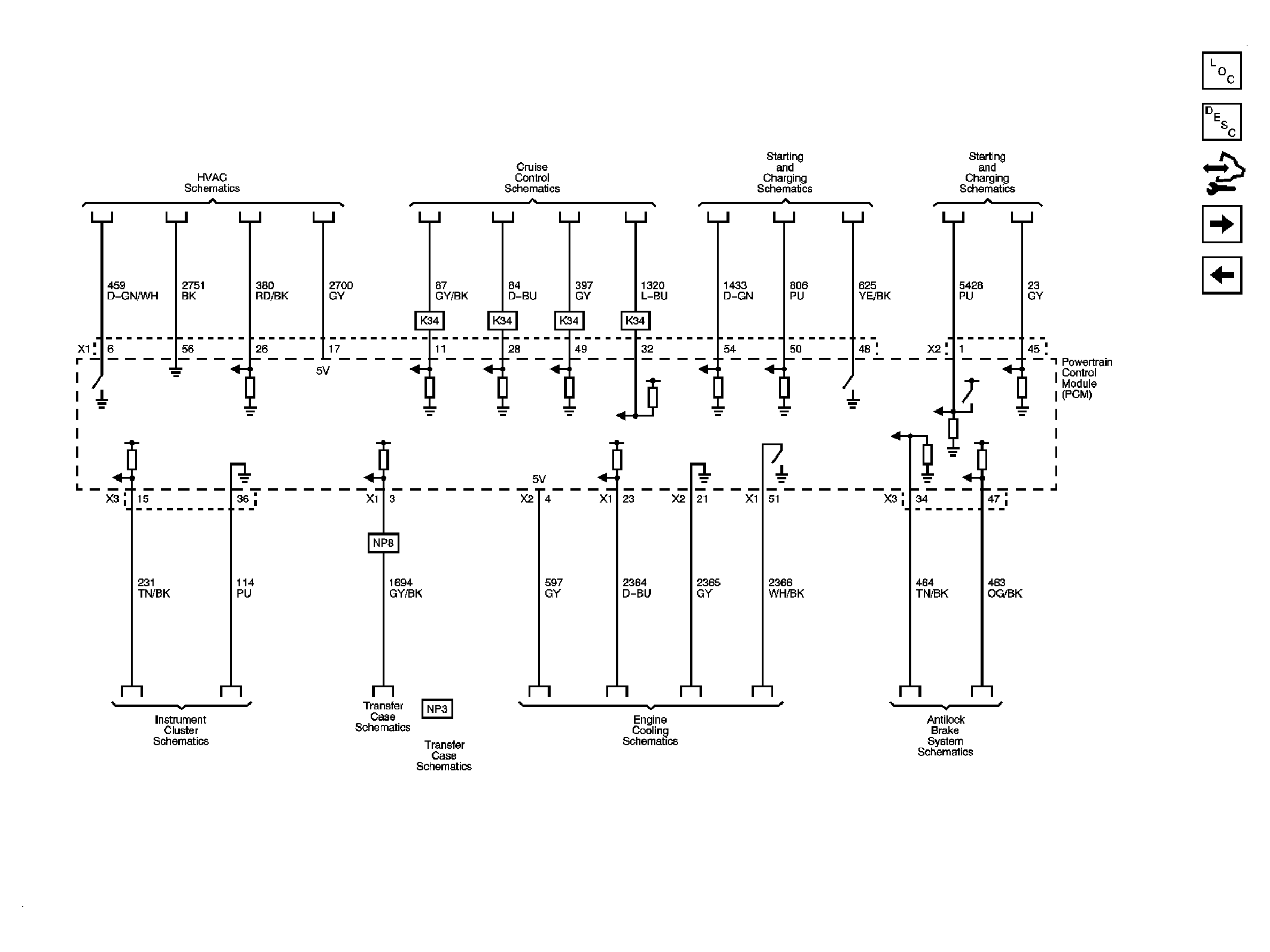

Fig 12: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 13: Transmission Control References - A/T Schematic

Courtesy of GENERAL MOTORS CORP.
