Removal Procedure

WARNING: This page is about a different car, the 2008 Isuzu Ascender, 2008 GMC Envoy, and 2008 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console. Refer to Roof Console Replacement .

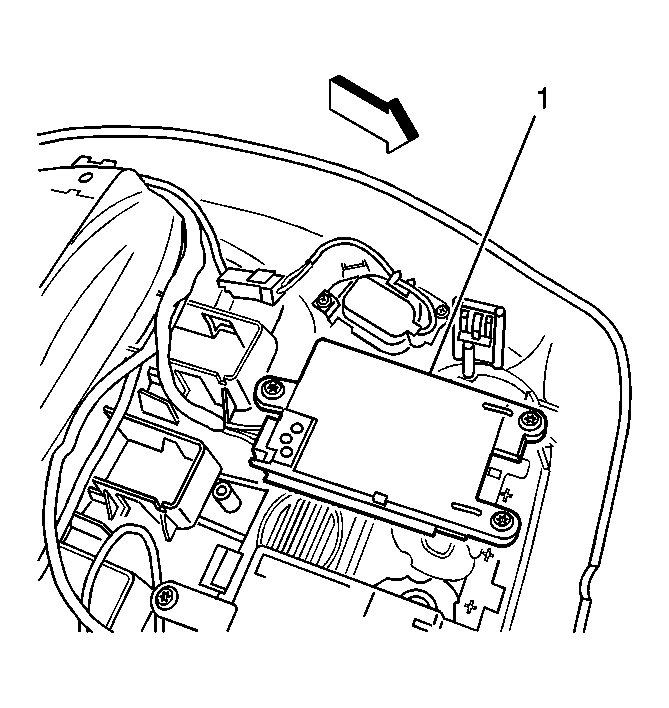

    2. Fig 1: Identifying Personal Message Recorder
    GM741631Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector from the personal message recorder (1).
  3. Remove the personal message recorder retaining screws.
  4. Remove the personal message recorder from the overhead console.
  5. Remove the button assembly from the overhead console.
