Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu Ascender, 2008 GMC Envoy, and 2008 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

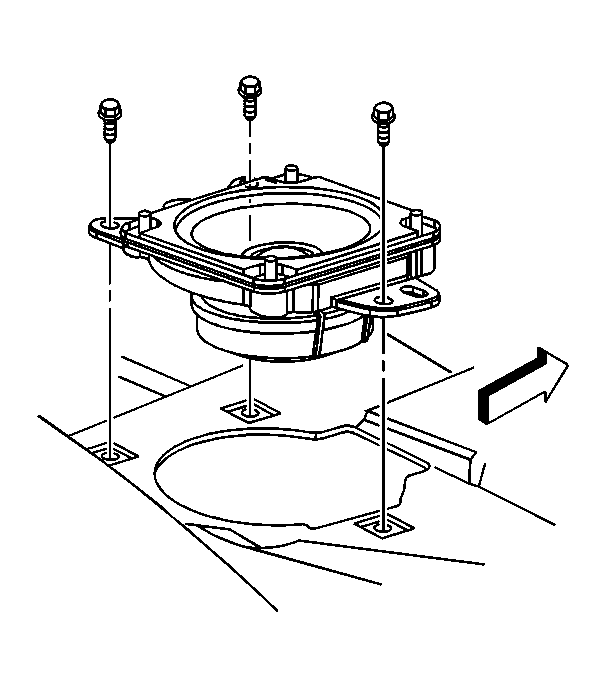

Fig 1: View Of Speaker & Retaining Screws To Instrument Panel (IP) Substrate

Courtesy of GENERAL MOTORS CORP.

Install the speaker to the I/P.
Connect the speaker electrical connector.

NOTE: Refer to Fastener Notice .

Install the 3 speaker retaining screws.
Tighten: Tighten the screws to 2 N.m (18 lb in).

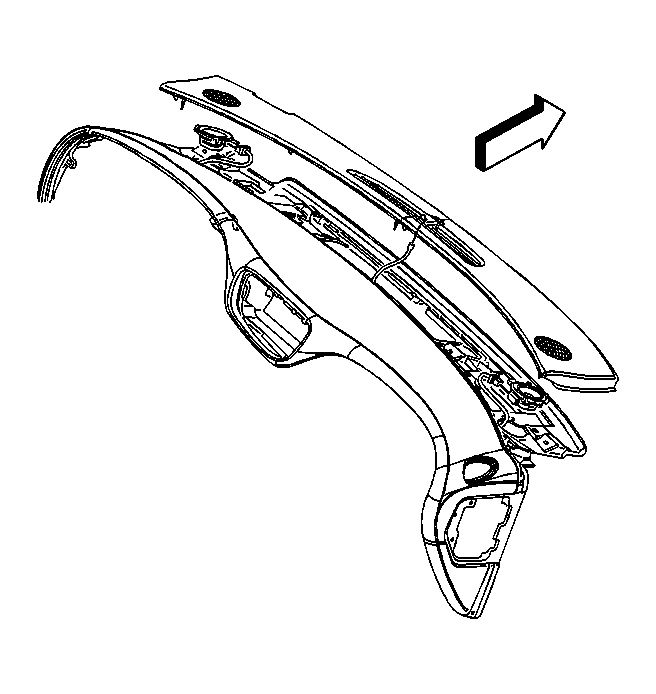

Fig 2: View Of Instrument Panel (I/P) Upper Trim Pad

Courtesy of GENERAL MOTORS CORP.

Install the trim pad. Refer to Instrument Panel Upper Trim Pad Replacement .
