Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu Ascender, 2008 GMC Envoy, and 2008 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

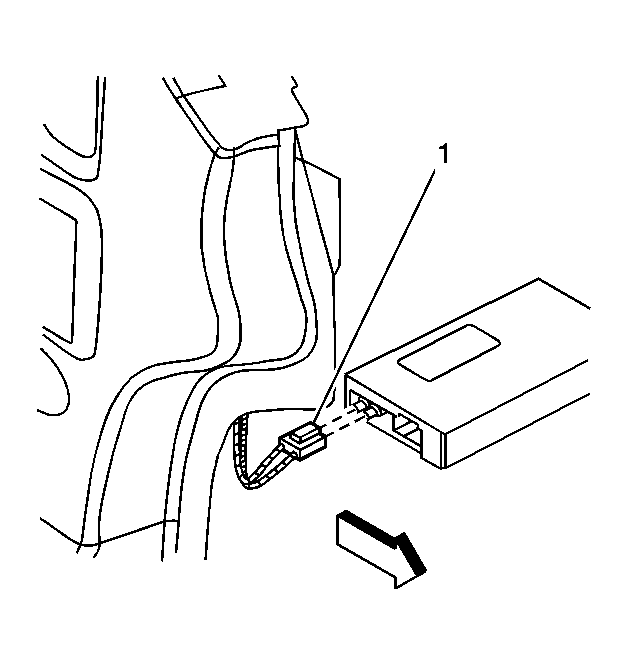

    Fig 1: View Of Antenna Electrical Connector
    GM1237408Courtesy of GENERAL MOTORS CORP.
  1. Position the receiver near the insulator panel.
  2. Install the antenna electrical connector (1) to the receiver.

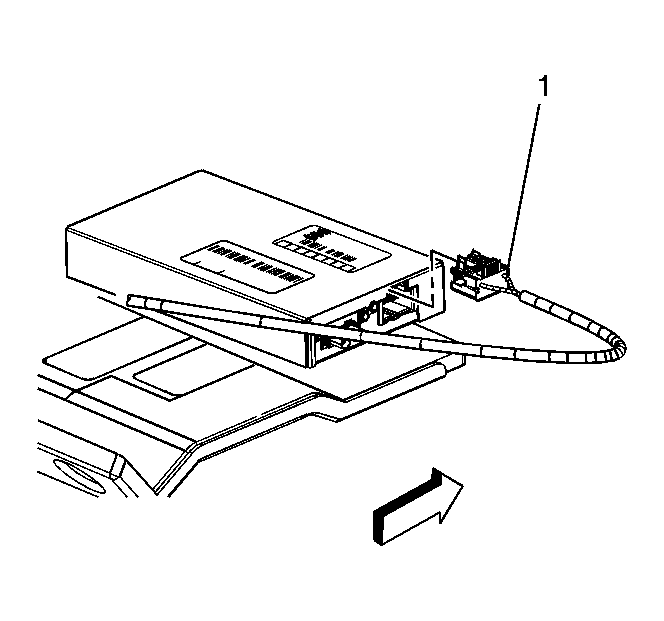

    3. Fig 2: View Of Electrical Connector & Receiver
    GM1237407Courtesy of GENERAL MOTORS CORP.
  3. Install the electrical connector (1) to the receiver.

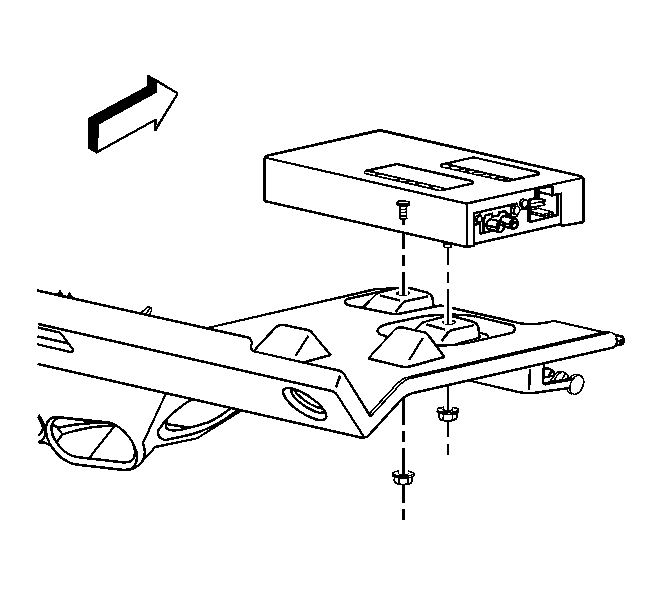

    4. Fig 3: Module Mounting View
    GM1236121Courtesy of GENERAL MOTORS CORP.
  4. Install the receiver to the insulator panel.
    5. NOTE: Refer to Fastener Notice .
  5. Install the nuts retaining the receiver to the insulator panel.

    Tighten:  Tighten the nuts to 5 N.m (44 lb in).

  6. Install the right closeout insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
  7. Perform the setup procedure for the digital radio receiver. Refer to Digital Radio Receiver Setup .
