Engine Compartment Horizontal

WARNING: This page is about a different car, the 2008 Saab 9-7X. However, it is still accessible from the selected car via links, so may be relevant.

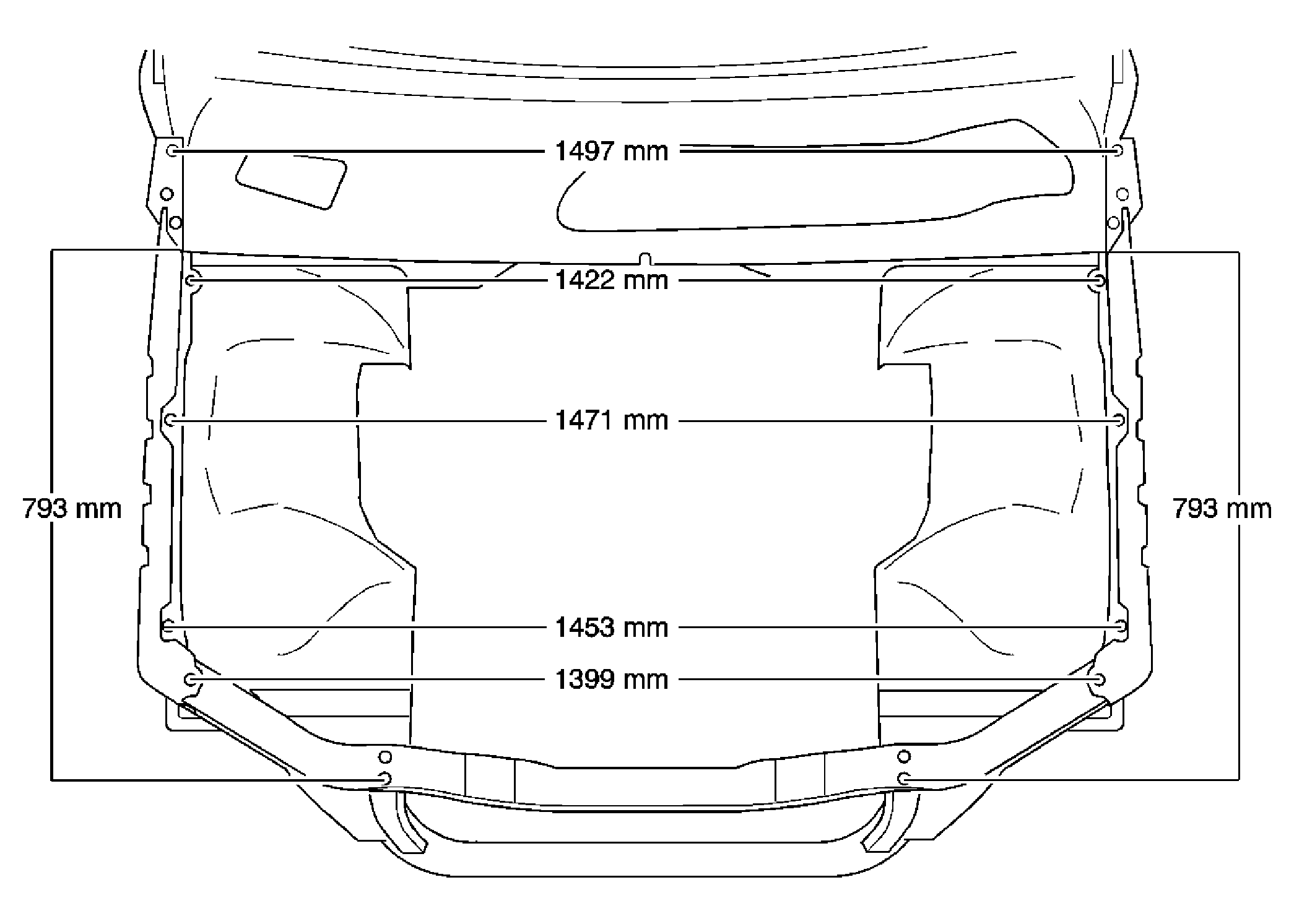

Fig 1: Engine Compartment Horizontal Dimensions
GM754782Courtesy of GENERAL MOTORS CORP.
