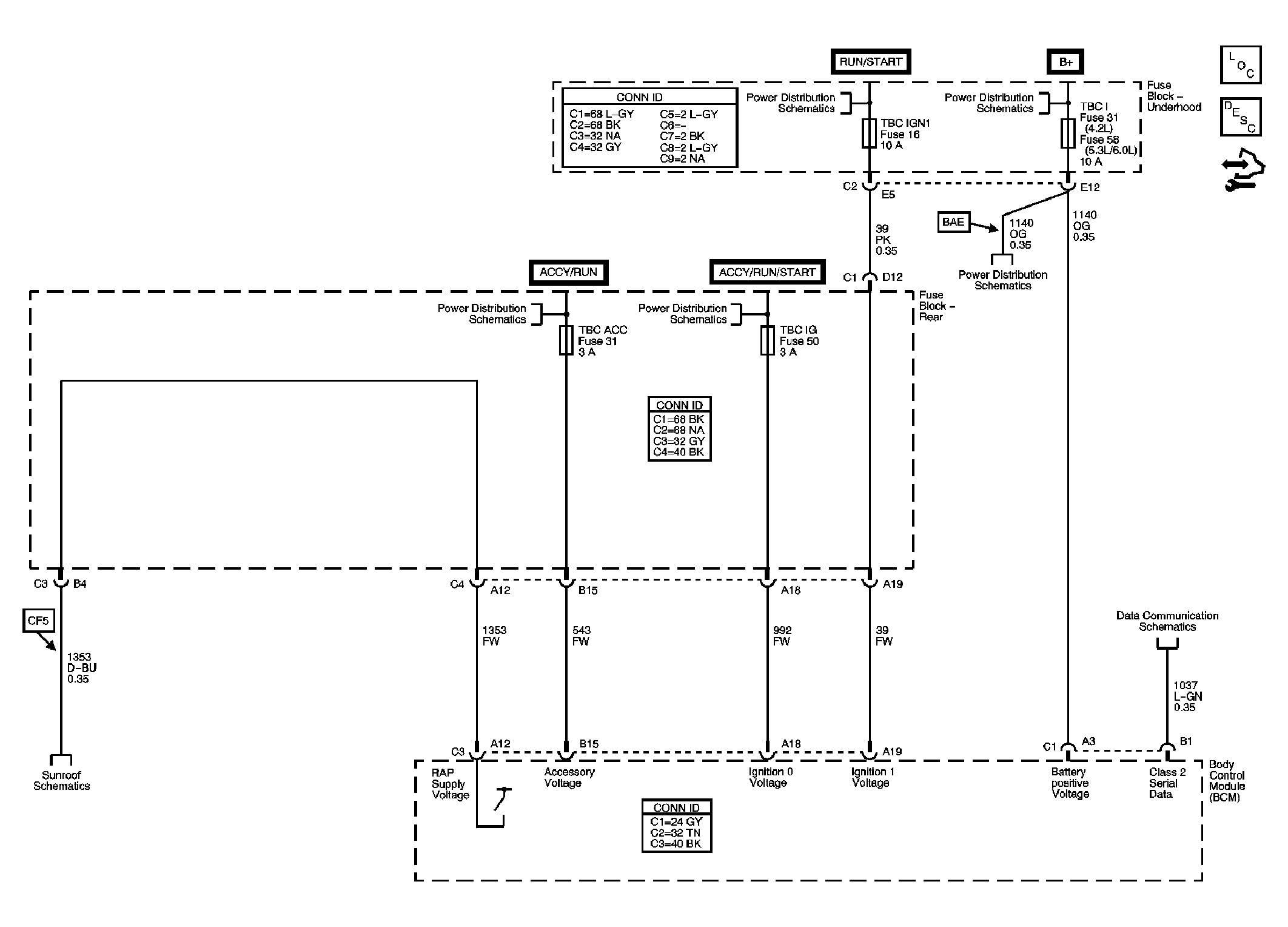

Home >> Isuzu >> 2007 >> Ascender 4WD >> Repair and Diagnosis >> Electrical >> Body Electrical >> Wiring Systems And Power Management - Introduction >> Schematic and Routing Diagrams >> Power Moding Schematics
