Immobilizer Schematics

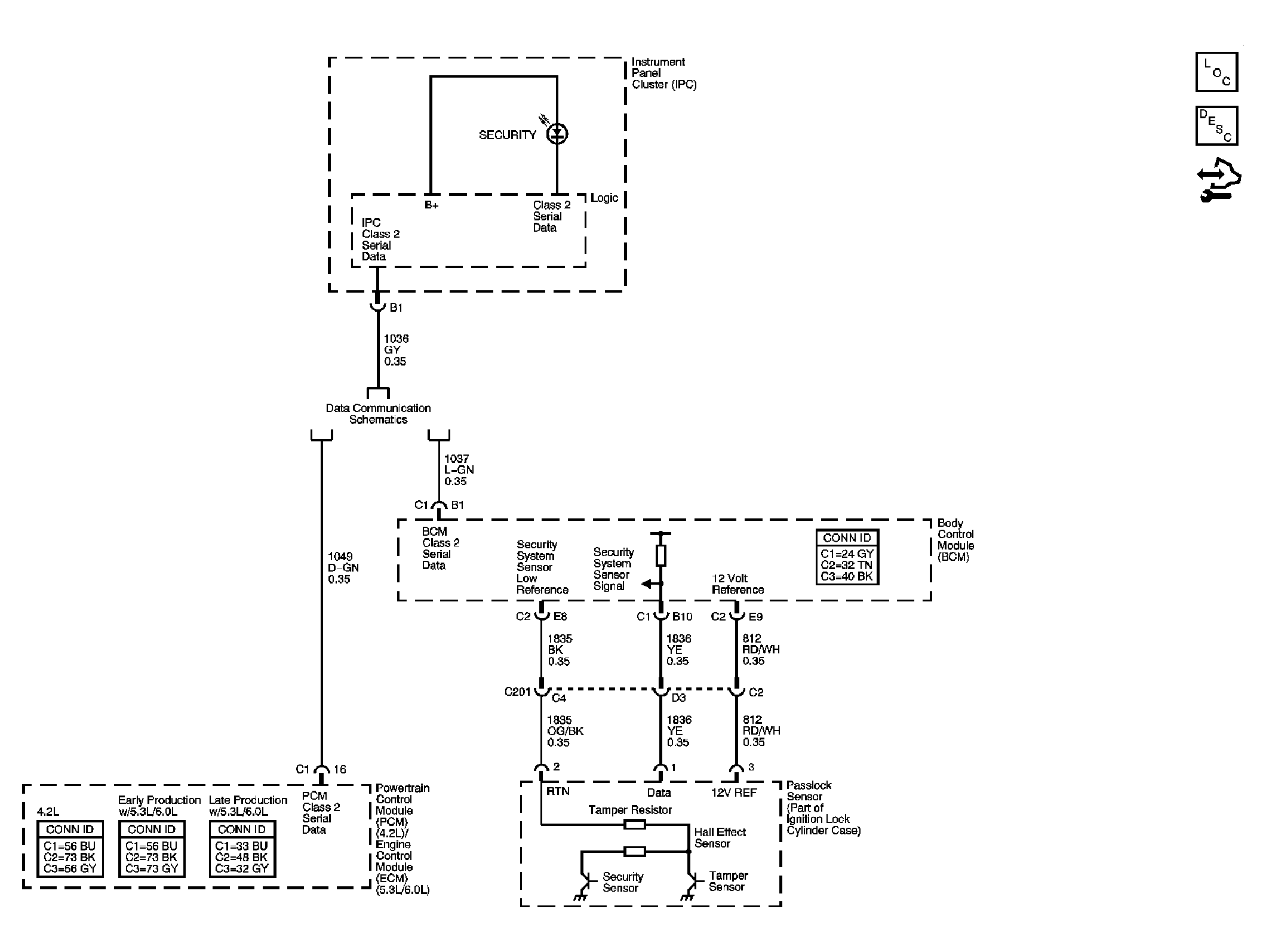

Fig 1: Passlock Sensor Schematic - w/o BAE
GM1777824Courtesy of GENERAL MOTORS CORP.

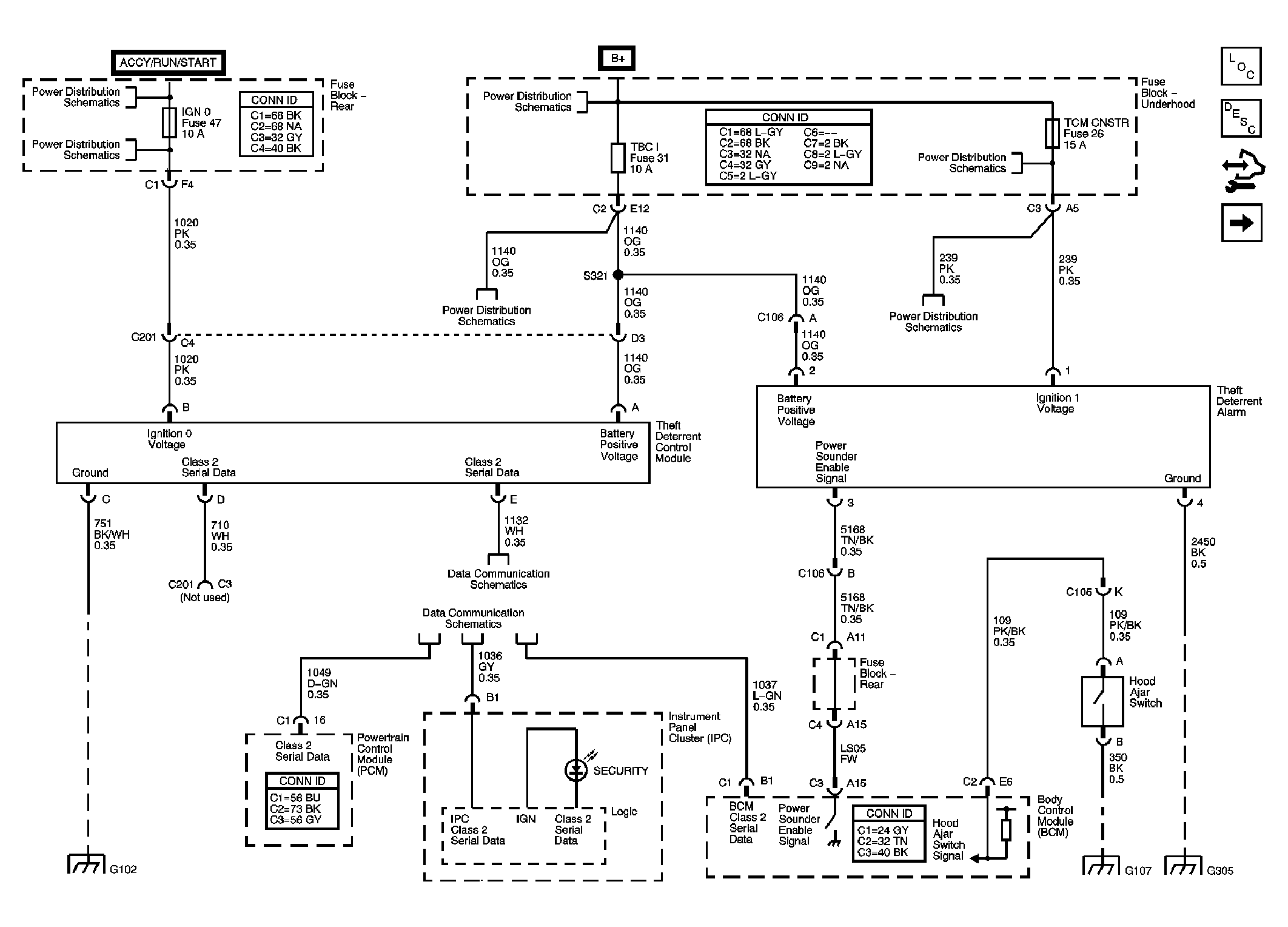

Fig 2: Theft Deterrent Control Module, Alarm & Hood Ajar Switch Schematic - UA2/BAE
GM1748157Courtesy of GENERAL MOTORS CORP.

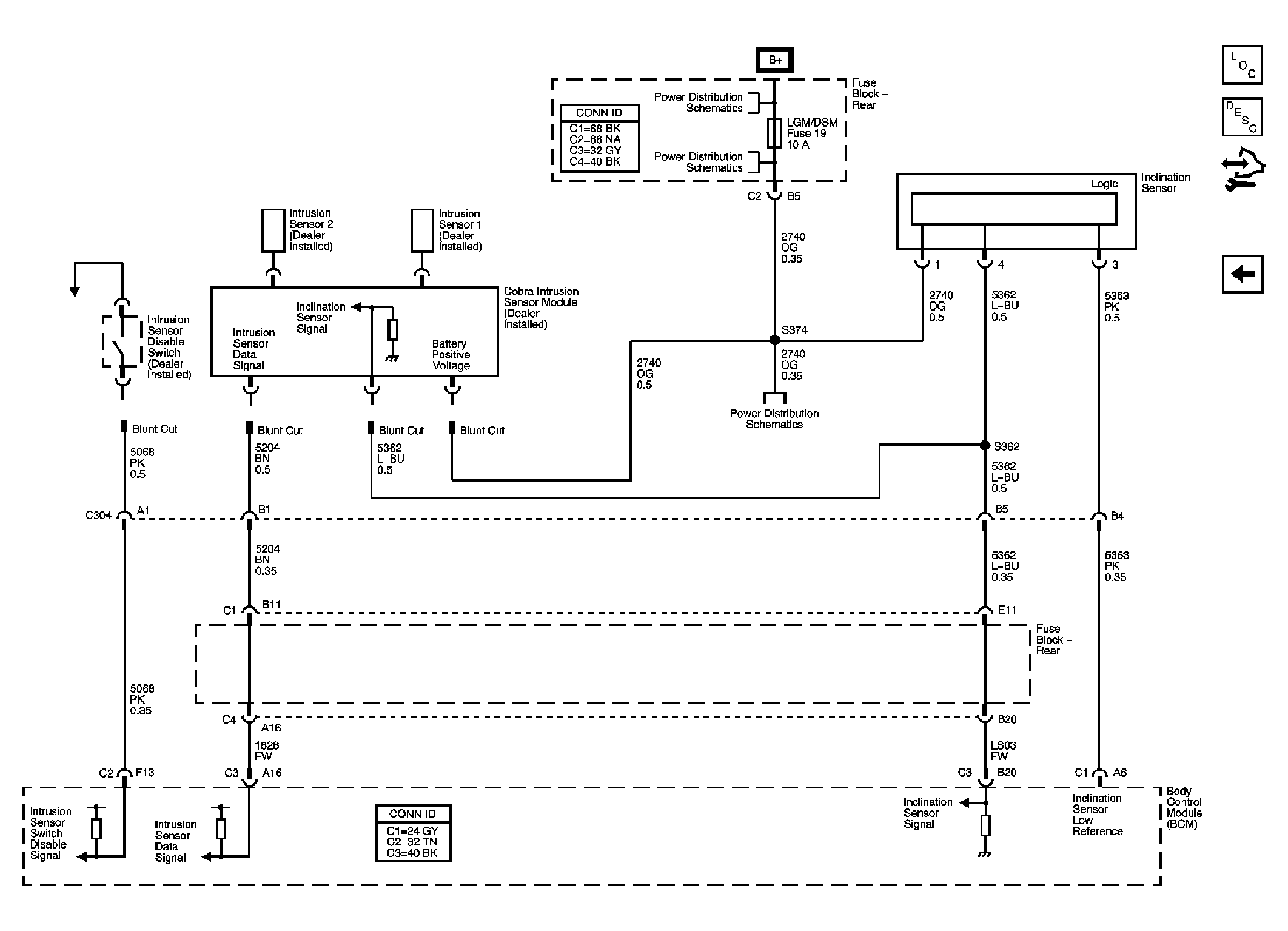

Fig 3: Intrusion & Indication Sensor Signals Schematic - UA2/BAE
GM1748158Courtesy of GENERAL MOTORS CORP.
