Seat Belt Component Views

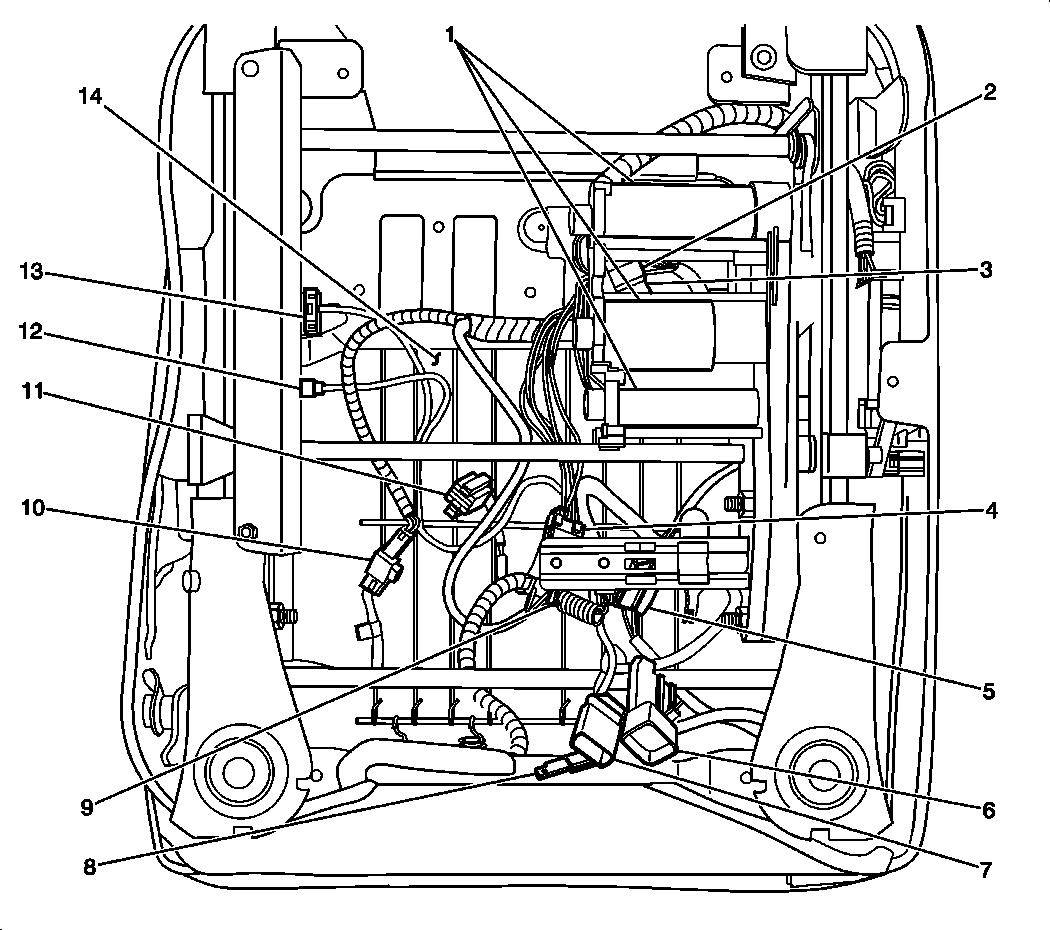

| Callout | Component Name |
|---|---|
| 1 | Seat Motors - Driver |
| 2 | Seat Adjuster Switch - Driver C1 |
| 3 | Seat Adjuster Switch - Driver C2 |
| 4 | Seat Motors - Driver Connector |
| 5 | Lumbar Pump Motor - Driver |
| 6 | C307 |
| 7 | C314 |
| 8 | Heater Element Seat Back - Driver |
| 9 | C319 |
| 10 | Recliner Motor |
| 11 | Heated Seat Module - Driver |
| 12 | Seat Belt Switch - Driver |
| 13 | Seat Position Switch - Left |

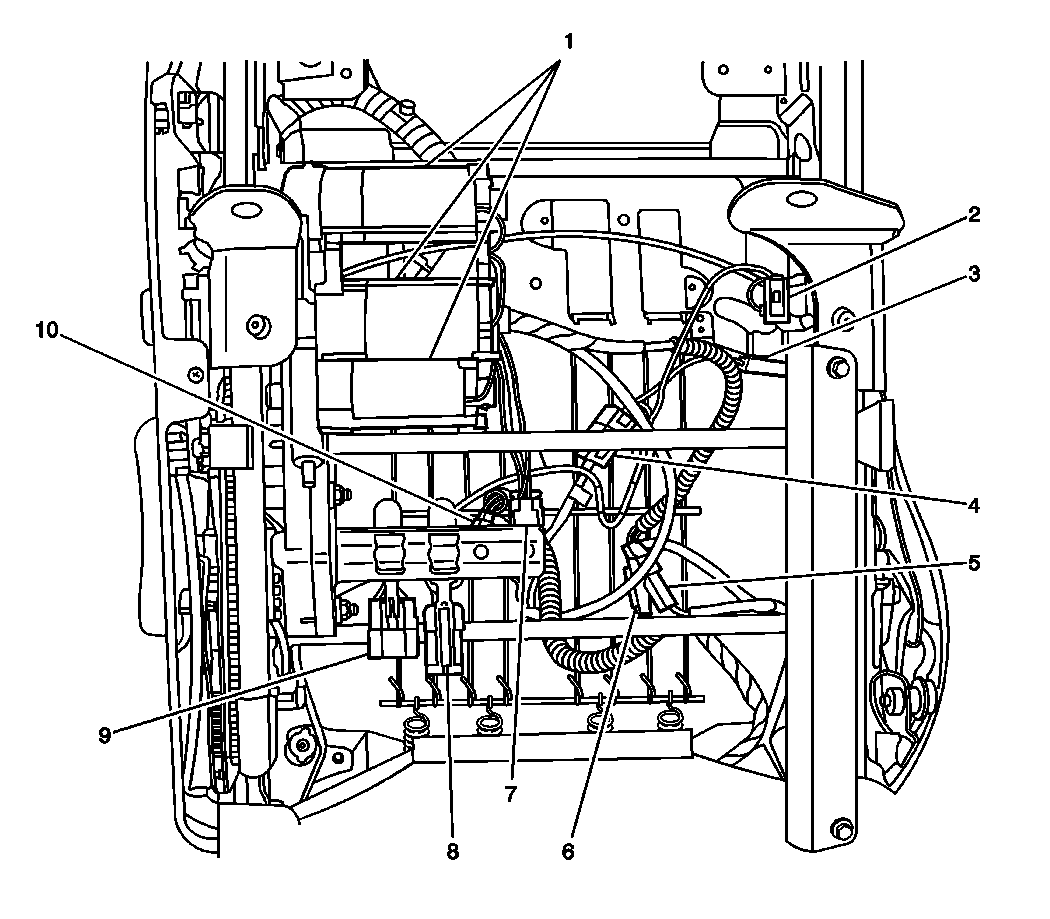

| Callout | Component Name |
|---|---|
| 1 | Seat Motors - Passenger |
| 2 | Seat Position Switch - Right |
| 3 | Seat Belt Switch - Passenger |
| 4 | Heated Seat Module - Passenger |
| 5 | Lumbar Pump Motor - Passenger |
| 6 | Heater Element Seat Back Passenger |
| 7 | Seat Motors - Passenger Connector |
| 8 | C313 |
| 9 | C315 |
| 10 | C318 |
