Installation Procedure

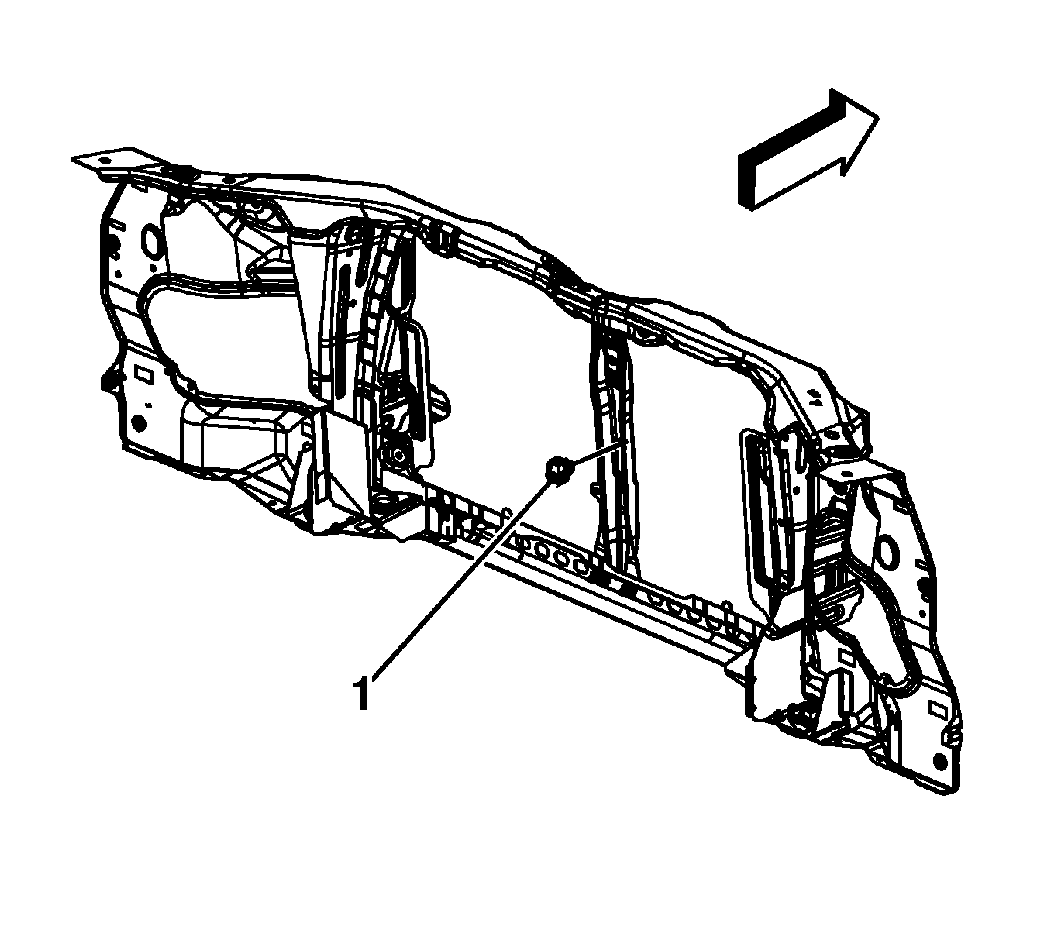

    Fig 1: View Of Ambient Air Temperature Sensor
    GM1276969Courtesy of GENERAL MOTORS CORP.
  1. Position the sensor (1) to the radiator support bracket.
    2. Fig 2: View Of Sensor Retaining Tabs
    GM1276973Courtesy of GENERAL MOTORS CORP.
  2. Install the sensor ensuring the retaining tabs (1) are fully seated to the radiator support bracket.
    3. Fig 3: View Of Ambient Air Temperature Sensor Electrical Connector
    GM1276971Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the ambient air temperature sensor.
  4. Install the air inlet grille. Refer to Grille Replacement in Exterior Trim.
